Apw cnc water jet cutting machine consists of four parts. Let's take a look!

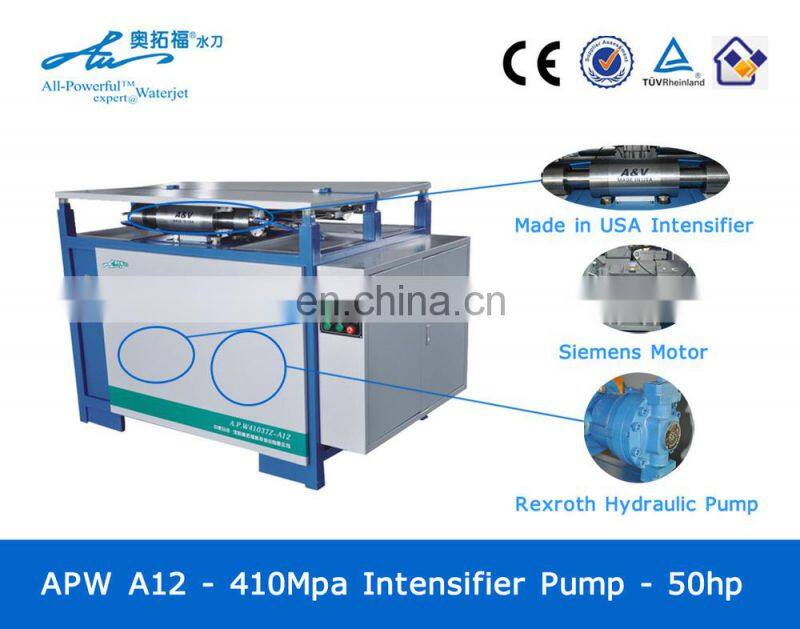

There are four parts in our water jet cutting machine.They are Intensifier Pump(Part A), Cutting table (Part B) ,CNC system(Part C) and Auto Abrasive Feeder (Part D).Firstly,Part A provides high pressure water to Part B through water tube.Then Part C provides abrasive to the Part B. Lastly,Part B processes the materials controlled by Part C.



Part B	Cutting Table
	Technical Information
	Model X-axis(mm) Y-axis (mm) Z-axis(mm)
	1520BA     1500       2000          150
	2015BA     2000       1500          150
	2030BA     2000       3000          150
	2040BA     2000       4000          150
	2060BA     2000       6000          150
	3020BA     3000       2000          150
	3040BA     3000       4000          150
	Cutting table can be customized as you requst.
	Feature

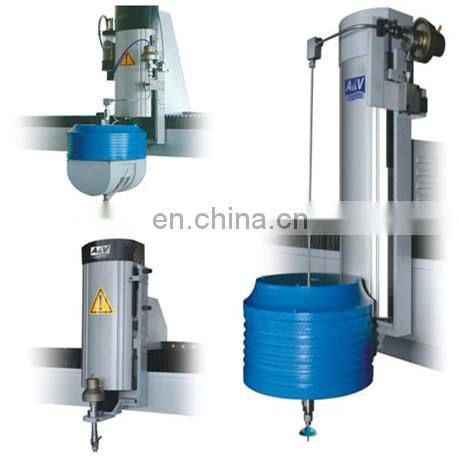

	Cutting Head               3-axis/4-axis/5-axis
	Structure                           Bridge
	Powe Supply               380V 50Hz 3 Phase
	Control Accur                     ±0.01mm
	Cutting Accurac                  ±0.1mm
	X,Y-axis Max. Moving Speed 6000mm/min
	Z-axis Max. Moving Speed    1000mm/min
	Nozzle diameter                 1.02mm
	Orifice diameter                 0.33mm
	Environmental Temp.          2-4°c
	Atmophere Pressure            86K-106Kpa

Part C	The CNC System
	15 Inch LCD Monitor
	Support DXF & NC Code File
	Resistance of the Shock and Electro-magnetic
	Based on Windows XP
	Dynamic Speed Control
	Optimized Piercing Control
	Dual-Pressure
	Travel Limit Protect
	Power-break Resume
	High precision Control
	Trouble Shooting Information
	Break restore, return

Part D	Auto Abrasive feeder
	Technical Information
	Max. Inlet Air Pressure       0.6Mpa
	Min. Inlet Air Pressure        0.2Mpa
	Abrasive Capacity               170kg
	Min. Inlet Air Flow             0.028m³/min
	Operating Air Flow             0.005m³/min
	Feature
	Self-feeding Control
	Air Valve to Prevent Jams & Breakages
	Self Sealing
	Self-absorbed Abrasive Delivery

   Comparing with other cutting methods, APW cnc water jet cutting machine owens any advantages! You can check if the waterjet cutting machine meets your requirement based on the chat below:

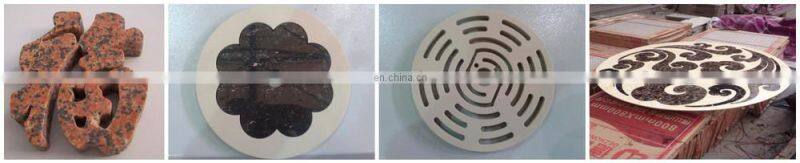

Stone

Comparing to traditional cutting tools and CNC machines, Apw waterjet cutting machine was widely used for cutting stone, such as marble, granite, ceramic, ect. APW waterjet cutting machine can pierce holes in most materials without a change in tooling. Futher more, we have successfully developed waterjet cutting machine with 4 axis linkage cutting head for marble pattern, especially for medallion. The 4 axis linkage series not only decrease the cost but also increase the productivity.

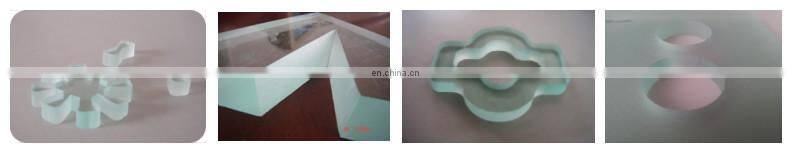

Glass

As glass is brittle and can't be cut by other cutting methods above, APW waterjet cutting machine allows users to pierce even the most delicate glass. Intricate cutting and shaping of glass is also easy with APW water jet cutting machine. Users from different industries have discovered APW waterjet cutting machine  versatility and cost- effective.
