Chongqing Gold Mechanical & Electrical Equipment Co., Ltd
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd is specialized in manufacturing and developing of Geophysical Exploration Instrument such as Resistivity Meter, IP Instrument, Resistivity Image, Seismic Instrument, Electromagnetic Instrument, Borehole Camera, Borehole Logging System, Water Level Meter; Borehole Drilling Equipment including Core/ Water Well/ Tunnel/ Engineering/ Anchor Drilling Rigs&Accessory and Geodetic Surveying Instrument(GNSS RTK System, Total Station, GIS Mapping and Echo Sounder.)

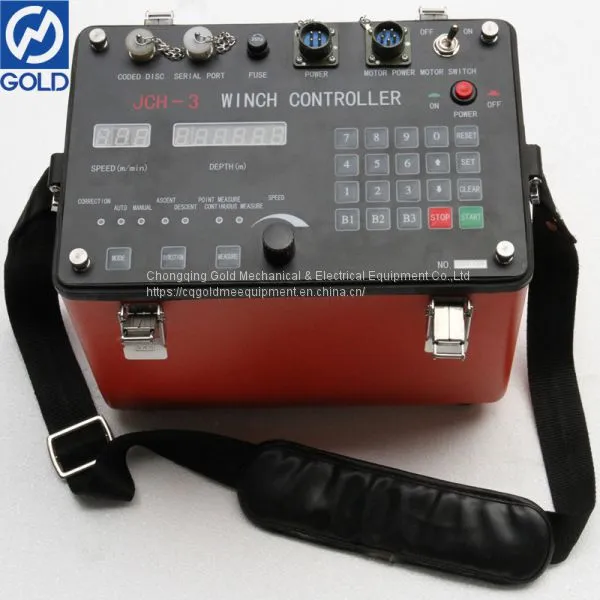

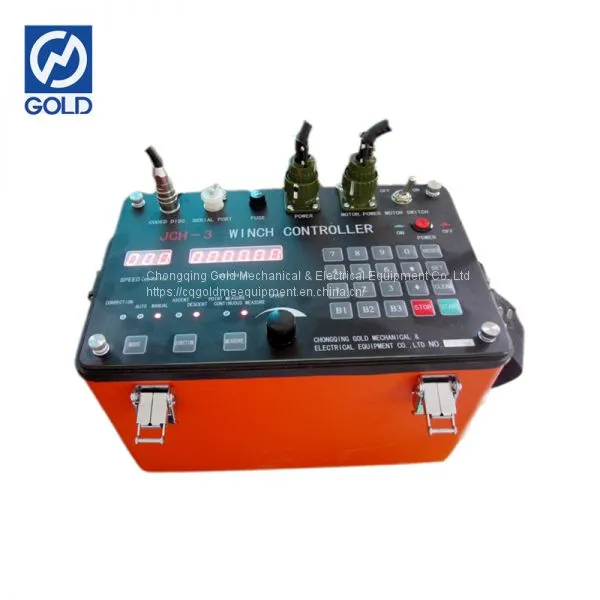

Integrated Intelligent Engineering Logging System Logging Winch Controller
Technical Specification
• 12bit A/D Conversion, Program-Controlled Magnification K=0.5~128
• Counting Channel: f≤500KHz
• Digital Signal Transmission Frequency: 9600bit/s
• Power Supply Cycle: 400ms
• Current: 2mA~500 mA Optional
• Signal Input Range: ≤±10V
• Continuous Working Time: ≤24 hr
• Power Consumption:
• Volume: 420×260×210mm,
• Weight:
• Working Temperature Range: -10℃~ +50℃
• Working Power Supply: AC220V±10% 50Hz ±5%
• Logging Speed: 0~30 m/min Adjustable (as per sampling interval)
About Product
Integrated Intelligent Engineering Logging System Logging Winch Controller
Applications & Features
• Coal Field Digital Integrated Logging.
• Hydrological Engineering Digital Integrated Logging.
• Solid Metal Ore Digital Integrated Logging.
• Other Minerals Digital Integrated Logging.
• External Laptop (Desktop PC).
• For upward logging, also for downward logging.
• Receive digital signal, analog signal.
• 8 taps of power supply current, Optional.
• Automatic sampling as per depth interval, sampling interval arbitrarily.
• Indoor simulation logging, repeatability observation of instruments and probes.
• Membrane panel, attractive and durable.
