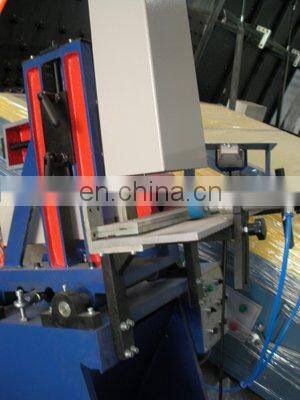

Automatic water groove millng machine for pvc window and door
Technical Data
Brand | sunny |
model | SCX01-1 |
condition | Brand new |
Machine type | pvc profile milling machine |
usage | Milling all kinds of water slots and air pressure balance groove |
certificate | CE ISO |
Air pressure | 0.4-0.6MPa |
Air consumption | 30L/min |
Input power | 380V 50HZ |
Total power | 0.50KWx2 |
Speed | 2500r/min |
Milling Depth | 40mm |
Diameter of milling cutter | 5mm /4mm |
Outside dimension | 2940*860*1660mm |
weight | 200kg |
Performance characteristic
The machine is specialized equipment processing all types of waterspouts and grooves for gas-pressure balance of plastic door and window. Its working parts can be controlled up and down, backward and forward to meet different profile bar; drilling and transverse milling can be once completed automatically; it has the characteristics of high efficiency and stable performance.
Related Machines
Cutting Saw | SJ02-3500 Double mitre saw for PVC profile |
SJ06-3700 Double mitre saw for aluminum and PVC profile | |
VJ02-65 PVC win-door V-cutting saw | |
SYJ03-1800 PVC win-door glazing bead saw | |
Welding Machine | SDH01-120 Single arbitrary angle welding machine |
SHZ2-120x3500 Two- head welding machine for vinyl profiles | |
SHZ3-120x3500 Three-head welding machine for vinyl profiles | |
SHZ4-120x4500 Four-head welding machine for vinyl profiles | |
SHP4-120x1800x3000 Four Point Welding Machine | |
Milling Machine | SZJ01 PVC win-door lock -hole processing machine |
DZX0-100 Single axis copying routing machine for PVC | |
SX01-100 Double axis routing machine for PVC profile | |
LXD01-80 End-milling machine | |
LXD02-200 End-milling machine | |
SFX01-160 PVC profile sealed cover milling machine | |
SCX01-2 Double axial automatic water groove milling machine | |
Cleaning Machine | SQJ01-120 PVC win-door corner cleaning machine |
SQJ05-120 PVC win- door V-corner cleaning machine | |
Bender | SYH-1800 PVC arch bending machine |
Remarks
Pkg: Each PC In Wooden Cases
Terms: Freight On Board (FOBQingdao)
From Qingdao, China To_______,
Delivery Time: During 30 Days After We Receive the deposit
Payment: Telex Transfer (T/T), 30% Be Paid After Confirming The Order and the rest 70% is effected while delivering the goods
Our Trademark: SUNNY
TEL:0086-531-66683398 66683798 Trademanager:cn1001524560
