Glass Tilting Table

                             Glass Tilting Table

Features

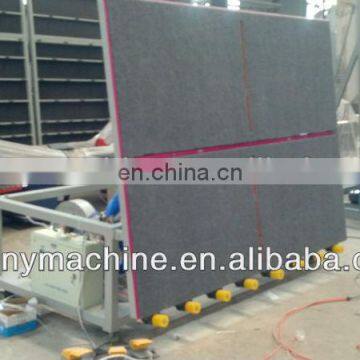

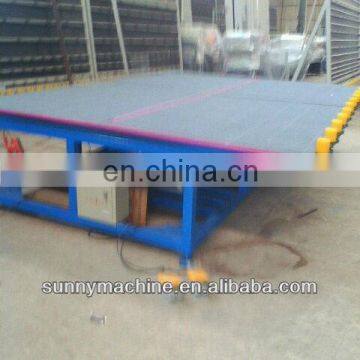

The glass tilting table is composed of air flotation table, “+” straight rod, air blower, air cylinder, hydraulic pressure station, electric cabinet, foot switch, etc. So it can tilt to pick up glass sheets from vertical position to horizontal position. On the working table, we can cut glass into pieces by hands. When splitting, put the cutting score of glass onto the middle part of the straight rod of the table, and close the air cushion, step the foot pedal down. The straight rod will be pushed upwards by the cylinder to break out the glass instantaneously. The table can break out glass in many positions, reducing the intensity of labor.

The machine has the functions of Glass Loading, Glass Breaking, Glass Tilting.

Technique Parameter

Other Related Machines for Glass Cutting

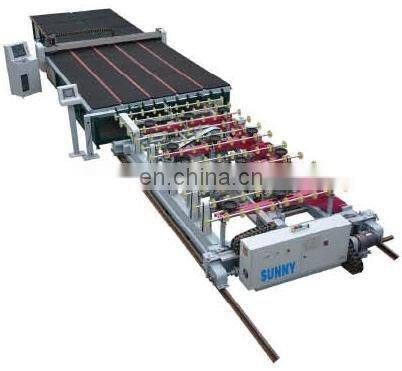

Glass Cutting Line

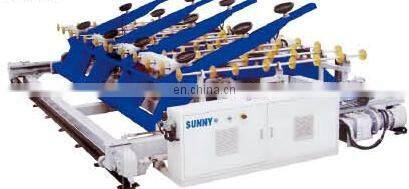

Glass Loading Machine

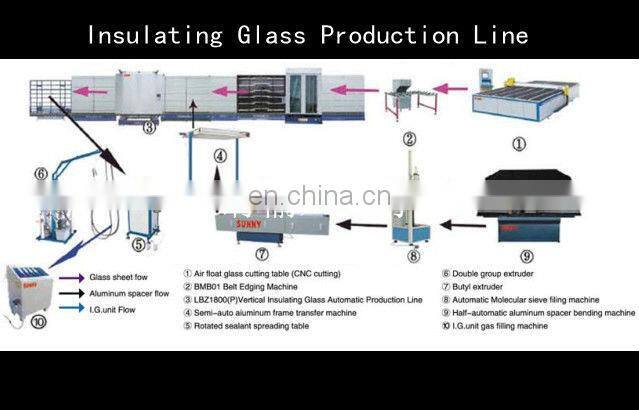

Other Related Machines for Insulating Glass

Guarantee & Aftersales service

 1.Guarantee the complete machine for one year, except the consumable parts.

 2.24hour technical support by email or calling.

 3.User-friendly english manual for machine using and maintaining.

 Remarks
