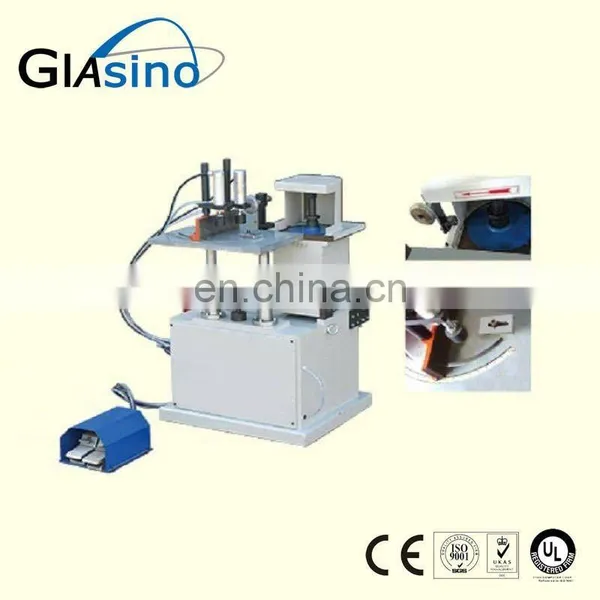

LXD-200 End Router
Feature:
1) End milling machine for aluminum and pvc window
2) For window mullion or screw connect window
3) Easy operation
4) Milling cutters customized
Characteristic
For alu-profile end milling
The end and the notch can be vertical or have some angles with the profile
The location panel has central criterion and angle scale for processing angle profile
Deep location plate with chamfering to prevent interface during return trip
Limit stop to prevent profile misplace
The work table can be adjusted upper and lower for different kinds of profile
Bi-directional valve controls the clamp and feed to reduce failure segment
Different profile different stroke to improve work efficiency
Have cutters safety shield
Technical parameter
Power Supply |
380V/50HZ |
Power input |
1.5 KW |
Air pressure |
0.5-0.8mPa |
Theoretical air consumption |
75L/min |
Process depth |
50mm |
Cutter diameter |
100~200mm |
Cutter axis diameter |
32mm |
Overall dimension |
730×900×1150mm |
