Product Description

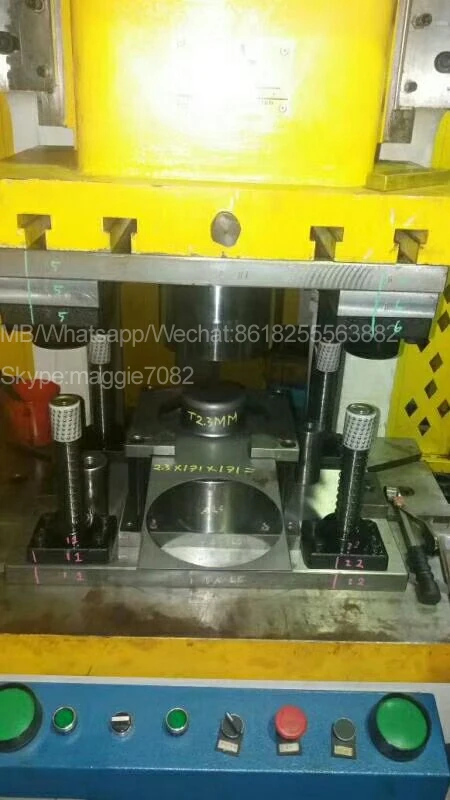

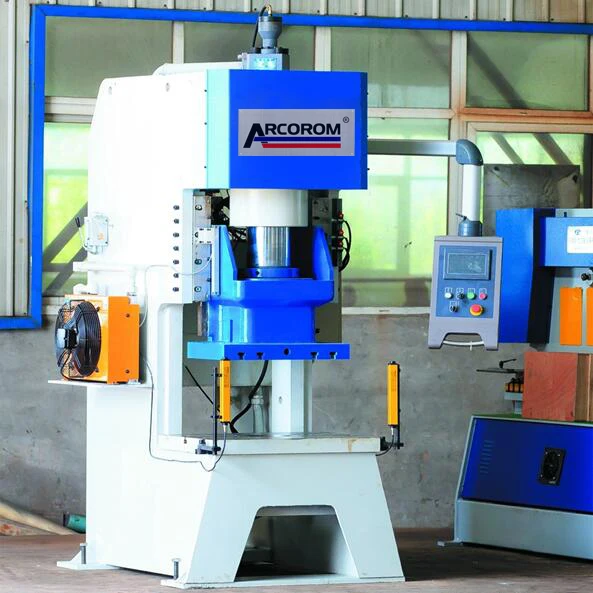

Y27Y Series hydraulic fast press is suitable for punching ,stretching and pressing of Plasticity materails.It can work as punching ,bending ,flanging of plate ,strectching and fine punching of sheet metal ,and cold extrusion of metal part.It can also used for calibration,press-in ,forming of grinding wheel ,press forming of plasticity products and powder products.
The machine uses hydraulic driving model and has the advantage if hydraulic press and mechanical press.Press force is changable.The overload will not happened in the machine.For the slider fast down and return ,it use speeding -up oil cyilders.The machine changed to slow working speed when reached the workpiece, which reduce the discharge if oil pump and motor power.
Photoelectric protection devices can be installed in front of the worktable .
Type |
63T |
80T |
100T |
125T |
160T |
200T |
250T |
|
Nominal Pressure (KN) |
630 |
800 |
1000 |
1250 |
1600 |
2000 |
2500 |
|
Stroke Adjuster (mm) |
10-120 |
10-140 |
10-150 |
10-150 |
10-180 |
10-200 |
10-200 |
|
Slipper max.stroke (mm) |
130 |
140 |
180 |
180 |
180 |
200 |
200 |
|
Loading Height (mm) |
160-270 |
180-280 |
200-320 |
220-320 |
260-420 |
280-430 |
280-440 |
|
The Number Of Trips (l/min) |
30-60 |
30-60 |
20-50 |
20-50 |
20-50 |
20-45 |
20-45 |
|
Speed To Quickly Move Downwards (m/s) |
220 |
220 |
210 |
250 |
230 |
240 |
240 |
|
Work Speed (m/s) |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
|
Back Stroke Speed (m/s) |
180 |
160 |
160 |
150 |
150 |
140 |
130 |
|
Workbench |
left and right (mm) |
650 |
760 |
820 |
840 |
940 |
940 |
1000 |
front and back (mm) |
450 |
500 |
580 |
580 |
700 |
750 |
800 |
|
blanking hole (mm) |
150 |
180 |
180 |
200 |
220 |
250 |
250 |
|
Throat Depth (mm) |
260 |
260 |
300 |
310 |
380 |
400 |
400 |
|
Slider |
front and back (mm) |
320 |
560 |
400 |
400 |
420 |
600 |
700 |
die handle (mm) |
50 |
60 |
60 |
60 |
70 |
70 |
70 |
|
left and right (mm) |
320 |
350 |
610 |
610 |
720 |
720 |
800 |
|
Motor Power (KN) |
5.5 |
7.5 |
11 |
11 |
15 |
15 |
22 |
|
Machine Dimensions |
left and right (mm) |
1250 |
1370 |
1350 |
1600 |
1700 |
1800 |
1900 |
front and back (mm) |
1450 |
1630 |
1630 |
1850 |
2000 |
2100 |
2200 |
|
height (mm) |
2270 |
2500 |
2600 |
3400 |
3500 |
3600 |
3750 |
|
height (mm) |
2270 |
2500 |
2600 |
3400 |
3500 |
3600 |
3750 |

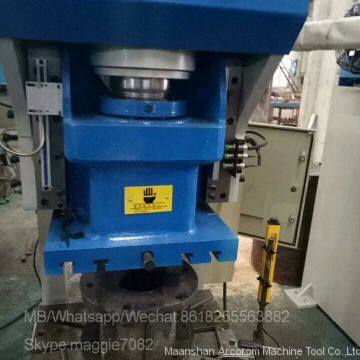

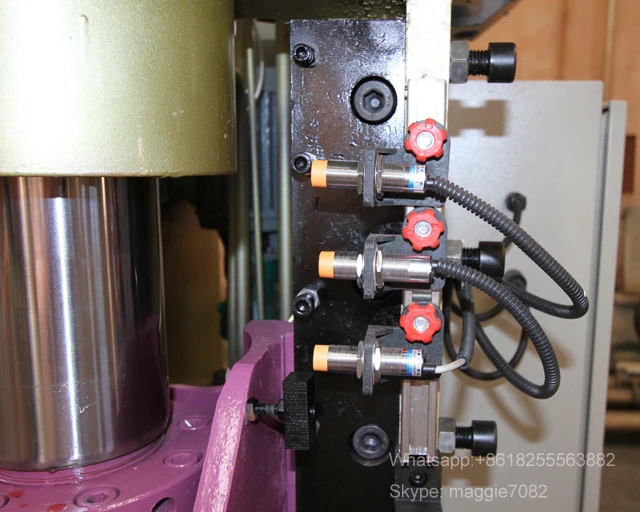

Limit switch of CNC hydraulic fast press machine

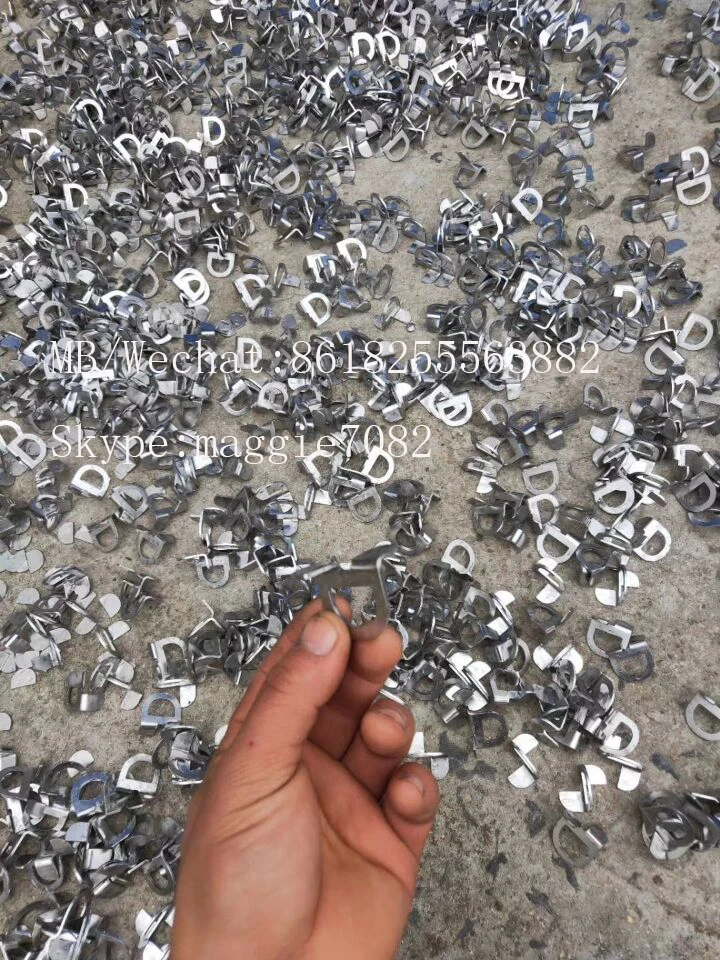

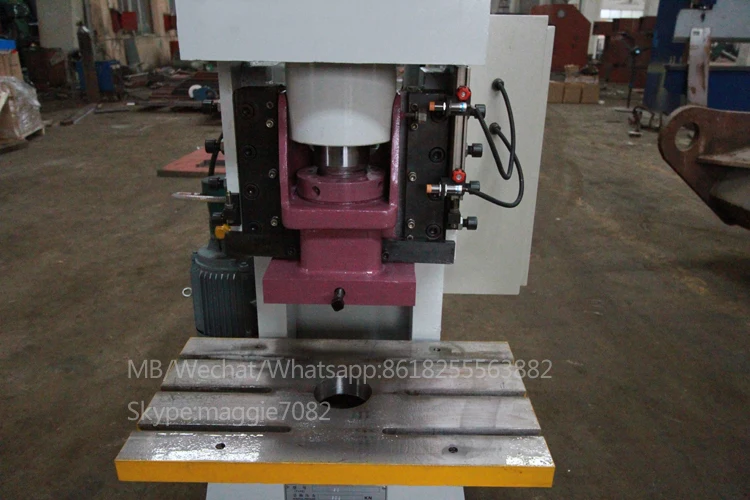

CNC punching machine for punching small parts

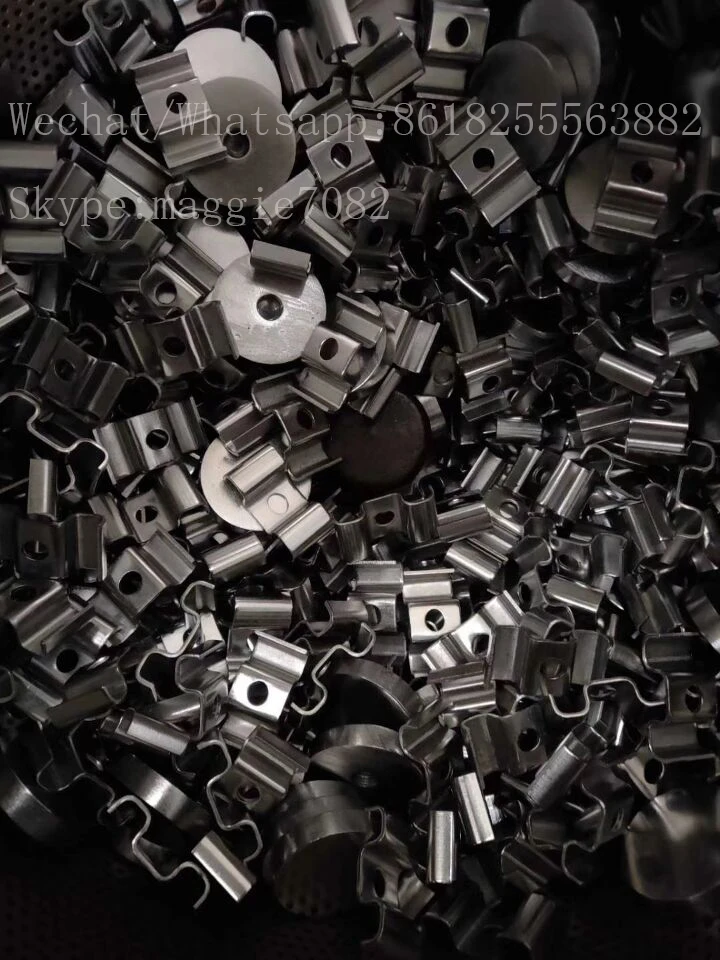

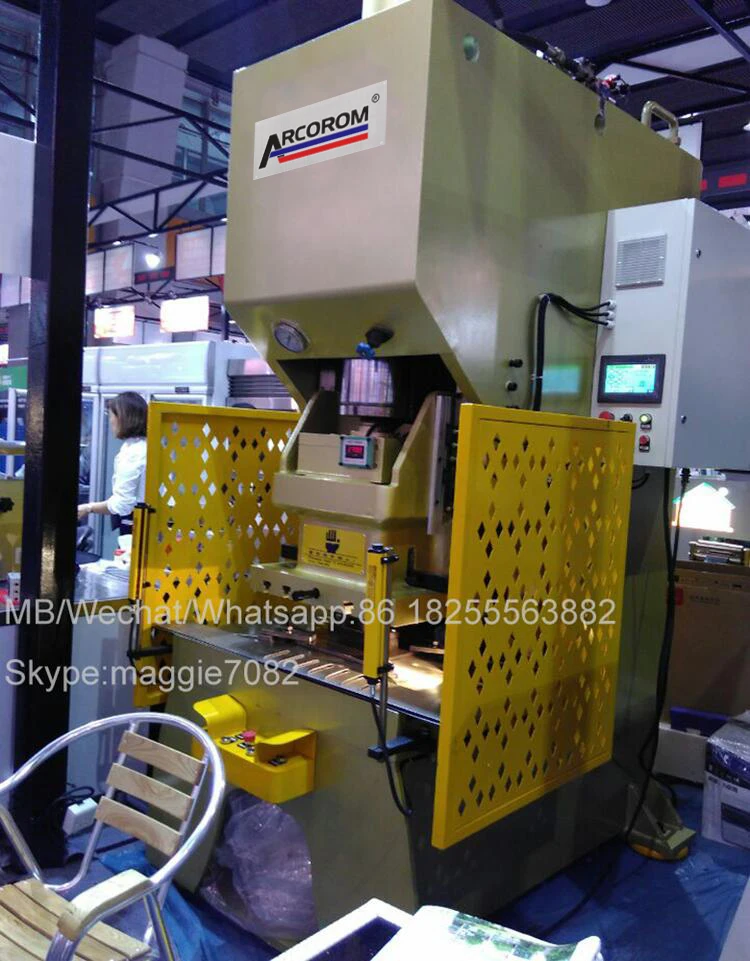

C frame press machine for hardware parts
Customized other models:

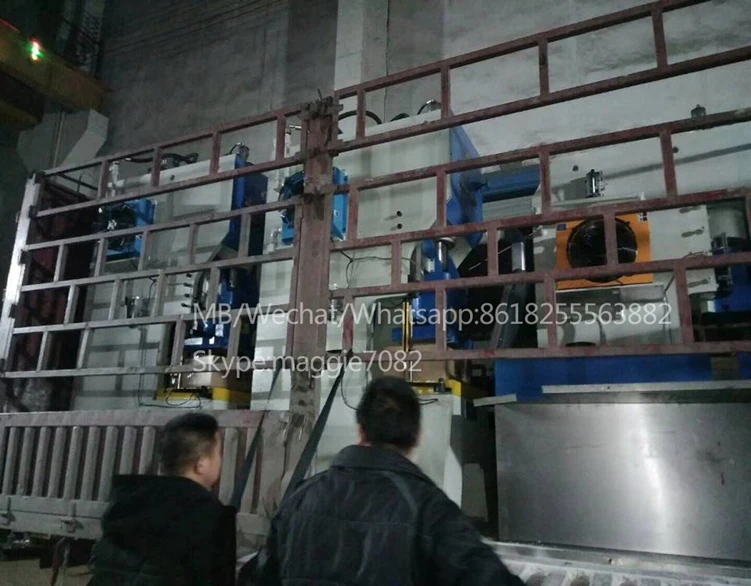

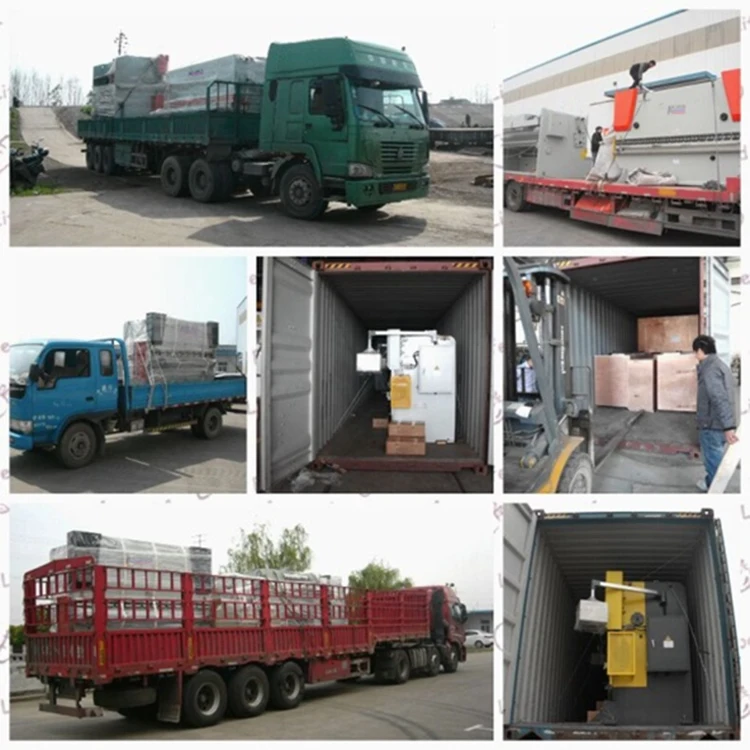

Packaging&Shipping
With more than 15 years exporting experience, we are so skilled for loading containers and packing the machines in container safely.

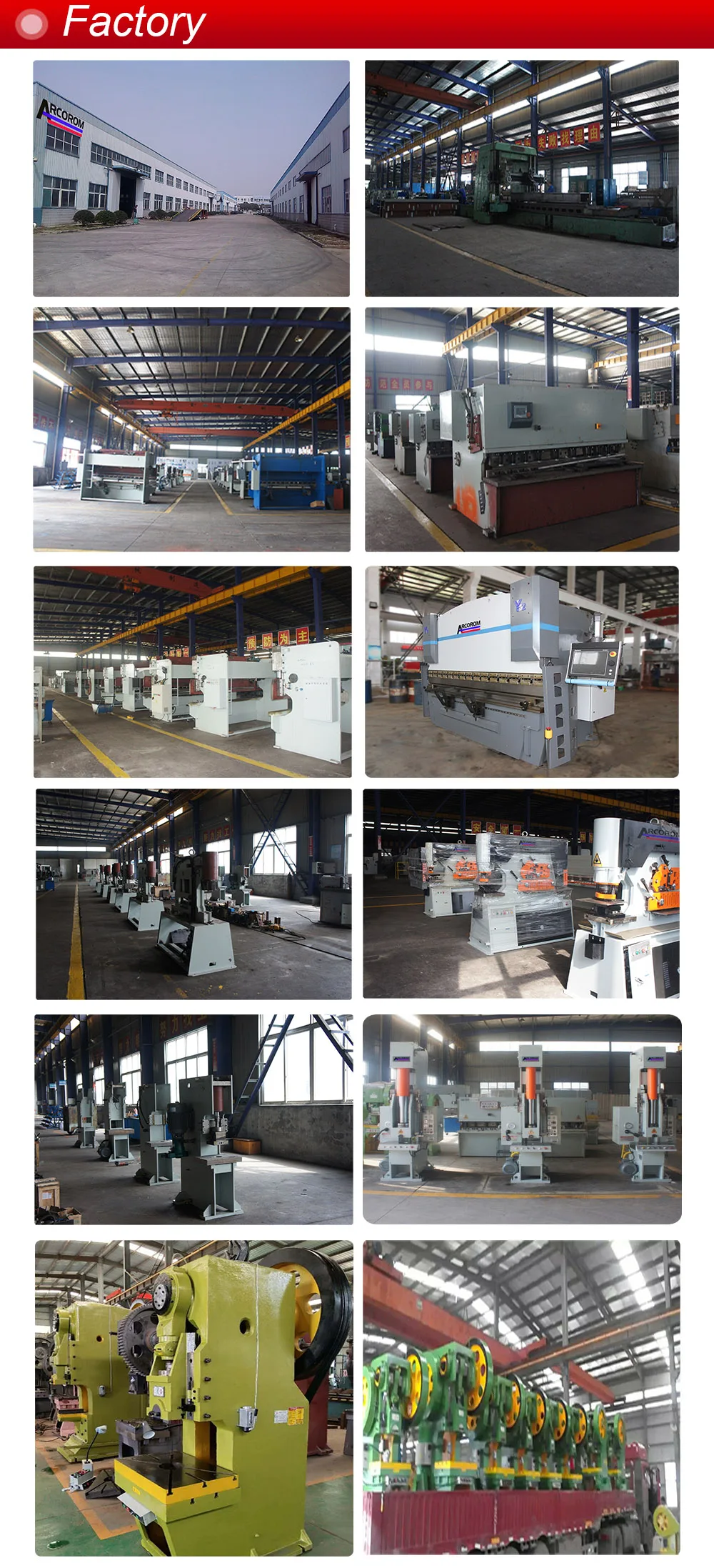

Company
Maanshan Arcorom Machine Tool Co.,Ltd was established in September 1999,
Located near Shanghai, China. We have four production plants for different machines and we
are supplying full range of steel working equipments: hydraulic punching machine, hydraulic
press brake, guillotine shear, plate rolls, ironworker, corner notcher, iron worker,press machine,baler,plate rolling machine,pipe bending machine,pipe bender,laser cutting machine,profile rolling machine,profile bending machine,cutting blade and moulds with different specification plus complete sets of accessories for motor vehicle industry,shipbuilding industry,railway,aviation,metallurgy,electric power,petrifaction,light industry,mine,decorate,construction,city planning for park.
In the past years, we are passionate about providing engineering excellence in everything we do. Arcorom is pursuing Quality, Reliability equipments and services to customers.
We use the latest control system to ensure highly efficient production, and the quality
assurance team measures and tests each component to ensure precision standards of
machined parts are met or surpassed. Finally, before delivery, each complete machine
goes through intensive quality and performance tests to make absolute sure it meets
our strict company quality standards before it arrives at the customer's operation
Why Choose US
Q1:How Can i calculate the Machine Capacity?
A: Just send me the Max thickness and Length .Engineer will tell us the capacity directly
Q2:How about the machine warranty?Is the whole machine?
A:We can offer one year warranty for the following parts :
--Hydraulic System with pump and Valve
--Hydraulic Cylinders
--Electric units
--Hydraulic Cylinders
--Gasket Ring( We will send you extra with the machine also )
--Tube Connector
--Control Button
--Limit Switch
--Controller
During the warranty period we provide any accessories for free
Q3: What is your MOQ?
A:To let more customer know our quality, we accepty trial order service,So the MOQ is 1 set.
Q4: what is your delivery time?
A:We supply prompt delivery time:30-35days.
Q5:What kind of Service does your company support?
A:Engineers Available to Service Machinery Overseas
