Home > Products > CCM Spare Parts > Parabolic Copper Mould Tubes for CCM
Parabolic Copper Mould Tubes for CCM
- Shanhai seaport
- T/T L/C D/P D/A
- 45 days
You May Like
Product Details
| Place of Origin | China | Model Number | 8454902100 | |
| Length | 600-1100mm | Thickness | 0.10-0.12mm | |
| Application | Other, continuous casting machinery | Outside Diameter | 100x100-650x650 | |
| Alloy Or Not | Non-alloy | Wall Thickness | 8-50 | |
| Elongation (≥ %) | 15 | Cu (Min) | 99.9% |
Product Description

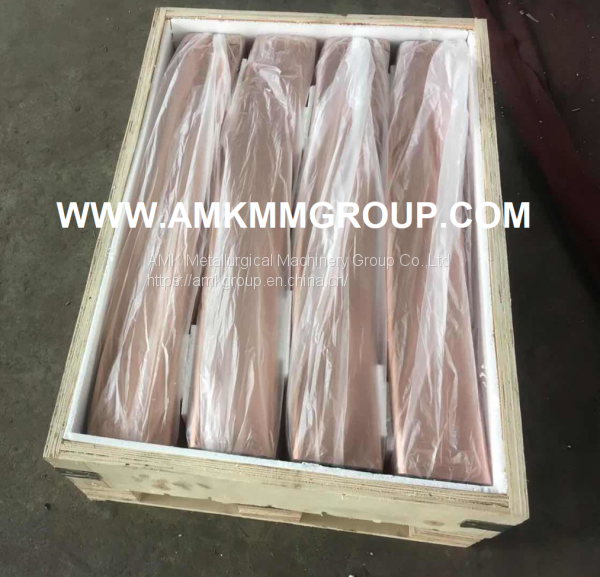

Copper mould tubes for CCM
Copper mould tubes are used as a cooling spare part for continuous casting machines.
1. Square copper mould tube
2. Rectangular copper mould tube
3. Round copper mould tube
4. Beam blank copper mould tube
5. Non-standard copper mould tube
Square Mould 50X50~650X650
Rectangular (100~500)X650
Round mould Ф110-Ф1500
Design with double taper, triple taper
Multi-taper, parabolic taper and various kinds of continuous taper
Non-standard mould
Beam blank mould
Material of CCM Copper Mould Tube：
The materials of copper mould tubes should be the ones with good tensile strength, fatigue strength, proper hardness, low elongation and high heat conductivity coefficient. As a result, material like phosphorous deoxidize copper （DHP）,CUAG，CR-ZR-CU are widely accepted by users of all countries.
| NO | Supply list details |
| Group | Continuous Casting Related |
| 1 | Copper Mould Tube |
| 2 | Mould Assembly |
| 3 | Cooling water jacket |
| 4 | Hydraulic cylinder |
| 5 | Spray spare parts |
| 6 | Continuous caster spare parts |
| 7 | Torch cutting machine |
| Group | Rolling mill Related |
| 1 | Cast Iron&steel rolls |
| 2 | Forged steel rolls |
| 3 | Tungsten carbide roll ring |
| 4 | Couplings |
| 5 | Gear shaft |
| 6 | Mandrel bars |
| 7 | Bearing related |
| 8 | Copper bushes |
| 9 | Casting wheel |
| 10 | Guide |
| 11 | Bearing products |
| Group | Graphite products |
| 1 | Graphite electrods |
| 2 | Reinforced graphite sheet |
| 3 | Carbon & graphite felts |
| 4 | Graphite degassing rotor |
| 5 | Magnesia carbon brick |
| 6 | Graphite Crucible |
| Group | Other Metallurgical Consumables |
| 1 | Oxygen lance pipes |
| 2 | Grate for incinerator |
| 3 | Slag Pot |
| 4 | Expendable thermocouple |
| 5 | Metallurgical Blades |
| 6 | EAF lid |
| 7 | Ceramic foam filter |
| 8 | Ingot mould |
| Group | Others |
| 1 | Mining related |
| 2 | Electroslag remelting mould |
| 3 | Ladle heater burner |
| 4 | Ladle heater |
| 5 | Flanges and pipe fittings |
| 6 | CNC cutting machine |
