Home > Industrial Equipment & Components > Valve > Ball Valve > 2018 Hand Free Sensor Activated Toilet Flusher Solenoid Control Solenoid Valve

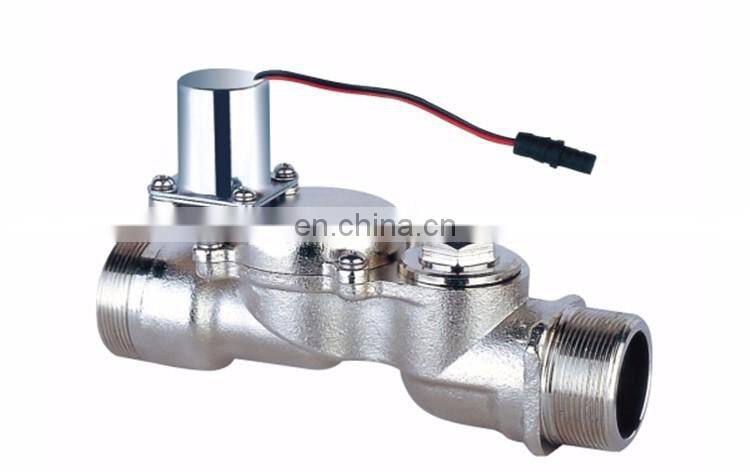

2018 Hand Free Sensor Activated Toilet Flusher Solenoid Control Solenoid Valve
US$ 7 - 16
MOQ: 200 Pieces
Key Specifications
Get Latest Price
Brand Name:
GEAGLE
Place of Origin:
Zhejiang, China
Model Number:
ZY-F06D
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2018 Automatic Soap Dispenser Sensor ControlUS$ 5 - 30MOQ: 600 Pieces -
DC 6V Sensor Control Automatic FaucetUS$ 5 - 30MOQ: 600 Pieces
-
Automatic Faucet Sensor ControlUS$ 5 - 30MOQ: 600 Pieces
-
2018 6V Automatic Faucet Power Sensor Solenoid Water Control ValveUS$ 5 - 30MOQ: 600 Pieces
-
Bi-Stable Solenoid Flush Valve Cylinder HeadUS$ 0.1 - 20MOQ: 1000 Pieces
Brand Name
GEAGLE
Place of Origin
Zhejiang, China
Model Number
ZY-F06D
Material
Brass
Application
General
Structure
Other
Standard or Nonstandard
Standard
Pressure
Low Pressure
Power
Hydraulic
Port Size
G1/2
Media
Water
Temperature of Media
Medium Temperature
| Model | ZY-F06D |
| Voltage | DC 4.5~6V |
| Switch | DC Pulsed |
| Pulse Width | ≥20ms |
| Water Temperature | 5~70℃ |
| Operating Pressure | 0.05~0.8Mpa |
| Water Flow Rate | 0.3Mpa ≥20L/min |
| Application | Kitchen, Bathroom, Hotel etc. |
| Usage | Stop and Strainer |
| Insulation Resistance | ≥100MΩ |
| Life Time | ≥500,000 cycles |
| Certification | CE |
| Dielectric Strength | Can withstand voltage 1000v 50Hz within 1 minute, without dielectric breakdown and flashover. |

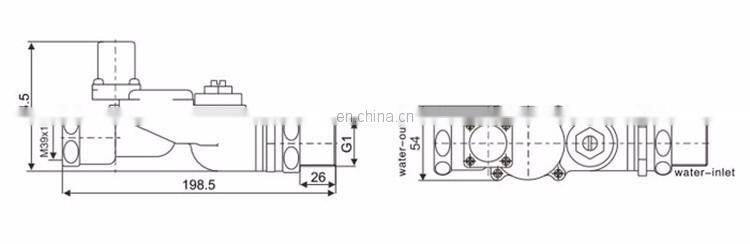

Owverall Dimensions
More Product
Certifications
Four Core Technologies Of Intelligent Sanitary Ware
Company Information
FAQ
Q: Are you one factory or one trading company?
A:Factory
Q:How about the area of your factory?
A: over 5,000 square meters
Q:How many skilled workers do you have ?
A:80- 100
Q:What about your advantage?
A:15-year experience in devotion to intelligent sanitary wares only Strong R&D team, self-designed and self-developed 4 different kinds of core components Quality control exactly and strictly conforms to ISO9001 standard
Q: What kind of certificates to you have ?
A: ISO9001:2000, CE, ROHS, Letter of Patent.
Q: How about your delivery time?
A: In stock: 7-10 days after down payment; Out of stock: Normally 30-45 days
Q: Do you accept OEM/ODM?
A: Yes
