Minew I6 Tiny Beacon Ibeacon Immediate Near Far Support Indoor Location Solution
US$ 3 - 6.9
MOQ: 3 Pieces
Key Specifications
Get Latest Price
Brand Name:
Minew
Place of Origin:
China
Model Number:
I6
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Apples Ibeacon &eddystone Beacon Sticker Tag at Factory Direct Price Minew I6US$ 3 - 6.9MOQ: 3 Pieces -
Hot Selling Sticker Ibeacon in Square Shape Minew I6US$ 3 - 6.9MOQ: 3 Pieces
-
Smart Beacon Customzied Ibeacon White Brand Minew I6US$ 3 - 6.9MOQ: 3 Pieces
-
Ibeacon With SDK Supporting IOS &Android and Configuration APP BeaconSET Minew I6US$ 3 - 6.9MOQ: 3 Pieces
-
Nrf 51822 Ibeacon Scanned by Ble Beacon Receiver for IOT Solution Minew I6US$ 3 - 6.9MOQ: 3 Pieces
Brand Name
Minew
Place of Origin
China
Model Number
I6
Bluetooth 4.0 iBeacon itag Nordic nrf51822 Beacons i6

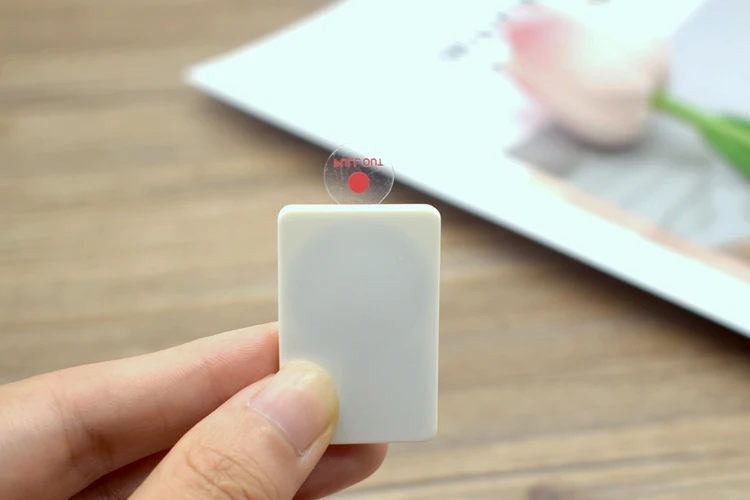

i6 is a BLE (Bluetooth Low Energy / version smart 4.0 / 2.4GHz) Beacon with smallest size. Cover the range to 50m and reduce the power comsuption to 35uA average only
As it is an active tag, it is battery powered and been developed to work with iOS 7.0 and Android 4.3+System competible.
It will always broadcast the iBeacon frames like UUID, Major, Minor, you could set those parameters as well as transmission power, broadcast internal ... via our comfiguration APP " BeaconSET ".
As it is an active tag, it is battery powered and been developed to work with iOS 7.0 and Android 4.3+System competible.
It will always broadcast the iBeacon frames like UUID, Major, Minor, you could set those parameters as well as transmission power, broadcast internal ... via our comfiguration APP " BeaconSET ".
Technical Datas:
Working frequency: ISM frequency 2.400~2.483GHz
Broadcast range: 100m max
Battery capacity: 6 months
SDK: available
Average power consuption: 35uA
Advantages:
Square shape, 3.3mm thin
Standard iBeacon protocol, UUID, Major, Minor
Accurate locating.
Use low power consumption chipset nRF51822 with Cortex -M4F CPU
Excellent security mechanism
Support the customized service such as firmware, logo and other
Working frequency: ISM frequency 2.400~2.483GHz
Broadcast range: 100m max
Battery capacity: 6 months
SDK: available
Average power consuption: 35uA
Advantages:
Square shape, 3.3mm thin
Standard iBeacon protocol, UUID, Major, Minor
Accurate locating.
Use low power consumption chipset nRF51822 with Cortex -M4F CPU
Excellent security mechanism
Support the customized service such as firmware, logo and other
Electronic parameters
Item | Value | Remarks |
Case color | White | Other colors can be customized |
Battery Model | CR2016 | 1pc CR2016 coin battery, 3.0V |
Operation voltage | 1.8-3.6V | DC |
Transmission circuit | 10.5mA (Max.) | Tested at 0dBm transmission power |
Transmission range | 50meters | Maximum |
Antenna | 50ohm | On board / PCB Antenna |
Accessories | Double adhesive | 1pc, high strength, 3M brand |
Net weight | 4.0g | With battery |
Size | 32x23x 3.3 mm | Null |
Bluetooth 4.0 iBeacon itag Nordic nrf51822 Beacons i6
Accurate Indoor Location
--i6 is able to detect distance even calculate its position within the range.
Asset Tracking
--i6 eddystone/ibeacon broadcasts and transmits 2.4GHz radia signals at the regular and adjustable intervals.
Logistics Management
Commercial Advertising
--For traditional offline retailers, engage your customers and visitors through context based and personalized advertising.- Optimize shopping experience.
--i6 is able to detect distance even calculate its position within the range.
Asset Tracking
--i6 eddystone/ibeacon broadcasts and transmits 2.4GHz radia signals at the regular and adjustable intervals.
Logistics Management
Commercial Advertising
--For traditional offline retailers, engage your customers and visitors through context based and personalized advertising.- Optimize shopping experience.
You could also use this product together with our IoT gateway G1. G1 is designed as a cloud service and it coud collect the data signal broadcasted from the i6 beacon and then store the data for deployers' later use.
Company Information
Our Advantages
1. we have our own hardware,mechanical, firmware design team, iOS&Andorid application development and Cloud platform development.
For OEM project, we have owned rich experience for the past years and can support related technical support and keep you updated the latest technology.
2. We have own SPC production control system, all the product are 100% test and 100% inpection before delivery
3. We have own factory and plenty of production line, the flexibility production capacity is 20K per day, the fast delivery time is assured.
4. Our strategic partners include Google, ARM,Nordic and some other big company who focus on IOT
5. Our R&D engineers are professional in software and hardware developing, including cloud and data management, mobile internet development, embedded software techniques, RFID and product structure designing.
Certifications
APPLE iBeacon MFi certification, BQB/FCC/CE certification Approved by the Ministry of industry and Information Technology of P.R China to ensure the use of legal and safe places of public places.
Packing & Delivery
Delivery
For samples: we would send samples via DHL Express within about 2 days after payment, then you would receive them in about 4 to 5 days.
For orders: bulk orders usually take about 2 to 3 weeks after payment received
For orders: bulk orders usually take about 2 to 3 weeks after payment received
FAQ
Q1: Do you provide the technical support to the developers?
A: SURE. The following technical data and documents will be provided.
1. SDK 2. API 3. Demo APP 4. Configuration APP 5. Instructions
Q2: Can we brand your product with our company LOGO?
A: Yes, We offer the OEM/ODM service.
Q3: How can we get the samples to test?
A: You can confirm the order on Alibaba or contact us to pay it via Paypal , samples can supply from stock. you can receive the samples within 3-4 days after you pay it.
Q4: Do you have any certificats?
A: Yes, we have CE, RoHs, and FCC for all of our products.
Q5: What's the warranty of the product?
A: we supply 1 year warranty from the shipping date, any damage caused during the production would be replace by a new one.
A: SURE. The following technical data and documents will be provided.
1. SDK 2. API 3. Demo APP 4. Configuration APP 5. Instructions
Q2: Can we brand your product with our company LOGO?
A: Yes, We offer the OEM/ODM service.
Q3: How can we get the samples to test?
A: You can confirm the order on Alibaba or contact us to pay it via Paypal , samples can supply from stock. you can receive the samples within 3-4 days after you pay it.
Q4: Do you have any certificats?
A: Yes, we have CE, RoHs, and FCC for all of our products.
Q5: What's the warranty of the product?
A: we supply 1 year warranty from the shipping date, any damage caused during the production would be replace by a new one.
