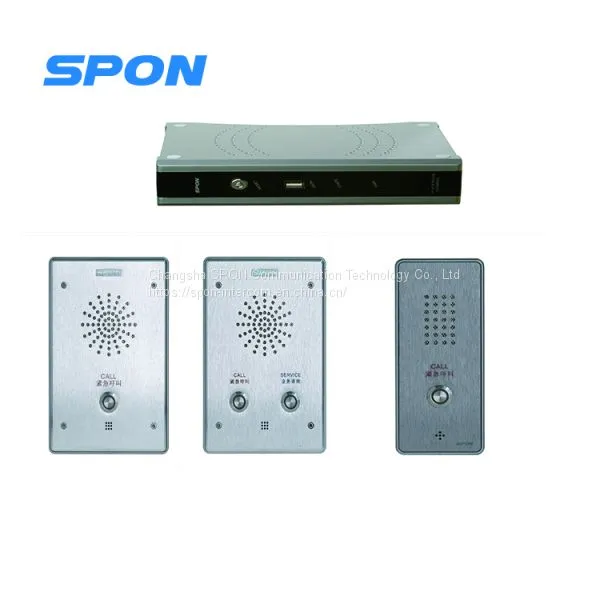

Help CenterNAS-8521A/B/C/E IP INTERCOM TERMINAL
Related Products
PURPOSE：
It`s for the calling for help and deterrent talking in the self-service area of the bank especially.
FEATURES：
1.With the unique split design of the terminal and the panel to avoid the exposure of the network line in the user area, which will ensure the safety of the network in banks;
2.The terminal to simultaneously drive 16 panels , the connection of which reaches a length of 300 meters hand in hand; Calling the nearest can be satisfied when there are many ATMs belonging to one self-service bank.
3. The functions of the Terminal:
A). With a REC port for audio recording by DVR; with 2 alarm inputs and 2 alarm outputs ;
B). Supportive of the SD card whose audio files can be locally or remotely triggered to play (such as the notification of the safe withdrawal) and remotely updated.
C). With 2x10W digital amplifier module for option; available to connect with the external speakers to play the background music.
D). With a standard RJ45 interface supportive of crossing network segment and router, accessible to the system if the Ethernet is available.
4.The functions of the panel:
A). With a single-call-key (emergency) and a double-call-key (emergency + consulting) for option.
B). With a metal casing along with equipment against puncture; the installation options of being concealed or surface-mounted; with the functions to alarm the dismantling and to be waterproof IP 54.
C). Press the call button to make a full-duplex-speaking. (pre-set the target on the server);
D). With the setting of the ring back tones as well as the voice prompts of the “ call through, call busy and hang up”;
E). Automatic audio patrol and cycled monitoring are available for panel.
F). With a built-in 3W speaker and microphone, available to make a hands-free call and receive the broadcast.
SPECIFICATIONS
NAS-8521A | |
POWER SUPPLY AND CONSUMPTION |
DC 12V ≤23W |
NETWORK PROTOCOL |
TCP、UDP、ARP、ICMP、IGMP |
NETWORK CHIP RATE |
10/100Mbps |
AUDIO SAMPLING & BIT RATE |
8kHz～44.1kHz, 16bit, 8kbps-320kbps |
INTERFACE |
1 RJ45 In, 1 panel out, 1 Line out, 1 Record out, 2 Alarm in, 2 Alarm out, 1 SD Card |
WORKING TEMP& HUMIDITY |
NAS-8521A: -10℃～70℃, ≤90%RH (Not condensing) NAS-8521B/C/E:-20℃～70℃, ≤90%RH (No condensation of moisture) |
DIMENSIONS & WEIGHT |
NAS-8521A:210x155x45,0.5kg NAS-8521B/C:115x166x32,0.8kg NAS-8521E:67x155x30,0.3kg |
