Home > Industrial Equipment & Components > Industrial Ceramic Products > Ceramic Insulator > Hot Sales 240v 230w MCH Alumina Pellet Stove Ceramic Igniter

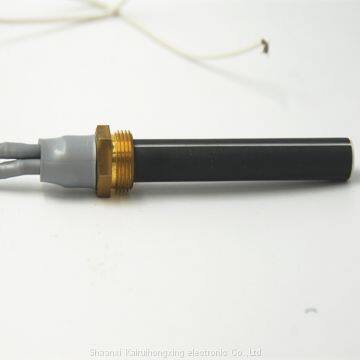

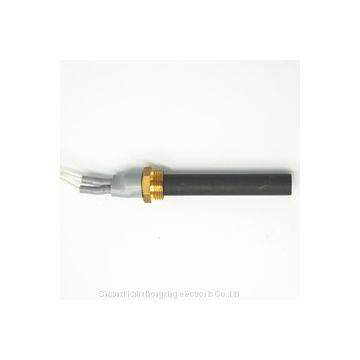

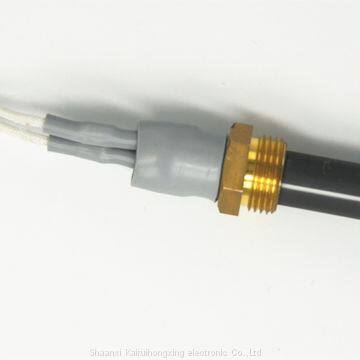

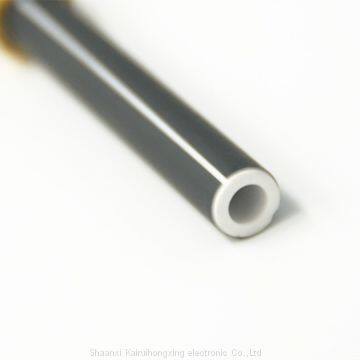

Hot Sales 240v 230w MCH Alumina Pellet Stove Ceramic Igniter
US$ 7 - 10
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Brand Name:
krhx
Place of Origin:
China
Model Number:
11.5*93mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Xi;an
Delivery Detail:
15 days
Related Products
-
Manufacturer Wholesale MCH Heater Ceramic Igniter For Woodwind Pellet GrillUS$ 7.1 - 10MOQ: 100 Pieces -
Factory High Property MCH Ceramic Pellet Igniter For Oven BurnerUS$ 8 - 10MOQ: 100 Pieces
-
Industrial High Quality Metal Ceramic Igniter Rod For Wood Pellet BurnerUS$ 6 - 10MOQ: 100 Pieces
-
220V 400W MCH Ignition Electrodes Ceramic IgniterUS$ 7 - 10MOQ: 100 Pieces
-
Portable Ceramic Ozone Plates Incorporated Ozonizer For Air PurifierUS$ 13.3 - 16.2MOQ: 100 Pieces
Brand Name
krhx
Place of Origin
China
Model Number
11.5*93mm
Material
Alumina
Type
Electrothermal Ceramics
Model Number:11.5*93mm Application:Pellet Stove
Shape:Tube Voltage(V):240v
Power:230w±7% Warranty:3year
Working time:10000(h) Flange:Brass or Ceramic
Temperature:900-1000℃ Time to ignition:40-90 seconds
MCH ceramic Igniter.
MCH is metal ceramics heater the "make, meaning is metal ceramic heating element. MCH refers to the design of metallic tungsten or molybdenum manganese with high melting point metal heating resistance Slurry required printing to be printed in 92 ~ 96% of alumina casting ceramic tiles, after hot-pressing laminated, then protect the atmosphere at about 1600 ℃, ceramics and metals jointly sintered and made of ceramic tiles, with corrosion resistance, high temperature resistance, long life, efficient energy saving, uniform temperature, good thermal conductivity, the speed of Heat Compensation is fast and so on, and it does not contain lead, cadmium, mercury, chromium, more, more, etc. matter, comply with environmental requirements such as EU rohs and other environmental protection requirements.
Specifications
* Substrate: White multi-layer alumina ceramics
* Lead: In a ф 0. 5mm of Nickel wire(The length depends on the customer).
* Casing, tape: Teflon, high temperature resistance to high temperature
* Resistance: high temperature materials such as tungsten, etc.
* Product thickness: 0.7 ~ 2.0. Customizable
MCH is metal ceramics heater the "make, meaning is metal ceramic heating element. MCH refers to the design of metallic tungsten or molybdenum manganese with high melting point metal heating resistance Slurry required printing to be printed in 92 ~ 96% of alumina casting ceramic tiles, after hot-pressing laminated, then protect the atmosphere at about 1600 ℃, ceramics and metals jointly sintered and made of ceramic tiles, with corrosion resistance, high temperature resistance, long life, efficient energy saving, uniform temperature, good thermal conductivity, the speed of Heat Compensation is fast and so on, and it does not contain lead, cadmium, mercury, chromium, more, more, etc. matter, comply with environmental requirements such as EU rohs and other environmental protection requirements.
Specifications
* Substrate: White multi-layer alumina ceramics
* Lead: In a ф 0. 5mm of Nickel wire(The length depends on the customer).
* Casing, tape: Teflon, high temperature resistance to high temperature
* Resistance: high temperature materials such as tungsten, etc.
* Product thickness: 0.7 ~ 2.0. Customizable
Main Features
* Small size, light weight and energy-saving
* Superior thermal properties, Rapid heating, Custom-designed temperature distribution, Excellent insulation
* High reliability: Superior voltage resistance and electrical resistance, No electric noise
* Small size, light weight and energy-saving
* Superior thermal properties, Rapid heating, Custom-designed temperature distribution, Excellent insulation
* High reliability: Superior voltage resistance and electrical resistance, No electric noise
* Security is not charged surface, insulation performance is good, can endure the withstand voltage of 4500v / 10s test, no breakdown, leakage current
* No impact current peak;
* Heating up fast;
*Without power attenuation;
* Long service life.
Application
* Wood pellet burner /Wood chips burner /Straw burner /Other biomass burner;
* 3D prinert
* Industrial drying equipment, electric Bonding liquid heater;
* Medical devices and other precise instrument.
