more than 10 years experiences in steel business , our main product prapainted galvanized steel coil,Galvanized Steel coil, PPGI/GI/PPGL/GL,Corrugated Sheets

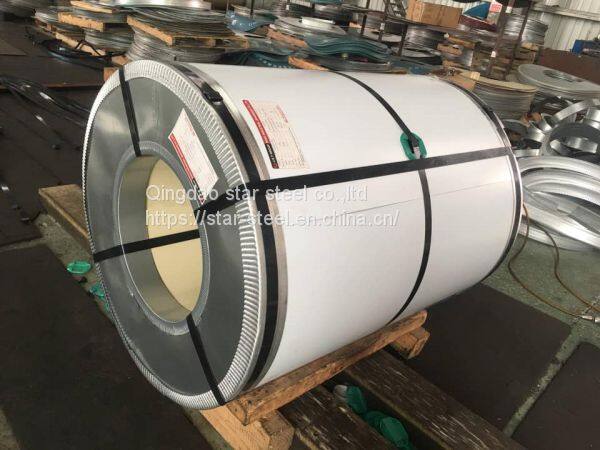

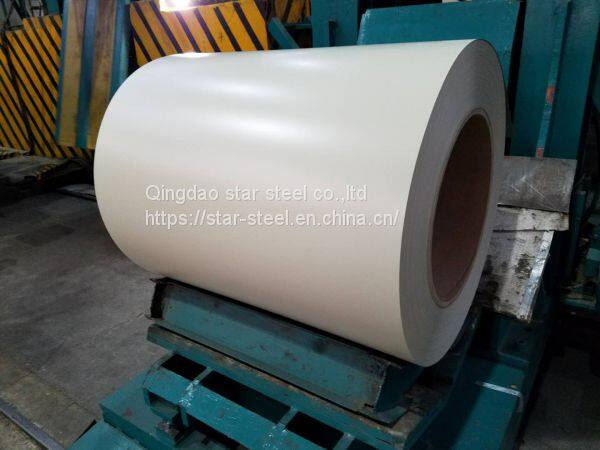

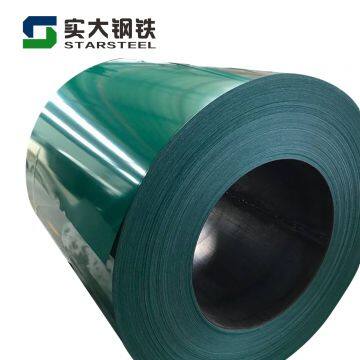

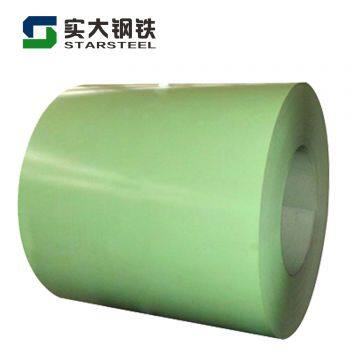

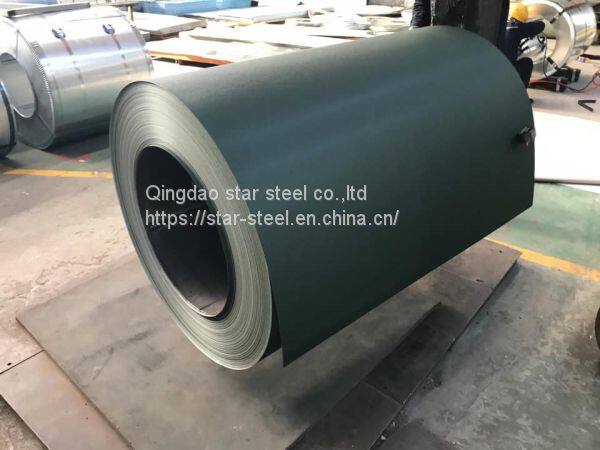

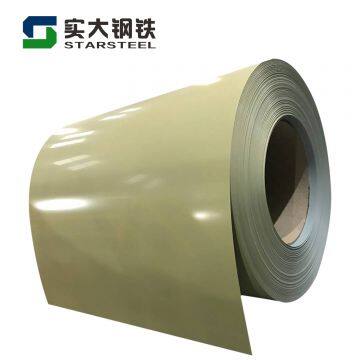

| Name | Prepainted Galvanized/Galvalume Steel Coils | |
| Type of substrate | Hot dip galvanized, Galvalume, Electro galvanized,Zinc alloy, | |
| Cold rolled steel, Aluminium | ||
| Thickness | 0.12-1.20mm | |
| Tolerance | Thickness: ± 0.01mm | |
| Width | 600-1250mm ( Normal:1250, 1200,1000,914 mm) | |
| Top Paint | 10-25 micron(Normal:10-12mic) | |
| Back paint | 5-12 micron(Normal:5-7mic) | |
| Coating | Zn coating | AZ coating |
| 30-275gsm | 30-275gsm | |
| Coil weight | 3-9 tons or as your requirement. | |
| ID | 508/610 mm | |
| Grade | Galvanized | Galvalume |
| SGCC/DX51D+Z, DX52D+Z, | DX51D+AZ, DX52D+AZ, DX53D+AZ, | |
| SGCD/DX53D+Z,SGCE/DX54D+Z, | DX54D+AZ,SGLCC,SGLCD,SGLC4 | |
| SGCH....... | 40,SGLHC........ | |
| Coating type | Top paint: PE, SMP, HDP, PVDF, PU | |
| Functions: Decorative, Machinability, Weather resistance, Scrath | ||
| resistance, Stain resistance, Chemical resistance, Adhesion resistance | ||
| Primer paint: Polyurethane, Epoxy, PE | ||
| Functions:Machinability, Corrosive resistance, Adhesion, Scrath | ||
| resistance | ||
| Back paint: Epoxy, Modified polyester | ||
| Functions: Scrath resistance, Bending adhesion, Corrosive resistance | ||
| Type of coating process |
Front: Doulbe coated & double drying | |
| Back: Double coated & double drying, single coated & double drying | ||
| Double coated & double drying is used for corrugated sheet | ||
| Double coated & single drying is for sandwich panel | ||
| Packing | Standard export package .Plastic film in the first layer,second layer | |
| is Kraft paper. Third layer is galvanized sheet. | ||
| Application | Building industry ,structural use, roofing, commercial use ,household | |
| appliance, industry facilities, office buildings | ||
Main Features
1) Anticorrosive:13 years in heavy industrial areas, 50 years in the ocean, 104 years in the suburbs and 30 years in cities.
2) Cheap:The cost of hot-dip galvanizing is lower than that of other coatings.
3) Reliable :The zinc coating is metallurgically bonded to the steel and forms part of the steel surface, so the coating is more durable.
4)Strong toughness:The galvanized layer forms a special metallurgical structure that can withstand mechanical damage during transportation and use.
5) Comprehensive protection:Every part of the plated piece can be galvanized, and is fully protected even in depressions, sharp corners, and hidden places.
6)Save time and energy:Galvanizing process is faster than other coating methods.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment
If you have another question, pls feel free to contact us as below:
Q -Can you accept the order of customzied?
A -Yes, we assure.
Q-.What's your capacity of production?
A-We can guarantee to produce 30,000mt per month, and delivery 25000mt per month.
Q-.What's certificate can you provide?
A-We can provide SGS,ROHS,FDA,CE, or according to customer requirement .
Q-.Will you allow us to visit your office or factory ?
A-Sure, welcome all clients to visit our factory and office for fruitfull cooperation.
