Home > Products > Automotive Connector - PCB Header > 3-174151-2 TYCO AMP TE Automotive Wire Connector 64 Pin PCB Header Connector

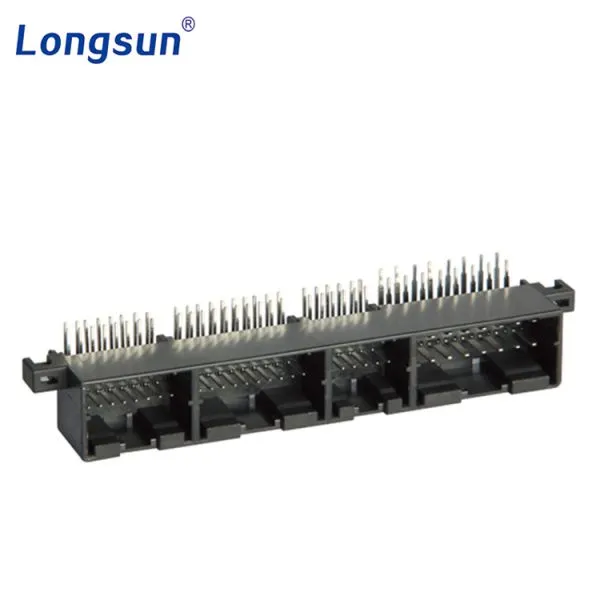

3-174151-2 TYCO AMP TE Automotive Wire Connector 64 Pin PCB Header Connector
- 5000000 Piece / Pieces per Month
- Shanghai, China
- T/T L/C PayPal Other
- 7 days
- 917535-1 TYCO AMP TE Automotive Wire Connector 14 Pin PCB Header Connector
- 175974-2 TYCO AMP TE Automotive Male Wire Connector 12 Pin PCB Header Connector
- 353105-2 TYCO AMP TE Automotive Wire Connector 24 Pin PCB Header Connector
- 175615-2 TYCO AMP TE Automotive Male Wire Connector 16 Pin PCB Header Connector
- TYCO AMP TE PCB Headers 175506-2 Auto 6 Pin Automotive Connector
- 174044-2 TYCO TE AMP 8 Pin Automotive Cable Connectors Female Socket Housing
Product Details
Brand Name: | Longsun | Place of Origin: | China | Model Number: | 3-174151-2, 25011-64AW-2 |
Type: | Other | Application: | Automotive | Gender: | Male |
Product Description
3-174151-2 TYCO AMP TE Automotive Wire Connector 64 Pin PCB Header Connector
Part Number | 25011-64AW-2 |
Compatible with TE P/N : | 3-174151-2 |
Nos. of Position : | 64 |
Pitch (mm) : | 2.50, 3.80 |
Mouting Type: | Horizontal / 90° |
Number of Rows : | 2 |
Sealable | No |
Colour : | Black |
Body Material : | PBT Resin |
Contact Material: | Copper Alloy, Tin plated |
Tab Width (mm) : | 1.0, 1.80 |
Tab Thickness (mm) : | 0.64 |
Current Rating : | 5A+10A |
Operating Voltage (VDC) : | 12 |
Working Temperature: : | -40°C-125°C |
Connector Application : | Wire to Board (Printed Circuit Board PCB) / Signal Circuit |
UL Flammability Rating : | UL 94-HB |
We are professional manufacturer onautomotive connector for 10 years. Buy China Factory High Quality Chinese Connector for Sale
1) More than 10,000 m2 workshop and 10 automatic assembly line. Output 5,000,000 pieces each month.
2) Compatible with Tyco Amp, Delphi, Sumitomo, Molex, Yazaki, Ket, etc.
3) Molding, Injection, Stamping, Assembly finished at our workshop.
4) Quality Assurance with IATF16949: 2016, RoHS, SGS, etc
5) 100% QC checkc before selling.
6) Export to Europe, U.S, Russia, Australia, Korea, Southeast Asia, Brazil, Middle East, etc
7) OEM is welcomed. Each year 200 new models are developed by our mold center.
8) Free sample can be prepared within 24 hours and customers only need to pay the freight charge.
9) Fast delivery within 3 days for small qty and 7~15 days for bulk order.
10) All inquiries will be answered within 24 hours. Our professinal team are ready to answer all of your questions.
