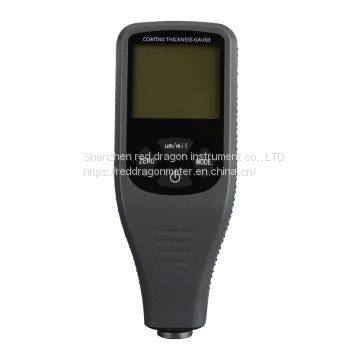

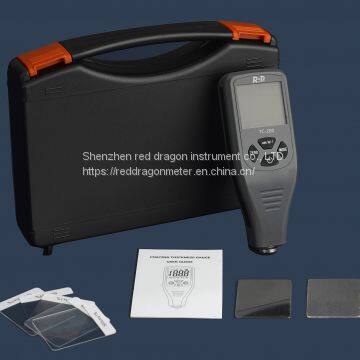

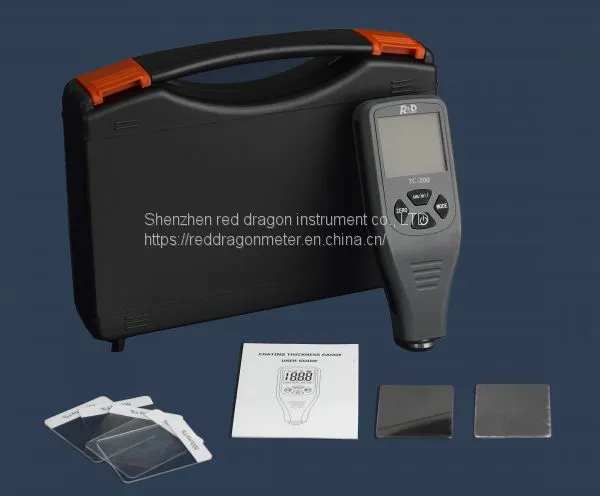

Coating thickness gauge

The thickness gauge is used to measure the thickness of the plated and coated sheet on metal, e.g. paint/enamel/ chrome on steel, paint and anodizing coating on aluminum/copper. The gauge takes the precision integrated probe, and uses principles of electro-magnetic induction and the eddy current effect, which automatically detects the attribute of substrates.

The Gauge is designed for non-destructively measuring the thickness of coating and painting. It is essential for material surface treatment and widely used in manufacturing industry, metal-processing industry, chemical industry, commodity inspection area, and also able to work steadily in the laboratory, workshop and outdoor.

Features:

FSTN LCD Display

Built-in Black Light

Integral Probe F&NF, Auto detecting attribute of substrates

Nice shell design for easy reading

Built-in Silicone Slip Strip

Measurement Range: 0~1300um

Accuracy: ±(2.5%+1um)

Resolution: 0.1um

Zero Calibration and 50/100/250/500/1000um Calibration Points

5 minutes auto power off to saving power

Power Supply: 4 x AAA batteries

Operating Temperature: 0 to 40℃ (32 to 104℉)

Size: 155mm x 62mm x 35mm (6.10” x 2.44” x 1.38”)

Weight: 125g (4.41 oz)
