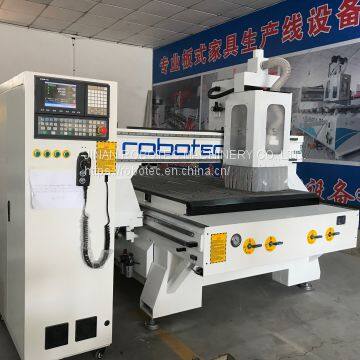

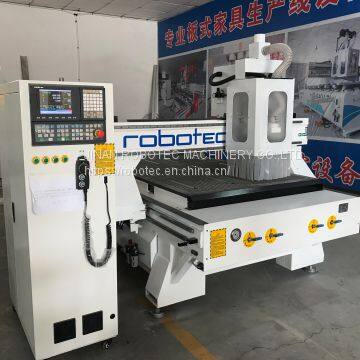

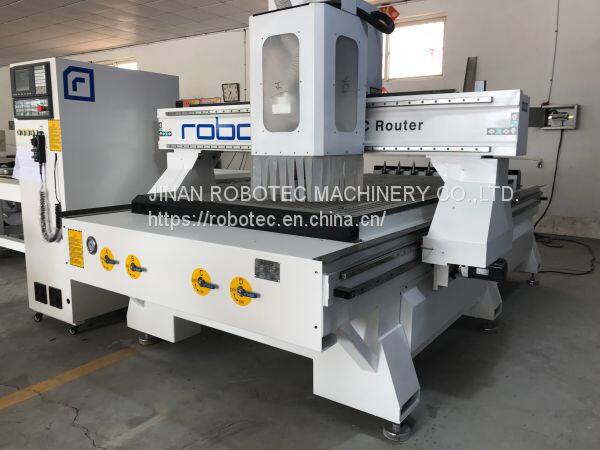

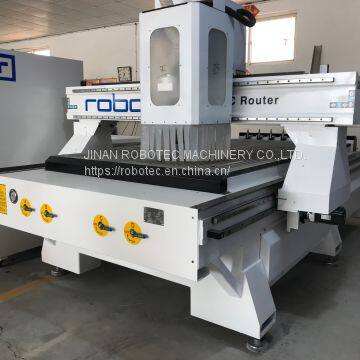

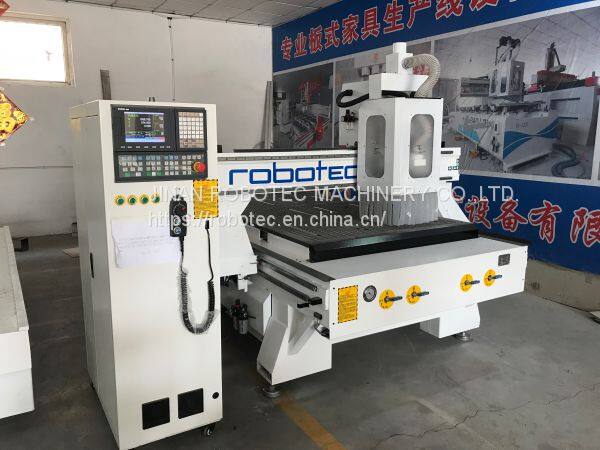

Help CenterAuto Tool Change Wood Cnc Router 1325 ATC Cnc Router Machine 4 Axis
Related Products
-
USB Mach3 CNC 1325 4 Axis 3Kw CNC Router Wood Carving Machine Woodworking Milling Engraving Machine CNC EngraverUS$ 12000 - 13000MOQ: 1 Set -
Heavy Duty 3D Wood CNC Machine 4x8 Feet CNC Milling Machine With Rotary 4 Axis CNC Engraving Machine ATC Spindle CNC RouterUS$ 5000 - 5500MOQ: 1 Set
-
Double Heads 90W Laser Engraving Machine 1300*900mm 150W CO2 Laser Cutting Machine 110V/220V Metal Laser CutterUS$ 7800 - 8000MOQ: 1 Set
-
Mini Cnc Router WMT6090 Cnc Router Metalworking MachineNegotiableMOQ: 1
-
CNC Router Leather Cardboard Cutter Oscillating Knife Cutting Machine Pcb Board Engraving Cnc Router With CCDNegotiableMOQ: 1 Set
Model |
RTM-1325H wood cnc machine |
Working area (X*Y*Z) |
1300*2500*200mm |
Table size |
1750*3050*1740mm |
Body structure |
Thicken steel made |
X, Y Structure |
Rack and pinion |
rails |
Taiwan 25 size hiwin square rails |
Z Structure |
Taiwan TBI ball screw |
X, Y Resolution |
|
Max Moving Speed |
60000mm/min |
Max Engraving Speed |
30000mm/min |
X,Y,Z traveling positioning accuracy |
±0.01mm |
X,Y,Z repositioning accuracy |
±0.01mm |
Spindle power |
3.0kw water cooling spindle |
Spindle Speed |
0-24,000rpm |
Voltage |
380v/3phase or as customer needed |
Drive type |
Big servo motors and drivers |
Working Dictate |
G Code |
Operating system |
Syntec/Mach3/Ncstudio/DSP/LNC |
Tool sensor |
Yes |
Auto oil lubricator |
Yes,included |
Wire protect |
Yes,included |
Running Environment |
Temperature: 0℃~45℃ |
package |
Export wooden box |
After packed size |
3300*2200*1900mm |
G.W |
1800kgs |
>>Standard Configuration:
1) Integrated control system: Popular and easy operation, with USB port to transfer program;
2) Italian HSD Air-cooling Spindle: Long working life, easy maintenance;
3) Big Servo Driving Moto: With highly control precision and high speed, reliable and stable;
4) Taiwan Hiwin Guide and Block: Guaranteed genuine rail with good quality, realizing smooth movement;
5) Taiwan TBI ball screw: linear motion with high precision and and in high speed
6) Helical rack and pinion: quiet running, greater accuracy, smoother cutting and allows greater acceleration and feeding rates, longer lifetime because of smaller wearing force.
7) Taiwan Delta Inverter: Guarantee the variety working speed and protect the spindle very well;
>>Applicable Material: Acrylics,Wood, artificial stones, artificial marble, woods, bamboos, organic boards, double-color board, PVC board, aluminum, brass and other materials.
>>Applicable Industry: Woodworking industry, stone industry, advertising industry, artwork or decoration industry, electronica industry, mold industry and music industry etc.
