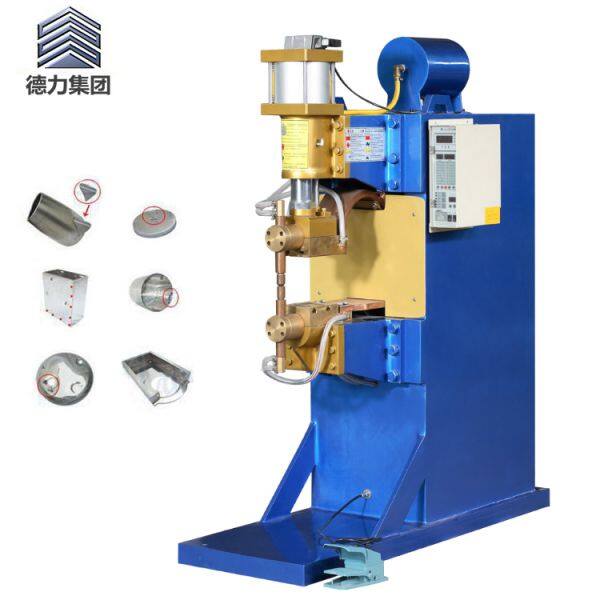

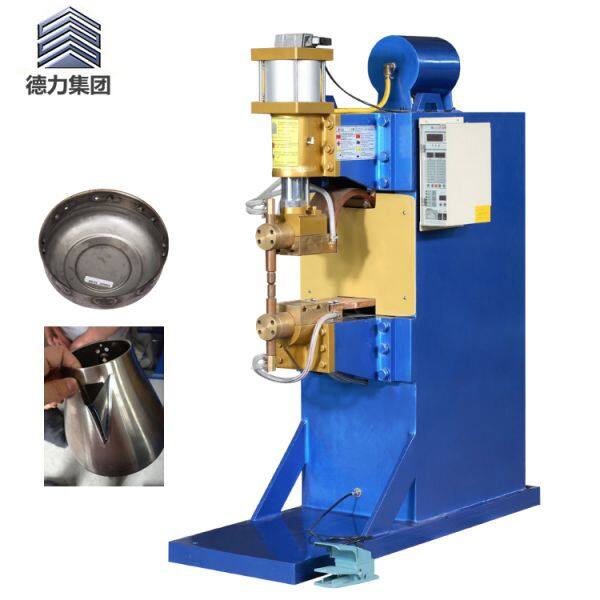

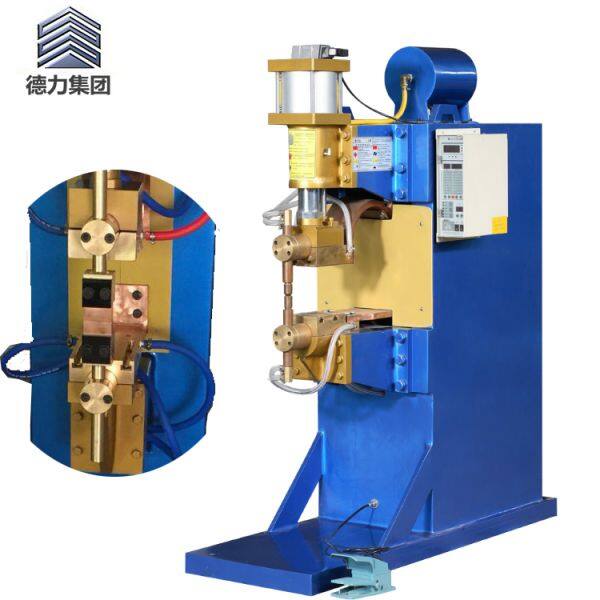

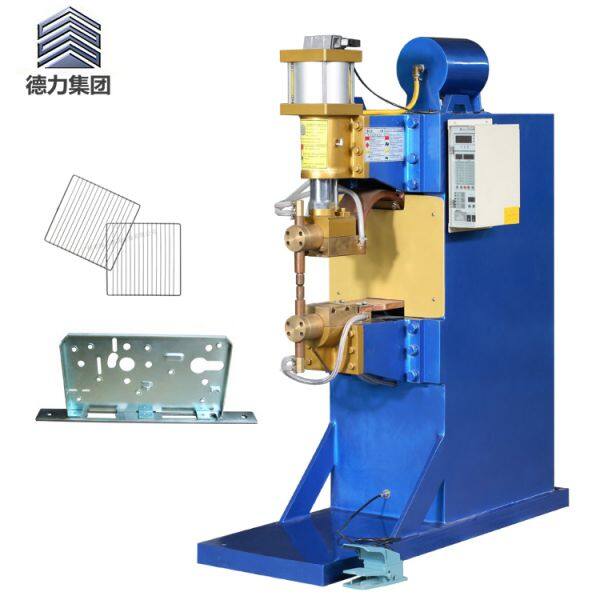

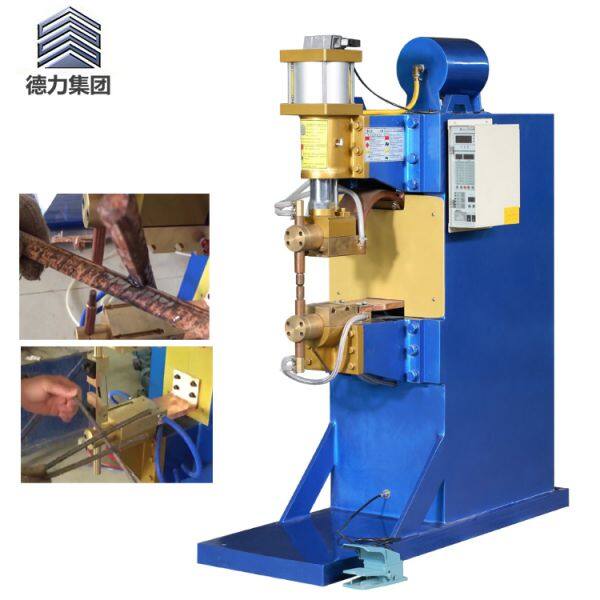

DN Series Pneumatic-AC Spot & Projection Welding Machine
l Manufactured in accordance with international ISO Standard.
l European CE Certified
l European Type Microprocessor Welding Control has transparent safety cover to protect a keypad and has a lock to allow only authorized personnel to access the program.
l Welding Control maintains main parameters such as welding current; weld time, off time, etc. with digital accuracy.
l Any of 23 weld schedules can be easily selected for execution.
l Rigid Frame of the Machine allows the use as Projection or Spot welder.
l Improved water-cooling system guarantees flawless performance in heavy-duty applications.
l Machine is painted with Lead-Free paint.
l All materials used in design are environmentally friendly.
|
Rated |
Rated |
Rated |
Max. |
Rated |
Arm |
Maximum |
Electorode |
Cooling |
Weight |
Electrode size |
||
|
Electrode |
|
|
||||||||||
KVA |
V |
Hz |
A |
% |
mm |
N |
mm |
L/min |
Kg |
(mm) |
(mm) |
(mm) |
|
DN-25 |
25 |
380 |
50/60 |
17500 |
50 |
380 |
2500 |
60 |
6 |
300 |
16 |
20 |
45*200 |
DN-35 |
35 |
380 |
50/60 |
18500 |
50 |
380 |
4000 |
60 |
6 |
380 |
16 |
25 |
50*200 |
DN-50 |
50 |
380 |
50/60 |
20000 |
50 |
380 |
6280 |
60 |
6 |
430 |
16 |
25 |
50*200 |
DN-75 |
75 |
380 |
50/60 |
25000 |
50 |
380 |
6280 |
60 |
8 |
500 |
16 |
25 |
60*200 |
DN-100 |
100 |
380 |
50/60 |
30500 |
50 |
380 |
6280 |
60 |
8 |
600 |
16 |
25 |
60*200 |
DN-150 |
150 |
380 |
50/60 |
38500 |
50 |
380 |
6280 |
60 |
12 |
750 |
20 |
30 |
80*250 |
DN-200 |
200 |
380 |
50/60 |
43000 |
50 |
380 |
6280 |
60 |
12 |
800 |
20 |
30 |
80*250 |
