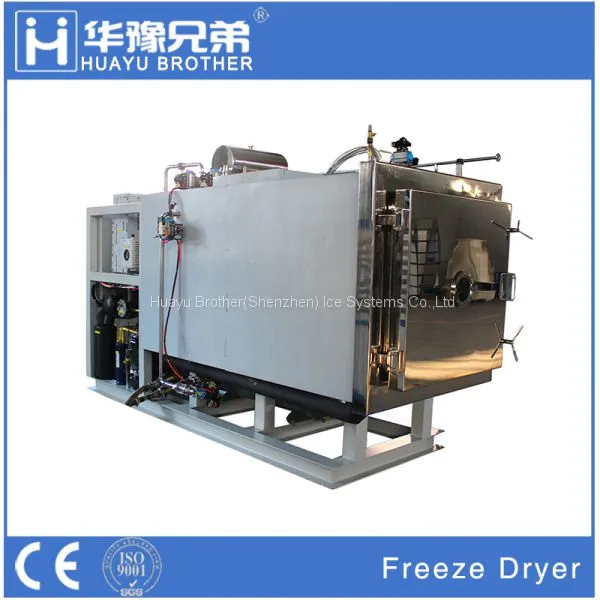

FD-L-TP series freeze dryer, lyophilizer designed for commercial and industrial bulk production, could meet lyophilization process demand in food, pharmaceutical, biological, chemical area, the freeze drying machine with integrated structure and modular systems which is easy maintenance and install, Huayu Brother freeze dryer,lyophilizer provide you the most reliable and stable working lyophilization equipment based on high advanced Ethernet LYO-Controller ,we also accept customized services.
Technical Parameters:
Model |
FD-3L,TP-CIP-SIP |
Shelf area |
3.24sq.m |
Named capacity |
30kgs/batch, calculate by liquid 10mm thick. |
Vials capacity |
φ22mm >6400pcs |
Condenser capacity |
60kgs/24hrs |
Shelves |
6 |
Shelf size |
900*600mm |
Material tray size |
600*450mm |
Material tray quantity |
12pcs |
Shelves temp. |
-50 to +80℃ |
Condenser temp. |
-80℃ |
Vacuum degree |
|
Power install |
15.5kw |
Install size |
2800*1300*2500mm |
Voltage |
380V or 220V 3P |
Design Standard |
cGMP, FDA, GB. |
Technical Features And Customization:
1. Integrated design with compact size, Modular system, easy maintenance.
2. AISI 304 for standard configuration, AISI316L optional for rigorous requirement.
3. CFC-free, double stage compressor system could cool ice condenser to -80ºC.
4. Hollow shelves with silicone oil filled, temperature raise by heating rod, During sublimation period, shelf temperature could programming from -50℃ to +80ºC with accuracy of ±1ºC.
5. Vacuum system from Leybold or Edwards, oil sealed pump or dry pump select, customized brand vacuum pump accept, System final vacuum
6. Top stoppering system, CIP, SIP optional.
7. Unique ice condenser design, strong guarantee ice condenser icing efficient and capacity.
8. PLC+Touch Screen+PC control system.
9. Water spraying + immersing defrosting system.
FD-1L |
FD-2L |
FD-3L |
FD-5L |
FD-10L |
|
Shelf area |
1.15sq.m |
2.16sq.m |
3.24sq.m |
5.25sq.m |
10.5sq.m |
Ice Capacity |
20kgs |
40kgs |
60kgs |
100kgs |
200kgs |
Shelf size |
600*480mm |
600*900mm |
600*900mm |
750*1000mm |
1000*1500mm |
Shelves |
4+1 |
4+1 |
6+1 |
7+1 |
7+1 |
Material tray size |
600*480mm |
600*450mm |
600*450mm |
500*375mm |
500*500mm |
Material trays |
4 |
8 |
12 |
28 |
42 |
Shelf spacing |
80mm |
80mm |
80mm |
80mm |
80mm |
Shelf temp. |
-50C to +80C |
-50C to +80C |
-50C to +80C |
-50C to +80C |
-50C to +80C |
Ice Condenser temp. |
-80C |
-80C |
-80C |
-80C |
-80C |
Power install |
7.6kw |
9.5kw |
15.5kw |
25.5kw |
45kw |
Size |
2500*1100*2000 |
2500*1300*2000 |
2800*1200*2500 |
4000*1500*2500 |
4500*2000*2500 |
Vials capacity(φ22) |
>2200 |
>4300 |
>6400 |
>10700 |
>21000 |
