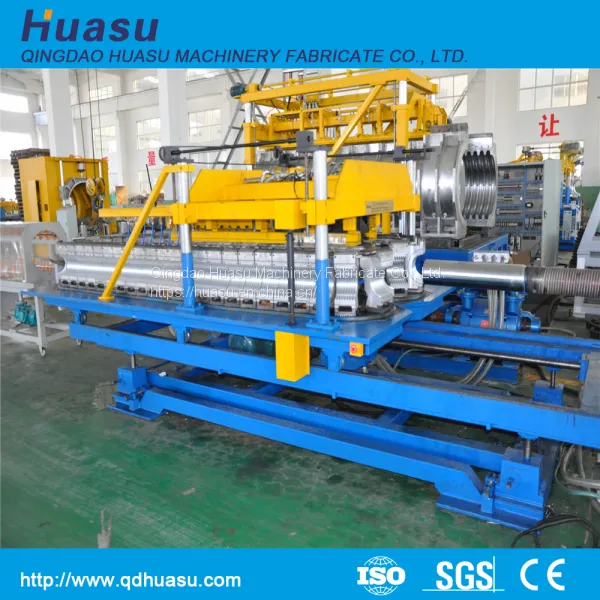

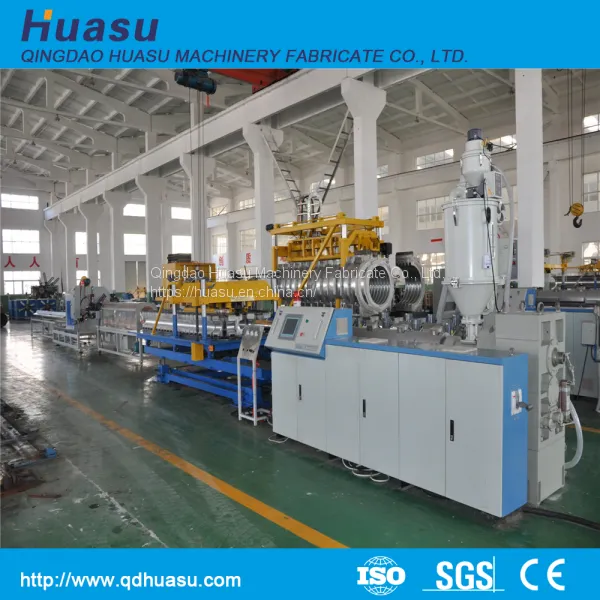

Made In China Plastic Single Wall Corrugated Pipe Production Line Extrusion
Description of HDPE/PP Single Wall electricity Cable Protection Pipe Extrusion Line:
Diameter scope: (ID) Φ90-Φ250mm
HDPE/PP Single Wall electricity Cable Protection Pipe Features:
HDPE/PP single wall Electricity Cable Protection Pipe has the features of resistant to corrosion, anti-aging, shock resistance, high mechanical strength, long life, excellent electrical insulation and so on. It is widely used in underground high voltage cables, lights and cable protection sleeve and city road construction, residential development, landscaping, construction and so on. As the electric threading protection pipe, it is widely used in electricity, lights, lawn lights, garden lights, yard lamp, residential intelligence, cable television, communications, and intelligent transportation and so on.
It has excellent physical properties, adopts high-quality HDPE / PP raw materials. it has good rigidity, strength, and good flexibility and easy for pipe installation.
It is corrosion resistance, long life. In the sea areas, underground water level high and land humidity makes metal or other pipe must be corrosion, and life in general is only 30 years. HDPE / PP pipes can withstand a variety of chemical media, from the influence of soil erosion
Toughness, deflection is good. HDPE / PP pipe is a high toughness pipe, its elongation at break of more than 500%. It has very strong ability to adapt uneven ground subsidence and dislocation. Good shock resistance.
Small-diameter pipe can be bent easily.
Main Technical Parameter:
Name | Model | Dimension | Total Power(kw) | Weight (kg) |
extruder | SJ90×30 | 3780×600×3000 | 110(max) | 6000 |
Mould Blocks (ID) | 90 | 2000×Φ326 | 50(max) | 1200 |
110 | 1500 | |||
160 | 1800 | |||
175 | ||||
200 | 2300×Φ440 | 2100 | ||
250 | 2300 | |||
corrugator | SBCJ315 | 4300×1750×1800 | 30(max) | 5000 |
cutter | QG315 | 2900×1400×2060 | 7.5 | 2500 |
Overturning bracket | JGJ315 | 5220×2100×830 | 230 |
