Chongqing Gold Mechanical & Electrical Equipment Co., Ltd is specialized in manufacturing and developing of Geophysical Exploration Instrument such as Resistivity Meter, IP Instrument, Resistivity Imaging, Seismic Instrument, Magnetic Instrument, Borehole Camera, Borehole Logger, Water Level Meter; Borehole Drilling Equipment&Accessory and Geodetic Surveying Instrument.
High Precision Underground Well & Borehole Inspection Camera Price
Technical Specification
1. Hole type: vertical, slant hole.
2. Depth: 0-2000m.
3. Camera resolution: 850TVL. Automatic focus, manual focus(optional), 360° rotation, freely control, can stay in any position.
4. Pressure: Max. 15Mpa.
5. Probe diameter: φ40-120mm. Panoramic and rotary types are changeable.
6. Cable tensile strength: 250kg.
7. Power supply: AC 220V50Hz (DC12/24V optional)
8. LED display: 8 inch 4:3, 1024*768 pixel.
9. Storage: SD card/U disk, standard 16G SD card, 32G optional.
10. Sensor: Sony 1/3 inch CCD, 0.1 lux.
11. Light: 8pcs LED lights, bulb luminance adjustable.
Application
1. Water well
2. Oil & gas well
3. Ocean engineering
4. Engineering construction
5. Underground pipe inspection
6. Well maintenance and repair
7. Coal borehole inspection
8. Mineral borehole inspection
9. Other application
Function
1. To inspection the water leakage of the well.
2. To imaging the blockage of the well.
3. To help the repair of the well.
4. Provide broadcast quality video of the underwater world, back to the surface from up to within 1000m below.
5. This camera can be viewed in real time or recorded for later viewing.
Feature
1. Super high resolution color picture.
2. Low light operation.
3. Led underwater light.
4. Stainless steel housing.
5. Military grade water tightness cable.
6. Ability to attach up to deep place and stand large pressure of water.

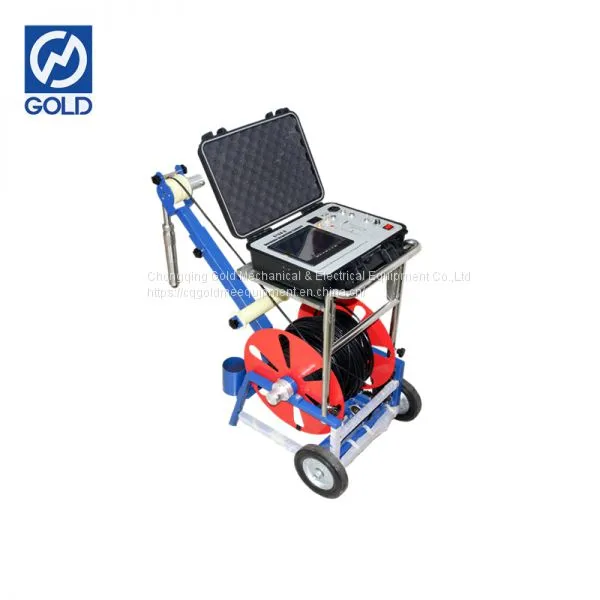

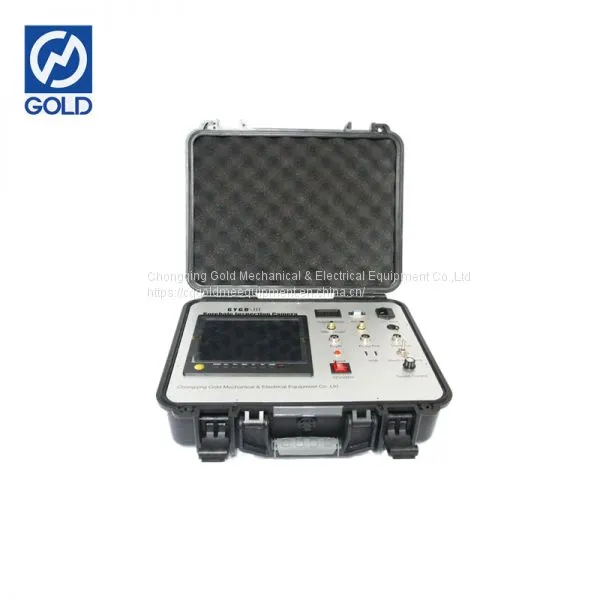

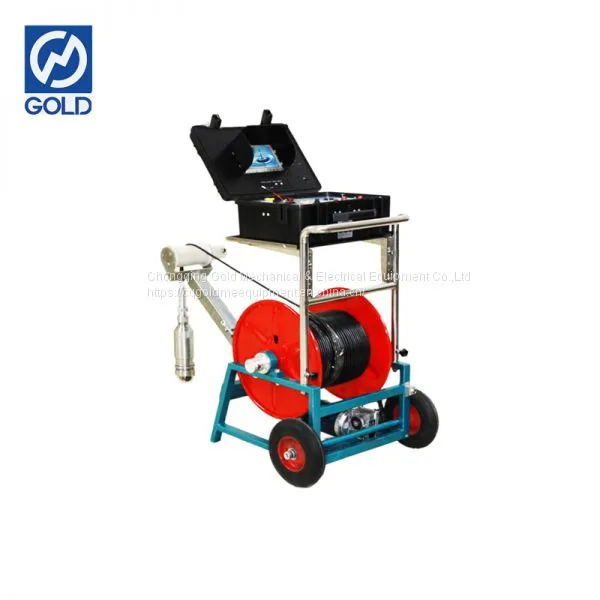

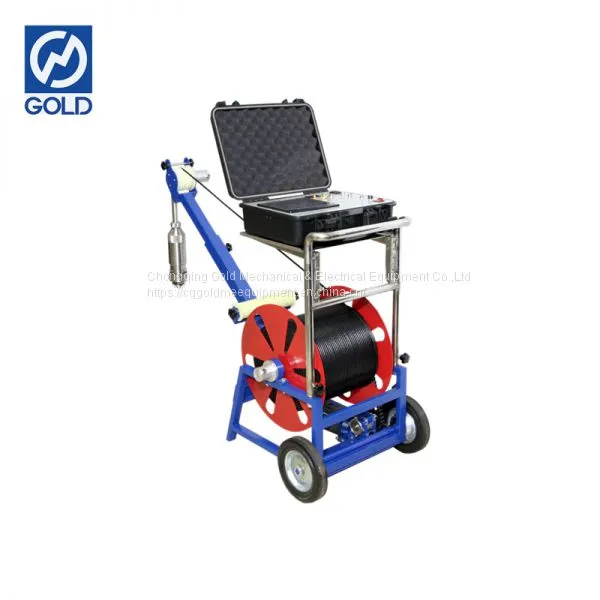

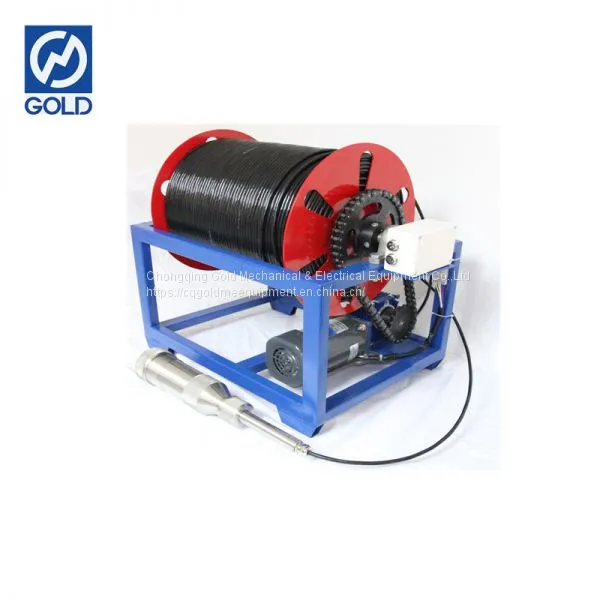

Product Show
Packing
Produst Testing
Exhibition Show
Our Team
Product Series Show
Contact Information
