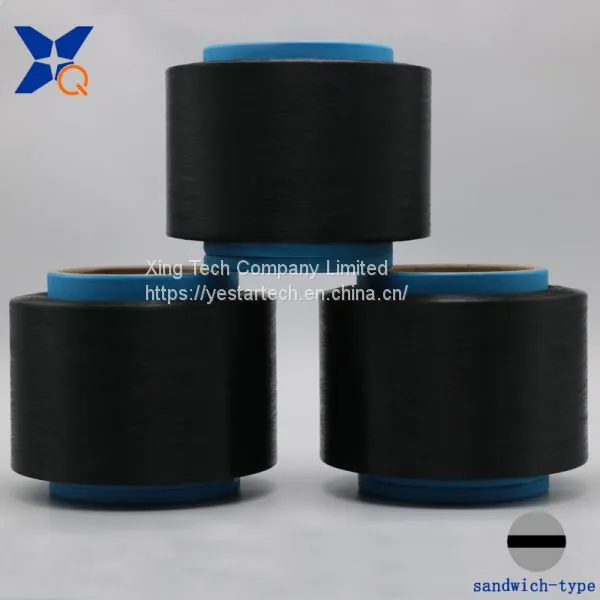

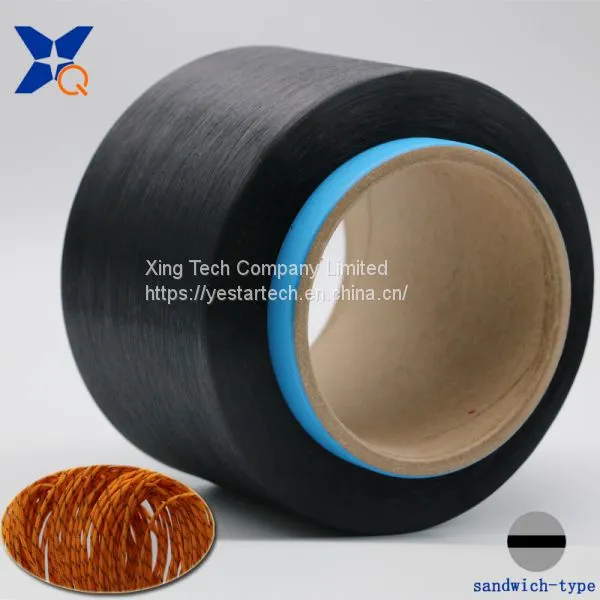

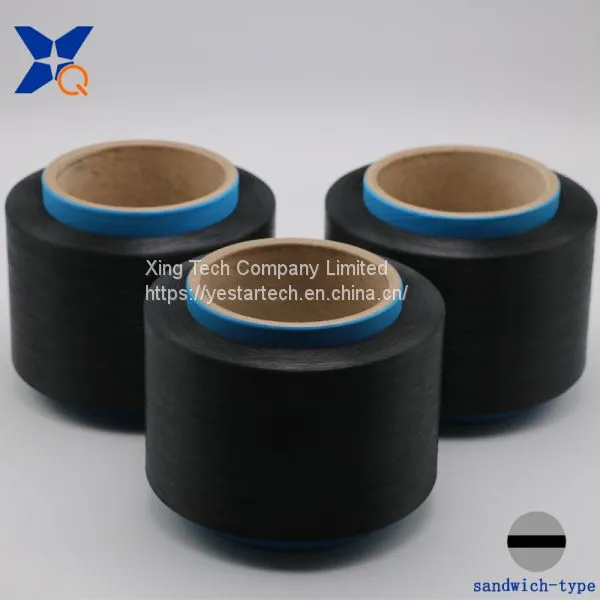

black carbon inside conductive polyester fiber filaments 50D/8F sandwich type for anti static harness cord
a) cross section: sandwich type.
b) conductive materials: carbon grains.

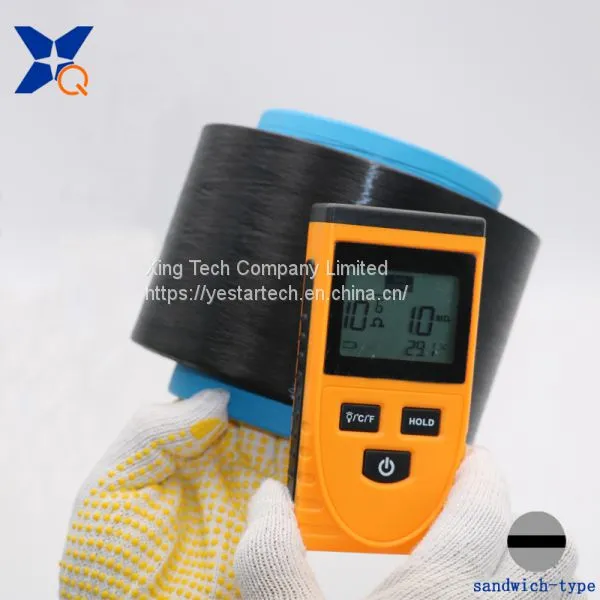

c) surface resistance: 10^6 ohm.
d) thickness: 50D
e) filament(s):8F
Also could supply 20D/1F, 20D/3F, 20D/4F, 40D/3F, 40D/6F, 50D/8F, 100D/12F, 150D/76F, etc.
| Denier/Filament(s) | Based Materials | Conductive grains | Cross section | Color | Surface resistance |
| 20D/1F | Nylon 6 | Carbon | |
Black | 10^4~10^5 ohm |
| 20D/3F | Nylon 6 | Carbon | |
Black | 10^4~10^5 ohm |
| 40D/3F | Nylon 6 | Carbon | |
Black | 10^4~10^5 ohm |
| 40D/6F | Nylon 6 | Carbon | |
Black | 10^4~10^5 ohm |
| 20D/3F | Nylon 6 | Metal oxide | / | White | 10^8 ohm |
| 20D/3F | Nylon 6 | Carbon | |
Black | 10^5~10^6 ohm |
| 20D/4F | Polyester | Carbon | |
Black | 10^6 ~ 10^7 ohm |
| 50D/8F | polyester | Carbon | |
Black | 10^6~10^7 ohm |
Application:
Embeded this conductive filaments into the fabric of anti-static work wear and cleanroom garments by regular grd/stripe , this fabric could electro static discharge .
* Dustless fabric
* linings of top grade suit
* Anti-static kniting gloves
* Anti-static fabrics
* Anti-static single yarn drill and ply-yarn drill
* Anti-static filter felt .
* Anti-static harness cord.
500-800grams/bobbin, is not even net weight.
16 or 24 bobbins/carton
Could ship by international express or by general air transportation or by sea.
If less than 100kg, could send out within 7 days approx.
If more than 1000kg, could finish them within 26 days approx..
We produced this types of products more than 15 years, it is best-selling goods in EU, Turkey, India, USA, Argentina, Brazil, etc.
a) If export to Turkey, could supply Exporter Registry Form and Certificate of origin?
Yes, we exported this products to Turkey more than 10 years, very familiar with Turkey's market.
b) Could keep ability of electro static discharge after 250 times washing?
Of course, so long as this materials exists in, it always has this capacity of electro static discharge.
