SAGA High Frequency Dryer Kiln Wood Drying Machine
Description HF Dryer
High Frequency Vacuum Drying Machine is a relatively small and fast timber drying equipment. It adopts HF electric field as heating source, uniformly radiate to timber, directly heat moisture, speed up moisture removing by vacuum water absorption function, which is extremely suitable for solid wood and all kinds of timber processing factory.
Benefit you can count on:
*Vacuum Drying -- 60°C starting to vaporize, which can reduce wood cracking and deformation while achieving low temperature drying
* Warp deformation Recovering --- Wood clamped by hydraulic system before drying, warping deformation to be recovered when soften , making outturn greatly improving and make easy palletizing
* Quick heating --- No need heat conduction, inside and outside of wood timber are heated at the same time
* Fast dehydration--- During the heating process, stepped temperature difference between inside and outside of wood can speed up the water movement from inside wood to outside wood
* High quality--- Avoid outside & inside cracking and color change, by taking control of heating speed, relative vacuum degree and condensing rate.
* Good adaptability---It can achieve both low temperature and high temperature drying, also can eliminate stress, solidify resin and apply to dry almost all kinds of wood
* Full-automatic & Easy operation --- Automatic feeding and discharging device, drying proceeding under unattended mode
* Cost saving --- Low dry shrinkage and material saving
* Sterilization function & Eco-friendly
SAGA Model List
| Model | Timber Stack Size | Capacity | Power |
| HFVD30-SA | 1000X1000X3000mm | 3m3 | 30KW |
| HFVD45-SA | 1000X1000X4500mm |
4.5m3 | 30KW |
| HFVD60-SA | 1000X1000X6000mm | 6m3 | 50KW |
| HFVD80-SA | 1000X1000X8000mm | 8m3 | 50KW |
| HFVD100-SA | 1250X1250X6000mm | 10m3 | 50KW |
| HFVD120-SA | 1250X1250X8000mm | 13m3 | 50KW |
HF Vacuum wood drying Basic Diameter
| SAGA High Frequency Dryer Kiln Wood Drying Machine | |
| High frequency generator size | 1000x1000x1900mm |
| Drying tank size | 5700x2150x2200mm |
| Cooling tank size | 1500x1150x2000mm |
| Gross weight | 7.3 ton |
| Inside diameter | 1700mm |
| Tank thickness | 12mm |
| Effective drying size | 1000x1000x4500mm |
| HF input power | 40kva |
| HF output power | 30kw |
| Temperature monitor | Fiber optic temperature sensor,not disturbed by HF |
| Moisture monitor | Weighting system(SAGA patent technology),most accurate,not disturbed by HF |
| Cooling system | Stainless steel condenser with stainless steel water-ring vacuum pump |
| Control system | Fully automatic with PLC touch screen |
| Hydraulic cylinder | 4 ton with 2 pcs cylinder |
| Vacuum pump | Stainless steel 7.5kw |
| Feeding way | Automatic |
| Door of tank | Ears door,more safe and powerful |
| Weighting system | Under the tank,can weight the wood every time |

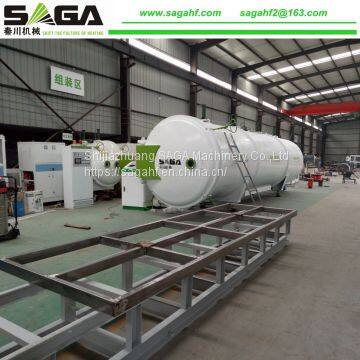

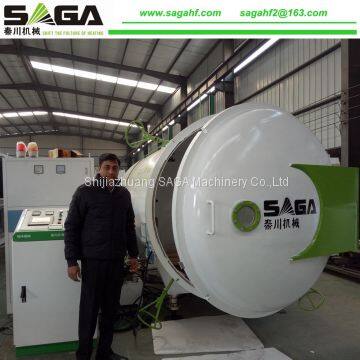

High frequency kiln Main Pictures
HF Vacuum Wood Drying Kiln Features
Fast drying cycle
Automatic feeder
Large capacity
PLC automated systems with touch screen control panel
Uniform heating
No sparking or bending problem
Veneer, panels, hardwood
Weighing testing technology
Fiber optic temperature testing
SAGA Certifications
Wood Drying Cases
| Wood Species | Start Moisture | End Humidity | Drying Time(Hour) |
| Extremely Hard Wood | |||
| Mahogany valued wood Density>1.0 | 15% | 10% | 80 |
| 30% | 10% | 150 | |
| Medium Hard Wood | |||
| Beech/Oak/Ash/Teak,etc Density>0.6 | 20% | 8% | 70 |
| 40% | 8% | 120 | |
| Softwood | |||
| Pine Density | 15% | 8% | 20 |
| 40% | 8% | 75 | |
| Above is just a common comparing chart for your reference,but there are so many wood types world wide,you can compare with the density of your wood type and get a approximately calculation,but for some special wood like Teak-contains oil or other special wood,may need different drying time.Thickness changes also affect drying time.Sp this information much rely on real condition | |||
Drying Live-action
Veneer Drying(lathing cut or sliced)
Wood Floor Board Drying
Hardwood Drying
Thicker Wood Drying
Drying Result Comparison
SAGA Dryer Three No.1 Proprietary Technology
Packing and Transportation
Spare Parts
Our Service And Cooperation
1.Pre-sales service
∨Sales person,project manager,technology engineer,accountant staff.
∨Professional responsing-team:would be fastly and exactly to send you offers.
2.After-sale service
∨Assistance to build factory.
∨Repairing and maintenance if any problems occur in warranty.
∨Installation and clerks training.
∨Spare and wearing parts for free or with big discount.
Any feedbacks can be told us,and we can try our best to support.
3.Other cooperation service
∨Technology knowledge share.
∨Factory building advising.
