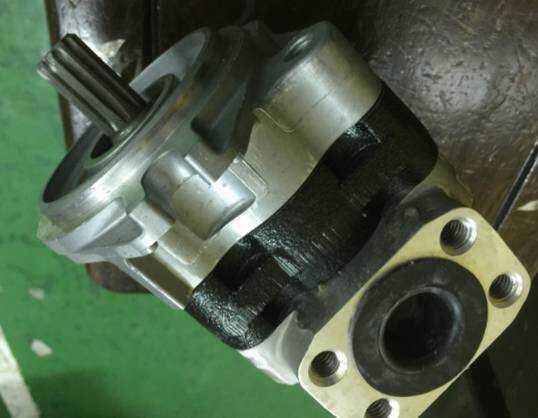

Kp0540cgss Leather Machinery High Efficiency Kyb Hydraulic Gear Pump

Contact Us:

We are an independent hydraulic company with brand new brand hydraulic pumps, gear pumps and vane pumps. We stock Atos, Yuken, Uchida and Nachi Piston Pump. To ensure the highest-quality hydraulic pump and motor repair or remanufactured unit, We stay up-to-date with the latest diagnostic and assembly and test equipment.If you have any problems please contact us by emailing a675991295@163.com

Product uses:

It is suitable for transporting lubricating oil without solid particles and fibers, without corrosiveness, temperature not higher than 80 C, viscosity 5 *10-6~1.5 *10-3 m2/s (5-1500 cSt) or other liquids similar to lubricating oil.

Scope of application:

It can be used as a transmission and booster pump in the oil delivery system, as a fuel pump for conveying, pressurizing and injecting in the fuel system, and as a lubricant pump in all industrial fields.

Structural features:

This series of gear pumps mainly consist of gears, shafts, pump body, safety valve and shaft end seal (special requirements, magnetic drive, zero leakage structure is optional). The gear has higher hardness and strength after heat treatment, and it is installed in the replaceable Bush together with the shaft. The lubrication of all parts in the pump is automatically achieved by using the output medium when the pump is working.

There are reasonable designed oil drain and return grooves in the pump, which is the least torque the gear bears in the work, so the bearing load is small, wear is small, and the pump efficiency is high.

The pump is equipped with a safety valve as overload protection. The full return pressure of the safety valve is 1.5 times of the rated discharge pressure of the pump. It can also be adjusted according to the actual needs within the allowable discharge pressure range. However, it should be noted that the safety valve can not be used for long-term work of the pressure relief valve, and can be installed separately on the pipeline when necessary.

Seen from the extension end of the spindle to the pump, it rotates clockwise.
