Product Details
Brand Name: | SHELOK | Place of Origin: | China | Model Number: | MF5712 |
Product Description
High Accuracy Digital Mass Flow Meter, Low Cost China Mass 4-20ma Output Flow Meter
Description High Accuracy Digital Mass Flow Meters

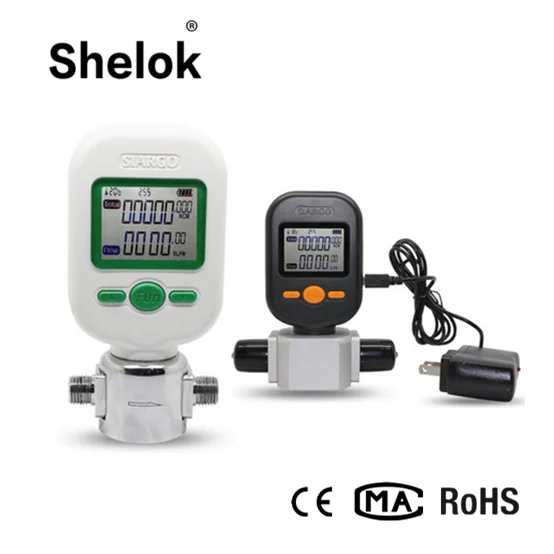

MF5700 Series Mass Flow Meters feature cost effective ultra low power operating on 4 AA batteries. The portable design has excellent exchangeable mechanical adapters, easy data accessible and user programmable capabilities. The internal data storage can also help for many industrial on-site applications. The meters can be customized for various general purpose flow applications.
Detailed Images High Accuracy Digital Mass Flow Meters
Specification High Accuracy Digital Mass Flow Meters
Parameter | MF5706 | MF5712 | Unit |
Flow Range | 0~10, 25 | 0~200 | SLPM |
Turn-down ratio | 30:1 | ||
Accuracy | ±(2.0+0.5FS) | % | |
Repeat ability | 0.5 | % | |
Response Time | ≤2 | sec | |
Power Supply | 4 AA Batteries (LR6) / 6~15 Vdc (with 220 Vac Adaptor) | ||
Output | RS 485 (Optional) | ||
Display | LCD | ||
Display Units | Instant flow rate: SLPM; Flow accumulation: NCM | ||
Instant Flow Rate Resolution | 0.01 | SLPM | |
Flow Accumulation Resolution | 0.001 | NCM | |
Continuous Working Time | >60 days (with batteries) | ||
Max. Pressure | ≤0.8 | Mpa | |
Working Temperature | -10 ~ +55 | ℃ | |
Storage Temperature | -20 ~ +65 | ℃ | |
Humidity | <95% RH (No Icing or Condensation) | ||
Keyboard | 3 keys | ||
User Interface | mini USB | ||
Calibration | Air @ 20C, 101.325 Kpa | ||
DN | 6 | 12 | mm |
Mechanical Connection | NPT 1/4 | NPT 1/2 | |
Weight | 350 | g |
Note: the above parameters are applicable at 20℃ and 101.325kPa.
Features High Accuracy Digital Mass Flow Meters
! Ultra low power by batteries or optional external AC adaptor
! Potable design with rotatable meter head and easy exchangeable mechanical adaptors
! Customizable flow range with over 30:1 turn-down
! RS485 Modbus protocol ready for networking
! User programmable range alarm for safety and other monitoring/control functionality
! Internal data storage for additional data safety
! Hygienic and oxygen safe copper body for various fluids
Applications High Accuracy Digital Mass Flow Meters
Mechanics Food Tobacco Chemistry Beverage Glass Agriculture Research Pharmacetics Instrumentation
