Plastic Corrugated Pipe Extrusion Machinery
- 20 Pair / Pairs per Month
- QINGDAO
- T/T L/C
- 50 days
- 30A automatic transfer switch
- Hot selling rack cabinet weatherproof/SK-235M waterproof telecom outdoor cabinets with fan
- Hot selling rack cabinet weatherproof/SK-291 outdoor telecom cabinet rack
- Hot selling rack cabinet weatherproof/SK-345 outdoor waterproof cabinet
- Hot selling rack cabinet weatherproof/ SK-400B fan type ip54 battery cabinet
- Hot selling rack cabinet weatherproof/SK-235M waterproof outdoor racks with fan
Product Details
Brand Name: | HUASU | Place of Origin: | China | Model Number: | SBG200 plastic pipe extrusion machinery |
Type: | Other | External Size: | 20*4*3m | Protection Level: | Other |
Product Description
Plastic Corrugated Pipe Extrusion Machinery

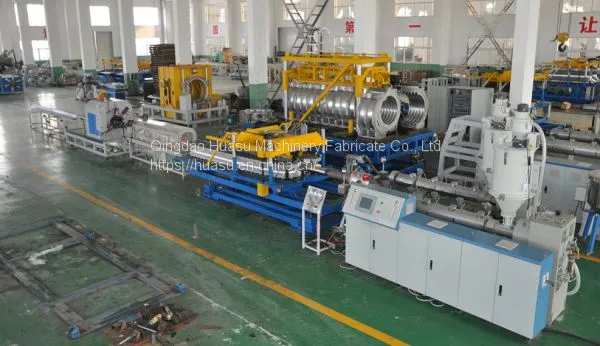

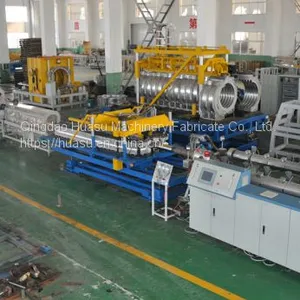

Double Wall Corrugated Pipe Line Features:
In order to meet the demand of plastic pipe market, HUASU Company designed and developed this HDPE Double Wall Corrugated Pipe Extrusion Line SBG 200 by absorbing advanced technology from foreign countries plastic machinery industry. This Corrugated Pipe Extrusion Line is the latest study achievement in the plastic extrusion field. This extrusion line is suitable for the high speed extrusion of HDPE, LDPE, and PP material. SBG 200 HDPE Double Wall Corrugated Pipe Extrusion Line adopts directly extruding (single extruder or two extruders’ co-extrusion) and forming technology, human-machine interface control system. It makes high automation degree, reliable quality and stable production become true. And this pipe production line wins our home and abroad customers’ good reputation.
Extruder: High speed and efficiency single screw extruder is specially designed for extrude PE material. Grooved barrel, equipped with the lower noise fan, high speed and hard gear reducer. The inner and outer layers of the corrugated pipe are independently fed material by two extruders. It can make the inner and outer layers produce different material and guarantee high efficiency extrusion.

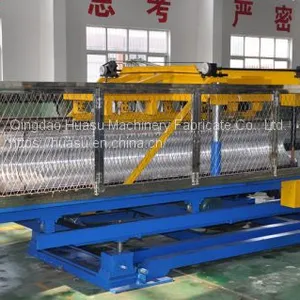

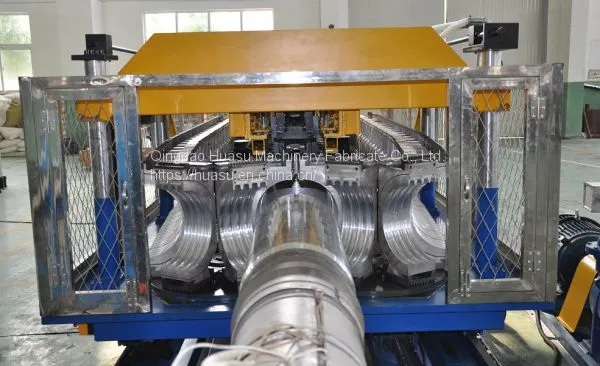

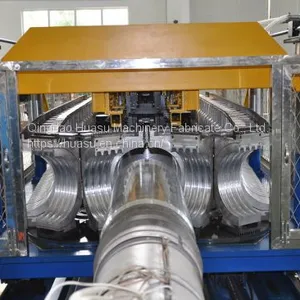

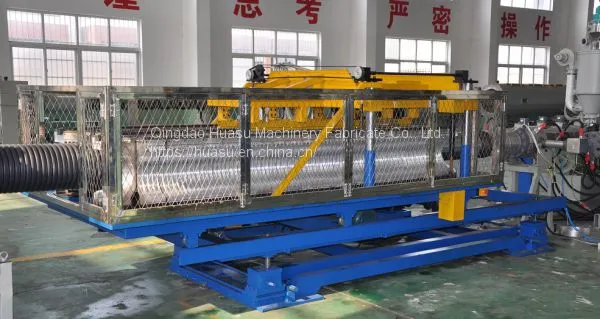

Corrugator: Corrugator is adopted horizontal structure with chain type transmission, equipped with open water cooling system. It greatly increases the production speed. Mold Blocks moving adopts advanced synchronous upper and lower mechanical drive system. It assures moving accuracy and plastic pipe quality stability. Advanced self-lubricating system makes the forming molds and mold plates abrasions minimize and greatly extend the service life.
Die head: It adopts spiral type special structure design, small volume, and clean flow. This structure can effectively eliminate internal stress of corrugated pipe, remove the weld pipe marks, and make the corrugated pipe inner and outer layer wall thickness even and forming stability.
Cutting machine: By electrical, pneumatic joint control, it can make smooth pipe incision, dustless cutting, simple and sensitive operation becomes true. It can implement fixed- length automatically cutting which matched over loading fixed-length equipment.
Control system: this Double wall corrugated pipe line adopts SIEMENS professional PLC control system, 15 "large color touch screen human-machine interface, high automation, reliable running, easy operation, remote communication function which can realize remote fault diagnosis and rule out the possibility.
plastic pipe extrusion machinery, plastic pipe machinery, corrugated pipe extrusion machinery, corrugated pipe extruder, corrugated pipe making machine, pe pipe extrusion line
Main Technical Parameter:
Name | Model | Dimension (L×W×H)mm | Total Power(kw) | Weight (kg) |
Extruder (Co-extrusion) | SJ75×30 SJ55×30 | 3400×560×3000 2575×460×2600 | 55(max) 22(max) | 4500 2000 |
Extruder ( Single-extrusion) | SJ90×30 | 3400×560×3000 | 110(max) | 4500 |
Mould Blocks (ID) | PE50 | 2000×Φ300 | 16(max) | 100 |
PE63 | 150 | |||
PE75 | 160 | |||
PE90 | 180 | |||
PE110 | 300 | |||
PE125 | 2000×Φ326 | 350 | ||
PE145 | 400 | |||
PE160 | 420 | |||
PE200 | 450 | |||
Corrugator | SBCJ200 | 3940×1720×2070 | 4(max) | 5000 |
Cutter | QG200 | 2715×1000×1720 | 2.2 | 800 |
Unloading Bracket | JGJ200 | 5000×800×1000 | 150 |
