Chongqing Gold Mechanical & Electrical Equipment Co., Ltd is specialized in manufacturing and developing of Geophysical Exploration Instrument such as Resistivity Meter, IP Instrument, Resistivity Imaging, Seismic Instrument, Magnetic Instrument, Borehole Camera, Borehole Logger, Drilling Equipment&Accessory and Geodetic Surveying Instrument.
Measurement 1''/5''/10'' Total Station with Telescope Magnification 30X

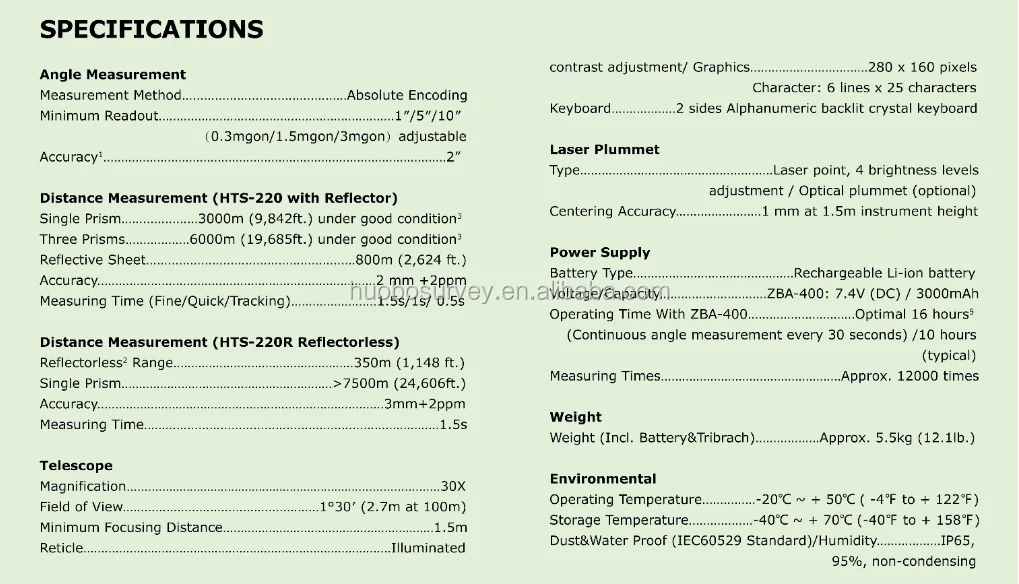

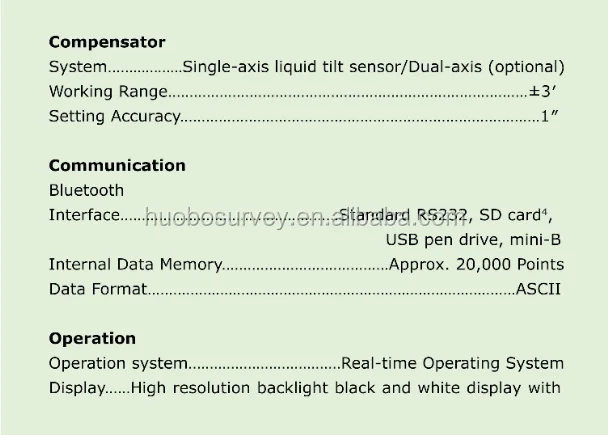

Technical Specification
Product Features

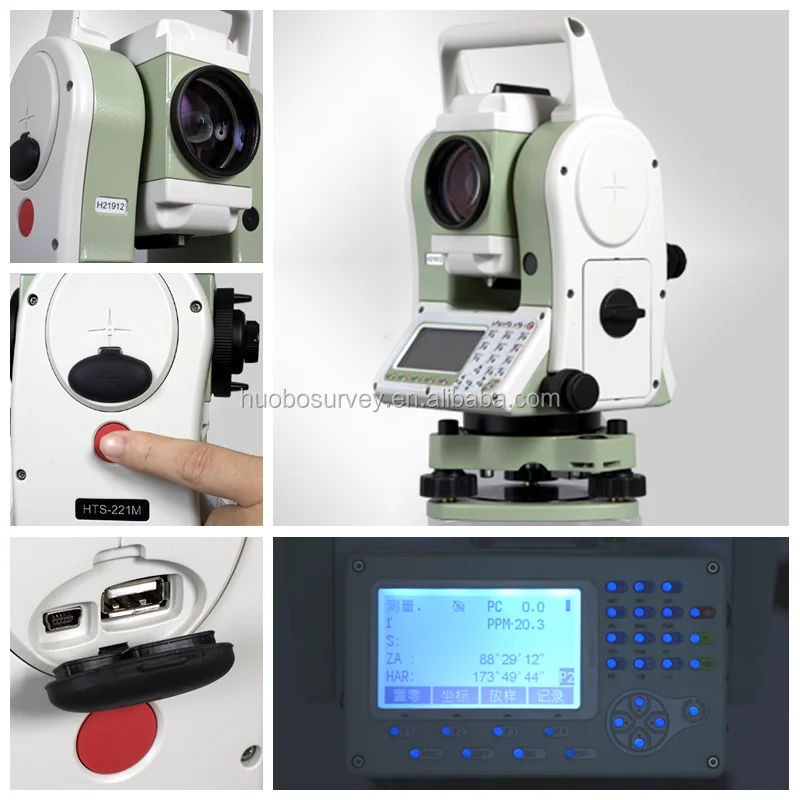

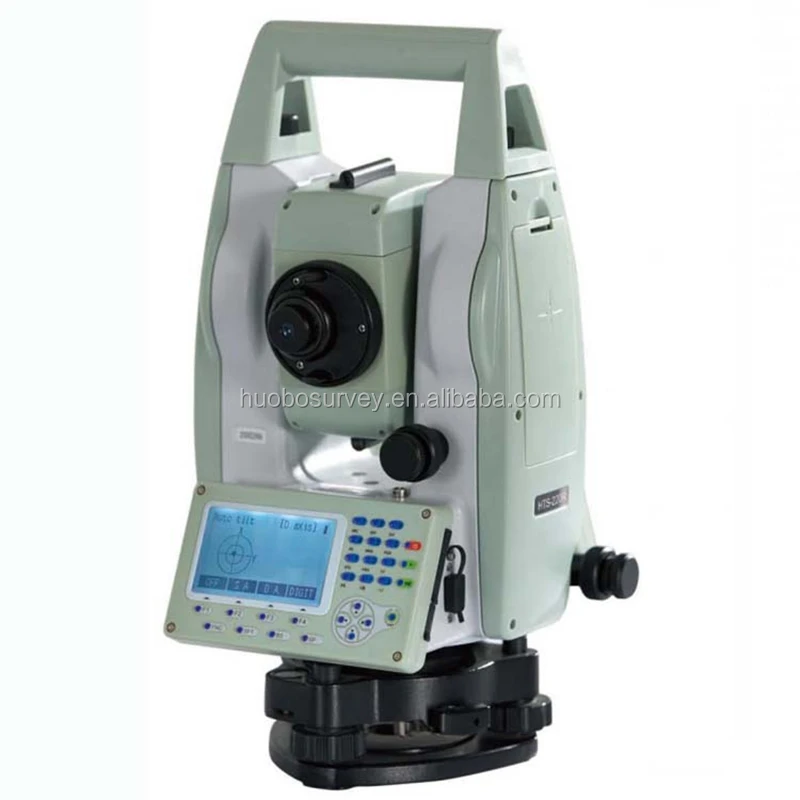

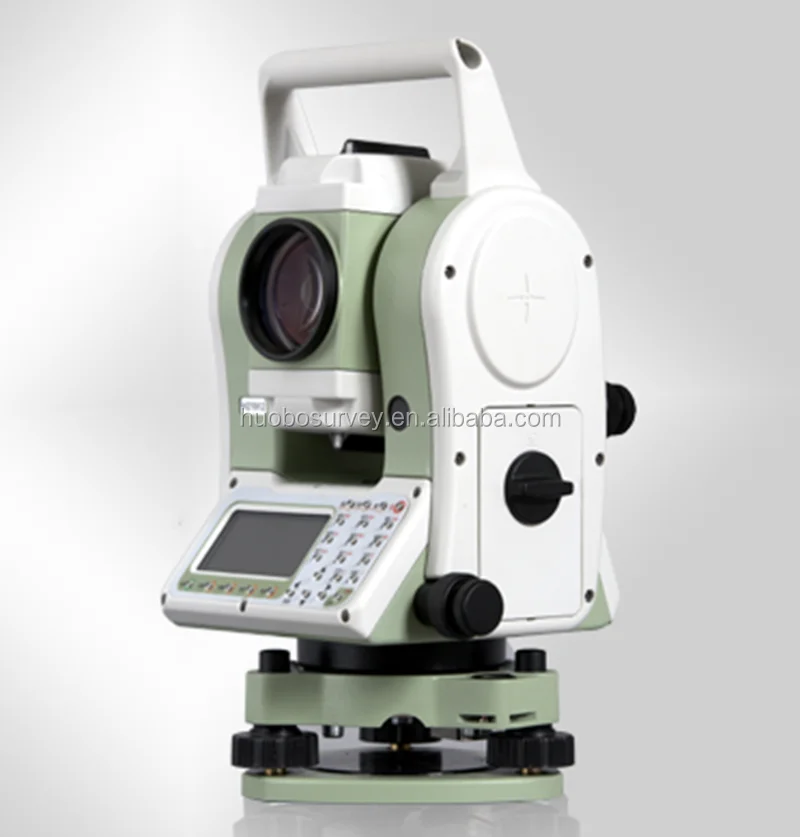

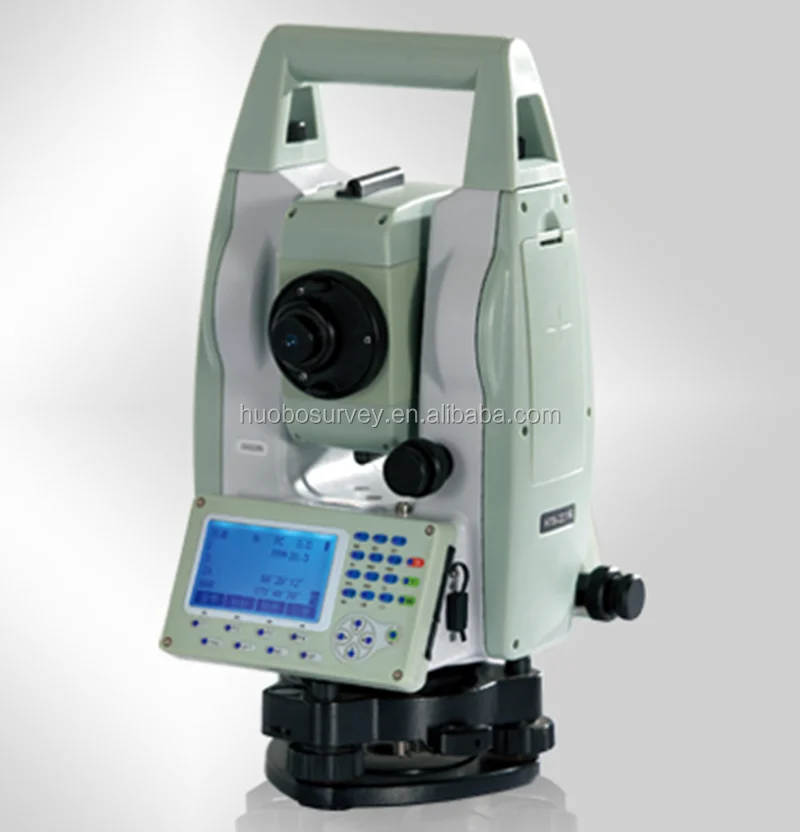

HTS-220R Total Station
A total station or TST (total station theodolite) is an electronic/optical instrument used in modern surveying and building construction. The total station is an electronic theodolite (transit) integrated with an electronic distance meter (EDM) to read slope distances from the instrument to a particular point.
Robotic total stations allow the operator to control the instrument from a distance via remote control. This eliminates the need for an assistant staff member as the operator holds the reflector and controls the total station from the observed point.
The HTS220/R is configured with advanced dualaxis compensatorfor auto error elimination and auto accuracy compensation.
Absolute Encoding
The absolute encoding disk ensures high accuracy, efficiency and stable performance. Initialization is needless but to measure the angle immediately as the HTS220/R is turned on. The azimuth information won’t be missed even the HTS-220/R is power-off unexpectedly.
High-performance MCU SMT32
The STM32 MCU based on ARM CortexM processor enables the HTS220/R has extra high processing speed and low-power consumption.
Bluetooth
The Bluetooth wireless technology makes HTS-220/R accessible to any data collector for real-time communication. The third party field software such as Carlson SurvCE is fully compatible with the HTS-220/R.
Data Storage

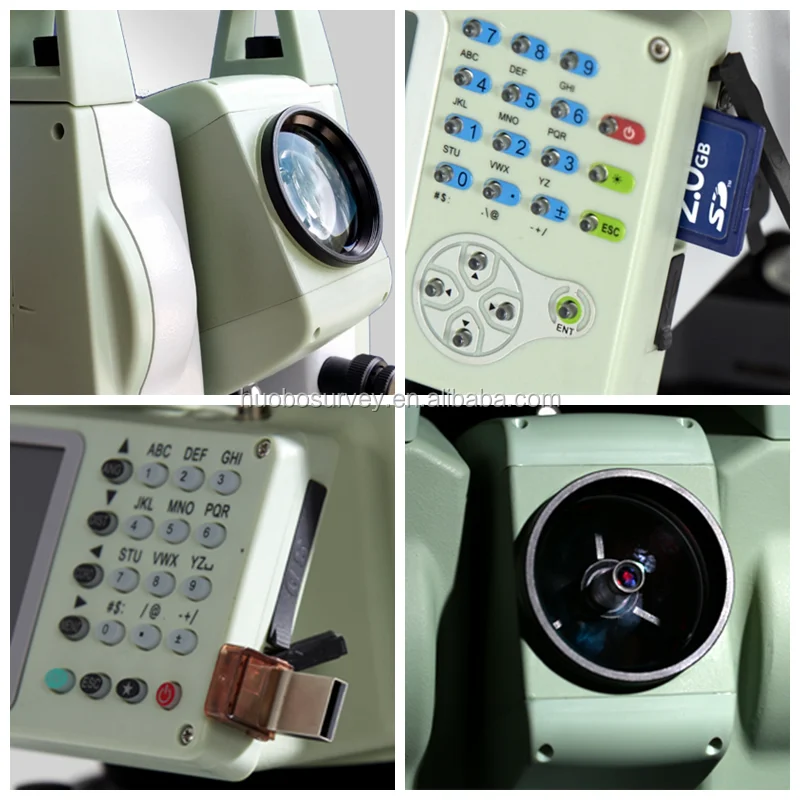

Diversified data transfer options such as SD card, USB pen drive, mini-B interface.
Backlight
The display and keyboard with backlight for working in the dark.
Diagonal Eyepiece
Support diagonal eyepiece for observations at steep line of sight.
Calibration Software
The proprietary HITARGET Calibration software is accessible for realtime diagnosis to ensure troublefree operation.
Data Transfer Software
The proprietary HITARGET data transfer software supports different type of output data format, which can be used in AutoCAD or other brands’ post processing software.
Product Show
Produst Testing
Exhibition Show
Our Team

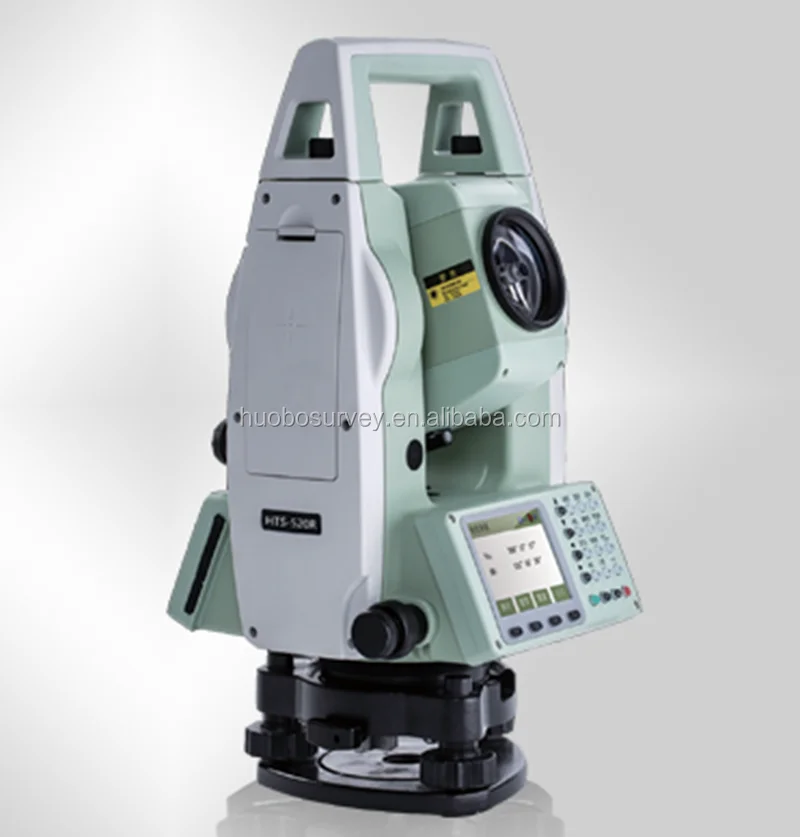

Produst Series Show
