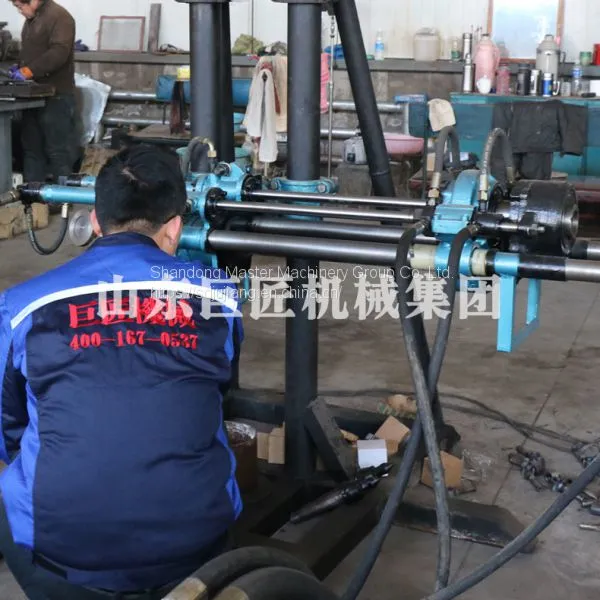

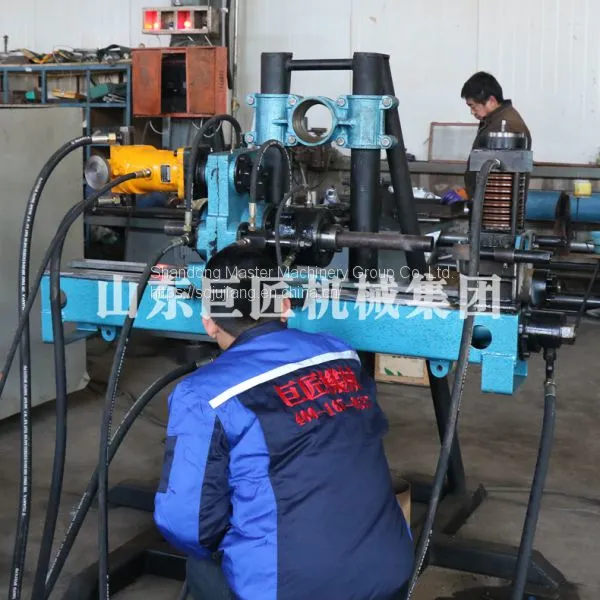

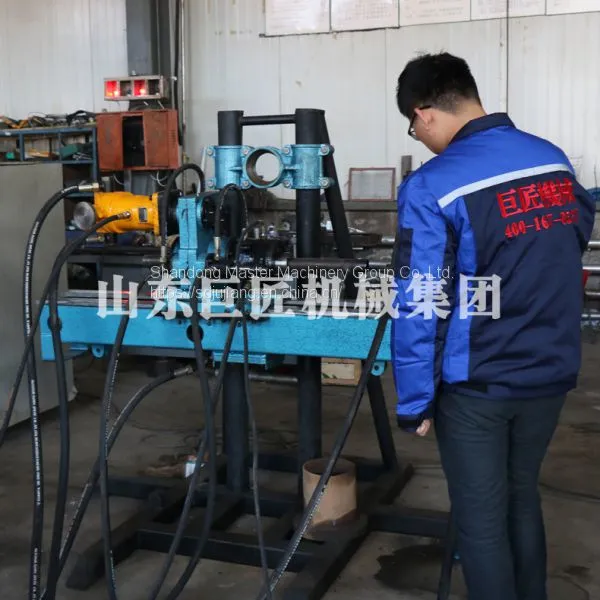

KY-250 Full Hydraulic Drilling Rig For Metal Mine Exploitation

Name: KY-250 Full Hydraulic Drilling Rig For Metal Mine Exploitation
Brand: huaxiamaster
SKU: 159382295
Availability: InStock

US$ 1100 - 1200 MOQ: 1 Set

Key Specifications

Brand Name:

huaxiamaster

Place of Origin:

China

Model Number:

KY-250

Shandong Master Machinery Group Co.,Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

7 days

Brand Name huaxiamaster

Place of Origin China

Model Number KY-250

Type Core Drilling Rig

Certification ISO

After-sales Service Provided Engineers available to service machinery overseas

Weight 200

Dimension(L*W*H) 2000*1500*1600mm

Power Type Diesel

Voltage 220v

Usage Coal

Condition New

Power(W) 18.5 kw

1. The brief introductions of KY-250 metal mine exploration drilling rig

The KY250 tunnel drilling rig is

l small in size

l light weight

l convenient to install and operate

l excellent linkage and adjustable speed range

l suitable for drilling at any angle in the tunnel or surface.

2. The specifications of KY-250 metal mine exploration drilling rig

Drilling diameter	Φ36.5mm /Φ46.5mm
Drilling depth	250m（ø33 Steel drill rig）/200m（ø43 Steel drill rig）
Borehole angle	0°-360°
Spindle speed	400-1400r/min
Spindle output torque	150-400nm
Rated pulling force	40kn
Rated pulling speed	＞0.3m/s

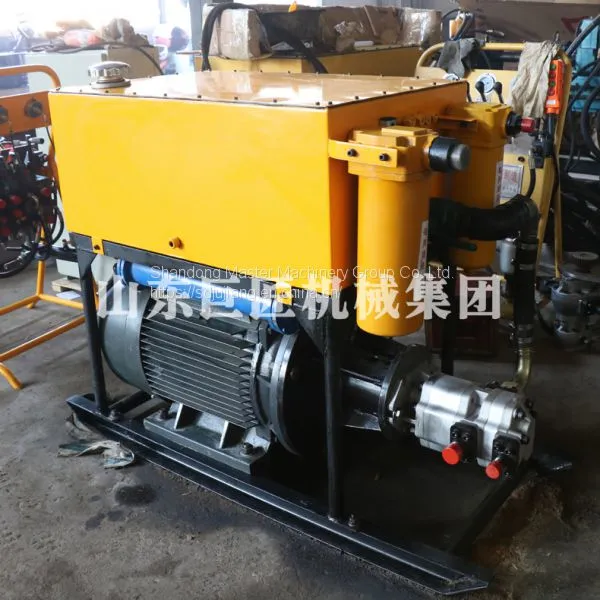

Oil supply mode	double gear pump
Rated system pressure	16mpa
Oil pump model	CBF-F71/10
Hydraulic oil model	antiwear hydraulic oil YB-N46/YB-N32 (winter)
Motor model	manual variable motor A6V80MA
Motor specification	30kw
Weight	main engine 275kg/backbone 40kg/operating floor86kg/power car 420kg
