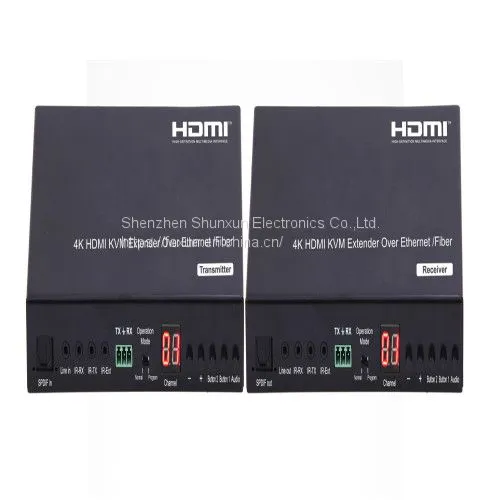

Help Center4K Low Latency KVM HDMI Extender Over IP/Fiber,With RS232,Remote,LED
Related Products
-
1x4 Mixed Input Splitter,HD Video Wall ControllerUS$ 186 - 190MOQ: 1 Piece -
4K HDMI+USB KVM Extender Over IP/FiberUS$ 274 - 276MOQ: 1 Pair
-
4X4 Seamless HDMI Matrix & 2x2 Video Wall ControllerUS$ 356 - 360MOQ: 1 Piece
-
70m 8x8 HDBaseT Matrix,Support POC,IP Control,RS232 ControlUS$ 757 - 760MOQ: 1 Piece
-
H.265/H.264 HD HDMI Encoder for IP TVUS$ 88 - 90MOQ: 1 Piece
1). 4K UHD HDMI over IP/Fiber Extension2). USB2.0 over IP extension3). Support transmission distance 120m over single Cat5e/6 cable4). Support Fiber optical up to 60KM Single Mode5). Support input 4k@60hz YUV 420 Max ,output 4k@30hz Max6). HDCP 2.2/HDCP1.4 compliant7). Support Bi-Directional Wide Band IR 38KHZ-56KHZ Pass through8). Support RS232 pass through and control,Telnet command9). With IR remote/Button to control the Group ID,with LED to show the Group ID10). Support Dolby True HD,DTS-HD Master Audio11). Input audio:SPDIF 5.1 and L/R Analog Audio Embedded12). Output audio:SPDIF 5.1 and L/R Stereo Analog audio extraction13). Support Unicast,Multicast,Video Wall system Max 8x16 ,Output video Rotation14). 10-Gigabit IGMP Ethernet Switch can be cascaded for many layers
Inputs Transmitter: 1x HDMI ( Female Type A ), 1xSPDIF, 1xUSB Receiver: 1x RJ45, 1x Fiber
Outputs Transmitter: 1x RJ45, 1x Fiber Receiver: 1x HDMI ( Female Type A ), 1xSPDIF, 1xUSB Box Dimensions 315mm[L] x 170mm [W] x 75mm[H]
Carton Dimensions 400mm[L] x 335mm [W] x 365mm[H]
QTY/CTN 10 pcs
Net Weight 9 kg
Gross Weight 10 kg
