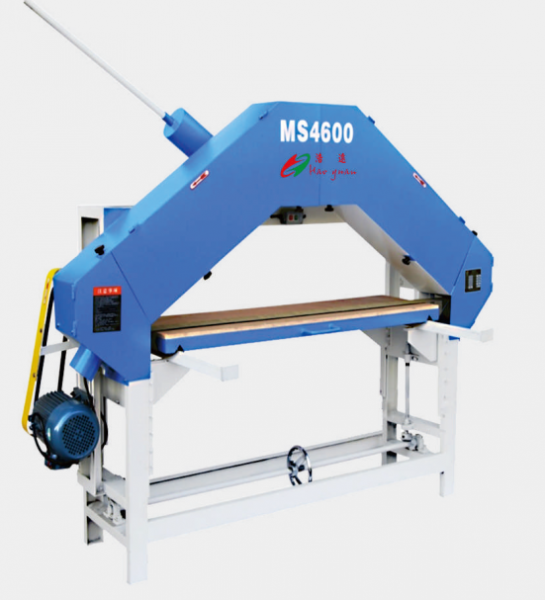

Help CenterTriangle Wire Drawing Machine Hardware Electric , Furniture 4600×100mm
Related Products
-
Hot-water Heat Equipment High-precision Triangle Grinding Machine Metal GrindingUS$ 1730 - 1800MOQ: 1 Set -
1500×500mm Triangle Hairline Polishing Machine Hot-water Heat EquipmentUS$ 1730 - 1800MOQ: 1 Set
-
1450×410mm High Accuracy Hairline Polishing MachineUS$ 1730 - 1800MOQ: 1 Set
-
2.2kw High Accuracy Hairline Polishing MachineUS$ 1730 - 1800MOQ: 1 Set
-
With Abrasive Belt Stainless Steel Flat Wire Drawing Machine 1450×410mmUS$ 1730 - 1800MOQ: 1 Set
Parameter：
| Abrasive belt size | 4600×100mm |
| Worktable size | 1450×410mm |
| Processing dimension | 1500×500mm |
| Product size | 2230×1000×1640mm |
| abrasive band line speed | 23m/s |
| Polishing wheel width | 150mm |
| Motor power | 2.2kw/3kw |
| motor speed | 1440r/min |
| Applicable voltage | 380v 50HZ |
Advantages:
1. The closed - type sand belt treatment reduces the risk of sand belt fracture.
2. The installation of sand belt USES the breakthrough principle of self-retension, making the belt more elastic and not easy to break.
3. The working platform can slide back and forth, and the polishing is a platform for the platform to realize the swing of the workpiece.
4. Use spiral lifting drive to achieve lifting and lifting for the platform and more flexible work with various specifications.
Description:
This machine apply to all kinds of the flat surface wire drawing processing, good and fine polishing processing. It adopts the new mechanical conception and transforms the traditional two-wheel plane sand light into three-wheel inverted polishing, suitable for the large size of the workpiece sanding and drawing.
Application:
Manual triangle hairline polishing machine is suitable for hardware electric, furniture, hot-water heat equipment, movement supplies, finishing equipment, revertex plane product wiredrawing processing.
