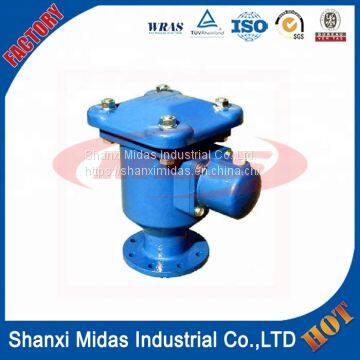

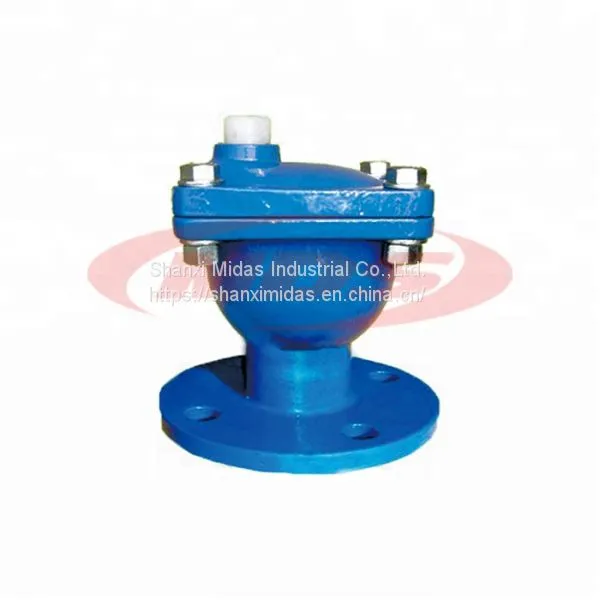

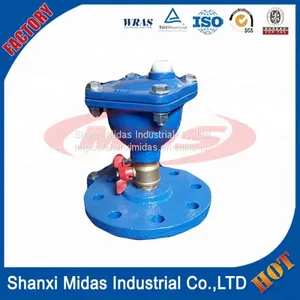

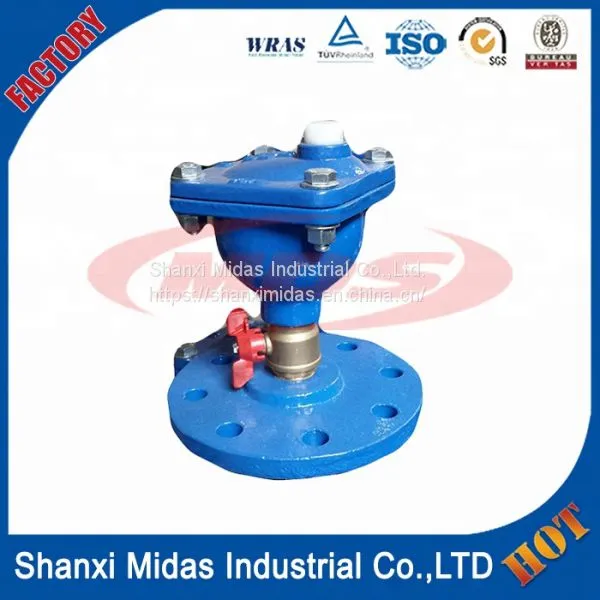

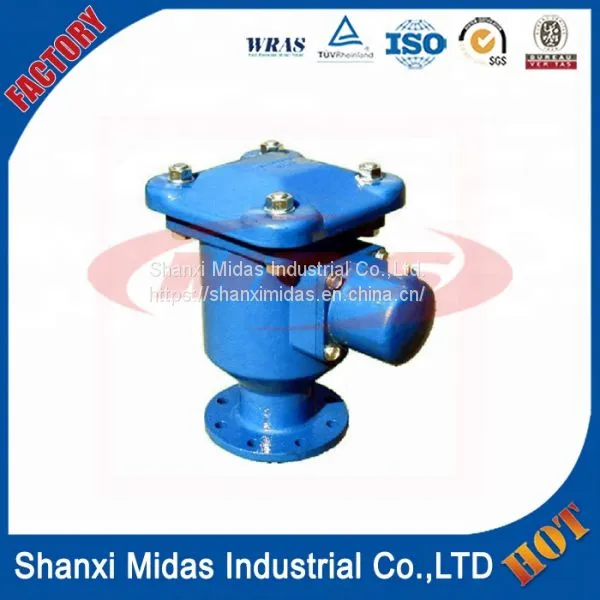

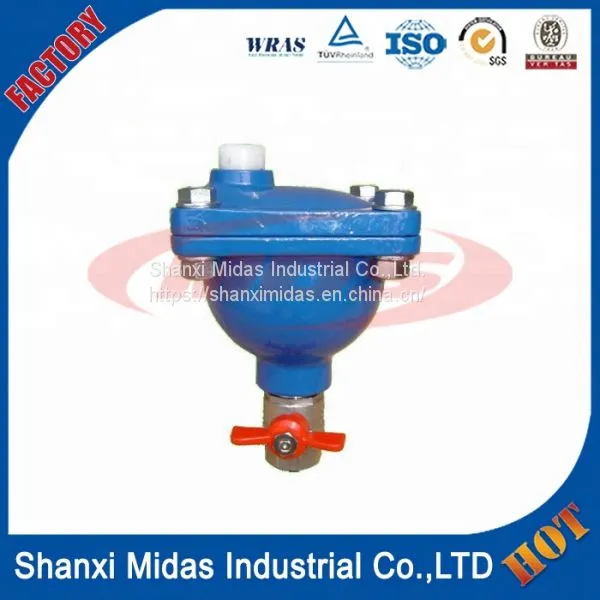

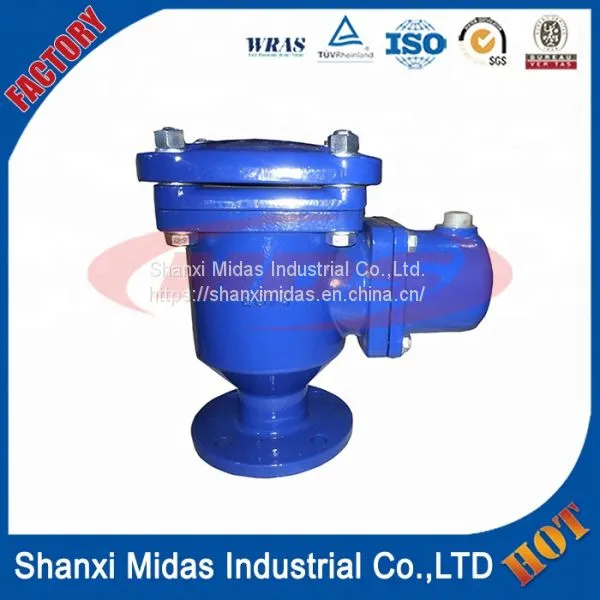

Small Ductile Cast Iron Air Relief Valve for Water Use
US$ 600 - 800
MOQ: 1 Ton
Key Specifications
Get Latest Price
Brand Name:
MDS
Place of Origin:
China
Application:
General
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN,QINGDAO
Delivery Detail:
15 days
Related Products
-
Gg25 Hand Operated Disc Type Dn150 Butterfly ValveUS$ 600 - 800MOQ: 1 Ton -
Ductile Cast Iron Material DIN Standard DIN3352 F4 Non-rising Stem Resilient Seat Gate Valve DN300 PN10US$ 800.00 - 850.00MOQ: 50 Tons
-
Ductile Iron Material DIN Standard DIN3352 F4 Non-rising Stem Resilient Seat Gate Valve With Square CapUS$ 650.00 - 700.00MOQ: 50 Tons
-
Ductile Cast Iron GGG50 DIN Standard DIN3352 Non-rising Stem F4 Gate Valve DN300 PN10US$ 800.00 - 850.00MOQ: 50 Tons
-
Ductile Cast Iron GGG50 DIN Standard DIN3352 DN100 Non-rising Stem F4 Gate Valve PN10US$ 800.00 - 850.00MOQ: 50 Tons
Brand Name
MDS
Place of Origin
China
Application
General
Standard or Nonstandard
Standard
Pressure
Other
Power
Other
Temperature of Media
Other
small ductile cast iron air relief valve for water use
Product Description
| 1 | Material: | Ductile iron |
| 2 | Size: | DN40-DN300mm |
| 3 | Standard: | BS, DIN, EN |
| 4 | Working Temperature: | 0.6-52℃ |
| 5 | Working Pressure: | 16Kg/cm2 |
| 6 | Shell Test Pressure: | 24Kg/cm2 |
| 7 | Seat Test Pressure: | 18Kg/cm2 |
| 8 | Media: | Water |
| 9 | External and Internal Coating: | 100% fusion-bonded epoxy |
| 10 | Flange Drilled according to BS4504 table 10/11, 16/11; EN1092 PN10, PN16 | |
Material For Main Parts
| No. | Part | Material | Standard | |||
| US | BS | DIN | EN | |||
| 1 | Body | Ductile iron | BS2879 500-7 | DIN1693 GGG50 | EN1563 GJS500 | |
| 2 | Float guide | ABS | ||||
| 3 | Bolt | Zinc-plated steel | BS4190 | |||
| 4 | O-ring | EPDM | BS2949 | |||
| 5 | Cover | Ductile iron | BS2879 500-7 | DIN1693 GGG50 | EN1563 GJS500 | |
| 6 | Nut | Zinc-plated steel | BS4190 | |||
| 7 | Seat | EPDM | BS2494 | |||
| 8 | Gasket | EPDM | BS2494 | |||
| 9 | Cap | Nylon | ||||
| 10 | Screw | Stainless steel | BS970 304S 15 | |||
| 11 | Bracket | Nylon | ||||
| 12 | Hinge pin | Stainless steel | BS970 304S 15 | |||
Detailed Images
