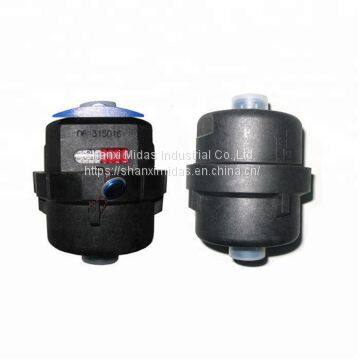

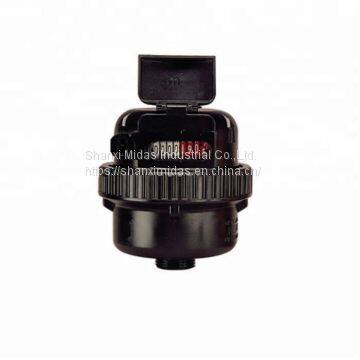

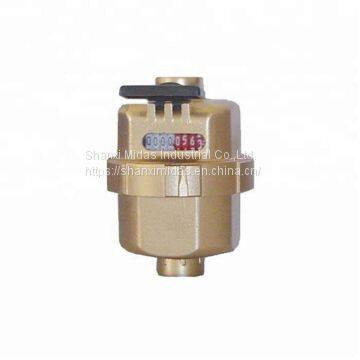

ISO 4064 Class C Plastic Body Volumetric Water Meter DN15
| 1 | Product name: | Volumetric rotary piston 2 inch cold water meter class c |
| 2 | Operating condition: | PN: 1.0/1.6 Mpa (10/16bar) |
| 3 | The water temperature: | Cold water up to 50℃ and hot water up to 90℃ |
| 4 | Standard: | ISO9001, ISO4064 |
| Medium Pressure: | General Water Meter | |
| 5 | Medium Temperature: | Hot Water |
| 6 | Size: | DN15 – DN20mm |
| 7 | Work Environment: | Liquid Sealed Water Meter |
| 8 | Counter Instructions : | Digital and Analogue |
| 9 | Level Measurement: | C, D |
| 10 | Application: | Measuring the volume of cold potable water passing through the pipeline |
| 11 | Brand name: | MDS |
| 12 | Certificate: | ISO,SGS and the third party inspection |
| 13 | Delivery detail: | within 20-30 days after receipt the 70% balance |
|
14 |
Packing: | Carton, pallet and as per customer's requirement. |
A)Suitable for horizontal, vertical and inclined installation
B)Liquid sealed register.
C)Durable tamperproof construction
D)Easy to read
E)Robust, leak-proof construction
F)Performance to ISO 4064 Class C
G)Maximum working temperature of 50 C
H)Maximum working pressure of 16 bar.
Quality:
•Optimum accuracy and performance at all times,in any position;
•Revolutionary grooved piston for improved,durability and performance;
•Durable tamperproof construction;
•Volumetric measurement by rotary piston method,wet mechanism,high accuracy,liquid-sealed reading.both horizontal and vertical type is available.
•Model LXH-15,20 is the world’s favourite domestic water meter,with over 50 million already in service in over 100 countries,and offers accuracy,long life,low maintenance and tamperproof operation.Available in sizes 15mm and 20mm,it offer unrivaled performance to ISO4064 Class C.
Main Technical Data
| Tpye | Meter Size | class | Maxflow |
Nominal Flow |
Transition Flow |
Min Flow |
Min Reading |
Max Reading |
|---|---|---|---|---|---|---|---|---|
| mm | m3/h | L/h | m3 | |||||
| LXH-15A | 15 | C | 3 | 1.5 | 22.5 | 15 | 0.0001 | 9999 |
| LXH-20A | 20 | C | 5 | 2.5 | 37.5 | 25 | 0.0001 | 9999 |
Dimensions and weight
| Tpye | Meter Size | Length | Wide | Heigh | Connecting Thread | weight |
|---|---|---|---|---|---|---|
| mm | D | kg | ||||
| LXH-15A | 15 | 110/115 | 85 | 115 | G 3/4B | 1.1 |
| LXH-20A | 20 | 130 | 85 | 125 | G 1B | 1.3 |

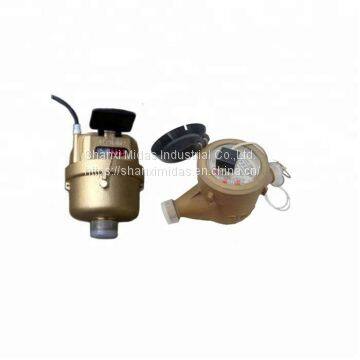

PULSE TRANSMITTING WATER METER
APPLICATION AND FEATURES:
•Applied for remote automatic reading system.
•Meter with pulse output: Available 1L, 10L, 100L or 1000L per pulse for choice.
•Water meter equipped with a Reed Switch Pulser which can be connected to remote reading systems. The
•Reed Switch Pulse sends out electric signals per a preset water quantity.
•Comes in several model variation, which indicate different pulse rates. To choose the variation best suited to your needs as per optional data in below diagram.
REED-SWITCH ELECTRIC DATA:
•Switch voltage: 24VAC/ DC
•Switch current: 0.01A max
OUTPUT DATA:
| Size | Pulse output | |||
|---|---|---|---|---|
| 1L/Pulse | 10L/Pulse | 100L/Pulse | 1000L/Pulse | |
| 15mm | v | v | v | v |
| 20mm | v | v | v | v |
Packing detail: Carton, pallet and as per customer's requirement.
1. How is your price?
Although we have brand-name products, our prices are very favorable and competitive.
Because of our best price, customers from all over the world come to purchase our products,
2. How long is your warranty?
Our Warranty is 12 month.
3. What’s your payment?
1) 100% T/T
2) 30% in advance, others before shipment.
3) Letter of credit.
4. What’s your beneficiary bank?
1) Alibaba one touch account
2) Alibaba Trade Assurance account
3) Shanxi Midas bank account
4) Paypal
5) Western Union
6) China's domestic RMB account
5. Could you specially design and produce for clients?
Sure, we have all kinds of professional engineers.We can design and produce special products according to customers' request.Such as: special size, special control, OEM, etc.
6. What’s the MIDAS main market?
Our main market is African, Middle East Countries, South American, Asian.
