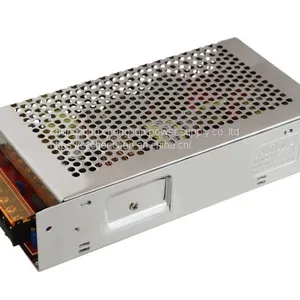

Help Center150W12V12.5A 24V6. 3A IP20 Interior Led Power Supplies for Signage Light Box Led Strips Led Modules
Related Products
-
200W 12V 24V IP20 Interior Led Power Supplies for Signage Light Box Led Strips Led ModulesUS$ 8 - 10MOQ: 1000 Pieces -
250W 12V 24V DC IP20 Interior Led Power Supplies for Signage Light Box Led Strips Led ModulesUS$ 9 - 11MOQ: 1000 Pieces
-
300W 12V25A 24V12.5ADC IP20 Interior Led Power Supplies for Signage Light Box Led Strips Led ModulesUS$ 12 - 14MOQ: 1000 Pieces
-
350W 12V 24VDC IP20 Interior Led Power Supplies for Signage Light Box Led Strips Led ModulesUS$ 12 - 14MOQ: 1000 Pieces
-
EW400W 12V 33A24VDC IP20 Interior Led Power Supplies for Signage Light Box Led Strips Led ModulesUS$ 12 - 14MOQ: 1000 Pieces
Model NO:
CLV012120N, 12V 12.5A, 150W
Input Parameter:
Input Voltage Range: 90-132Vac, 190~264Vac switchable
Input Frequency Range: 47~63HZ(Typ 50/60)
AC Current: ≤1.6A(100Vac, full load)
Output Parameter:
Dc Voltage Range:12V(NON-adjustable)
Rated Current: 12.5A
Max power: 150W
Ripple & Noise: ≤150mVp-P
Efficiency (Typ):≥83% Vin=220Vac,
Voltage Tolerance:±1%
Protection:
OCP(15-18A)
SCP(Hiccup model, automatically recovery after fault condition is removed)
Safety&EMC:
EN60950-1,EN55022
Hi-pot: I/P-O/P: 1.5KVAC/ 10mA/ 60S,I/P-FG:1.5KVAC/ 10mA/ 60S ,O/P-F/G: 500Vdc/10mA/1min
Isolation Resistance: 100MΩ Max/ 500VDC/ 3S
Others:
Working Temperature:-10℃ ~ +50℃
Cooling: ventilate by air convection
Working Humidity:5%~90%RH
Storage temperature: -20℃~+85℃
Dimension (L*W*H):199*98*42 mm
Carton Dimension: 43.5*30*29cm
Packing:28PCS/ 16.6KG/CTN/0.04CBM
MTBF:50K hours (MIL-HDBK-217F (25 )
| Model NO | Drive Mode | Output voltage | Output Current | Ripple&Noise | Efficiency |
| CLV012120N | CV | 12V±1.5V | 0-12.5A | 100mV | 83.0% |
| CLV024603N | CV | 24V±1.5V | 0-6.3A | 150mV | 84.0% |
| CLV036402N | CV | 36V±1.5V | 0-4.2A | 200mV | 85.0% |
| CLV048302N | CV | 48V±1.5V | 0-3.2A | 200mV | 85.0% |
