PVC Coil Car Mat Machine
Introduction:

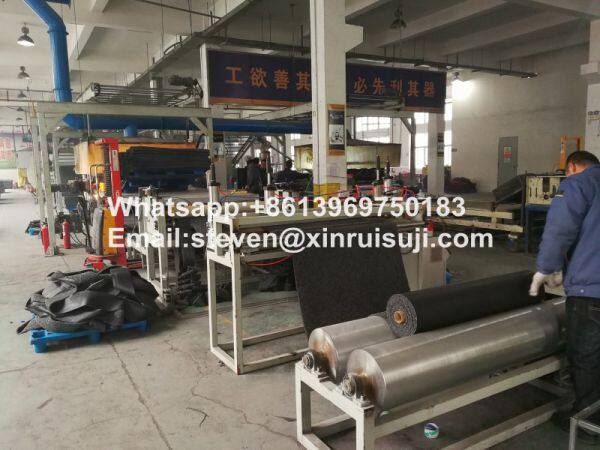

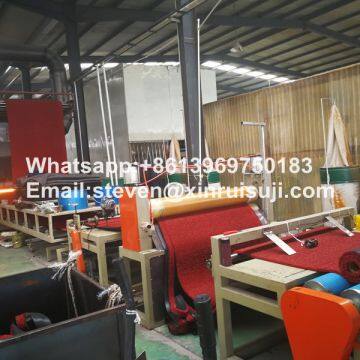

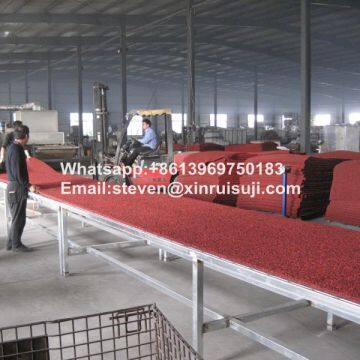

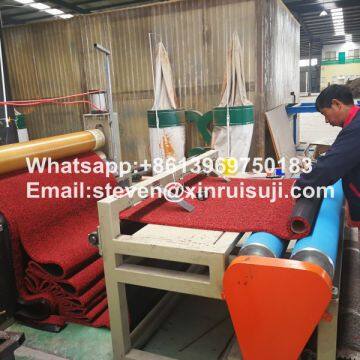

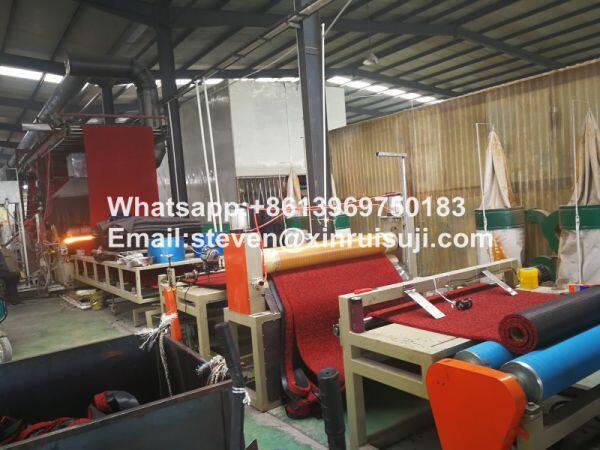

PVC Car Mat Production Line is including two lines,one line is for coil,another line is for back(spike back or nail back).Firstly,the coil would be produced from pvc coil machine,then put the coil in place along with pvc mat back production line,the coil and the back could be adhesive fully by the means of infra-red radiation heater.
Name |
PVC Coil car mat Machine |
PART A |
PVC Coil production line |
PART B |
PVC Spike back production line |
Total installed capacity |
300KVA |
Worker |
3-4 persons |
Material |
PVC+Stablizer+DOP+ESBO+Others |

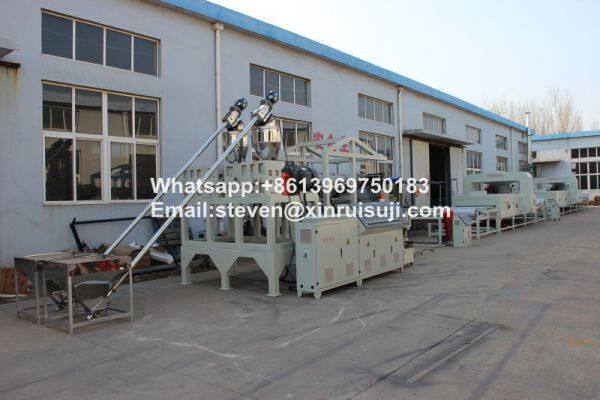

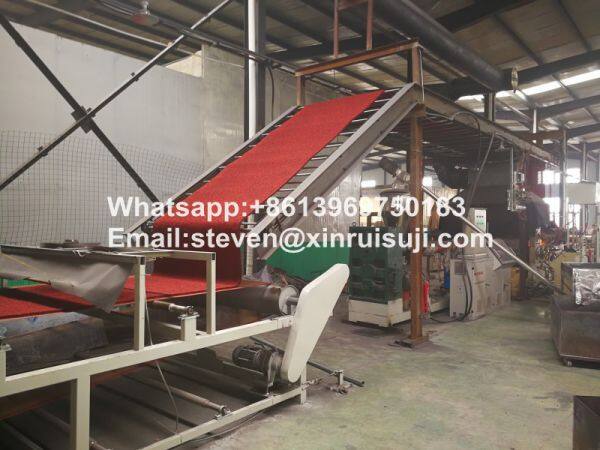

*1.PVC coil production line
Machine Feature:
Production line area |
(L*W*H) 40m*2.5m*3.2m |
Installed capacity |
260KW |
Line speed |
2.2-2.5m/min |
1.Adopting bigger gearbox directly connected with motor of stable and long-time service.
2.Adopting P20 material T-die is of better strength than 45# steel material.
3.Adopting 10m heating oven with full weld and thicker heat insulation material of better heat conservation and save large power consumption.Shorter heating time to save half waiting time and reduce material waste compared to traditional oven.
4.Adopting SIEMENS motor,ABB inverter,Schneider contactor,RKC temperature controller, famous brand of electrical component to ensure long working time and global after-sales service.
*2.PVC spike(nail) back production line
Machine Feature:
Production line area |
(L*W*H) 17m*3.3m*2.5m |
Installed capacity |
130KW |
Line speed |
4-5m/min |
1.Adopting bigger gearbox to ensure stable running and long-time working time.
2.Adopting P20 material T-die is of better strength than 45# steel material.
3.Adopting L-shaped three-roller calendering machine,roller is circulated with water.Roller is easier to be assembled and disassembled.
4.Adopting fixed-length transversal cutter and edge cutter.
5.Adopting SIEMENS motor,ABB inverter,Schneider contactor,RKC temperature controller,famous brand of electrical component to ensure long working time and global after-sales service.

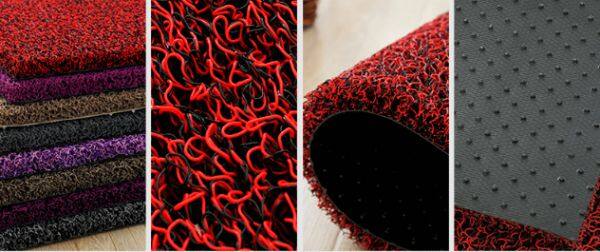

Finished Product:
Dimension |
Width:1220mm,Thickness:8-20mm, Length:customized |
Weight |
3.8-7kg/sqm |
Color |
Single color or double color |
Feature |
Waterproof,Dustproof,Flame retardancy,Anti-corrosion,Anti-shrinkage |
