Home > Products > Galvanized Iron Wire > BWG 21 22 20 Binding Electro Galvanized Steel Iron Wire

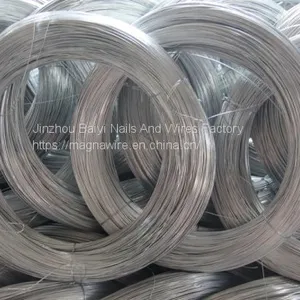

BWG 21 22 20 Binding Electro Galvanized Steel Iron Wire
- Tianjin
- T/T L/C
You May Like
Product Details
| Brand Name | BAIYI | Place of Origin | China | |
| Type | Flat Wire | Function | Binding Wire | |
| Surface Treatment | Black | Wire Gauge | 0.7mm-4.0mm |
Product Description
Galvanized Iron Wire
Introduction
Galvanized Iron Wire can be classified into Electro galvanized wire and Hot-dipped galvanized iron wire according to the difference zinc coating process.Most galvanized iron wire are used in construction,or daily use as binding materials,weaving of galvanized wire mesh,craftwork,etc.
Specification
Material:Low carbon steel Q195
Diameter: 0.71mm-4.00mm
Tensile Strength:340-500/mm2
zinc coating:20-240g/m2
Weight: 1kg to 100kgs per coil or According to customer's request
Packing: Inside plastic film+Outside hessian(or Outside woven bag)
Production Sequence
Steel rod coil→Wire Drawing→Wire Annealing→Rust Removing→Acid Washing→Boiling→Zinc Feeding→Drying→Wire Coiling
Galvanzied iron wire size
| wire gauge size | SWG(mm) | BWG(mm) | metric(mm) |
| 8 | 4.06 | 4.19 | 4.00 |
| 9 | 3.66 | 3.76 | _ |
| 10 | 3.25 | 3.4 | 3.50 |
| 11 | 2.95 | 3.05 | 3.00 |
| 12 | 2.64 | 2.77 | 2.80 |
| 13 | 2.34 | 2.41 | 2.50 |
| 14 | 2.03 | 2.11 | - |
| 15 | 1.83 | 1.83 | 1.80 |
| 16 | 1.63 | 1.65 | 1.65 |
| 17 | 1.42 | 1.47 | 1.40 |
| 18 | 1.22 | 1.25 | 1.20 |
| 19 | 1.02 | 1.07 | 1.00 |
| 20 | 0.91 | 0.89 | 0.90 |
| 21 | 0.81 | 0.813 | 0.80 |
| 22 | 0.71 | 0.711 | 0.70 |
