One.Product data:

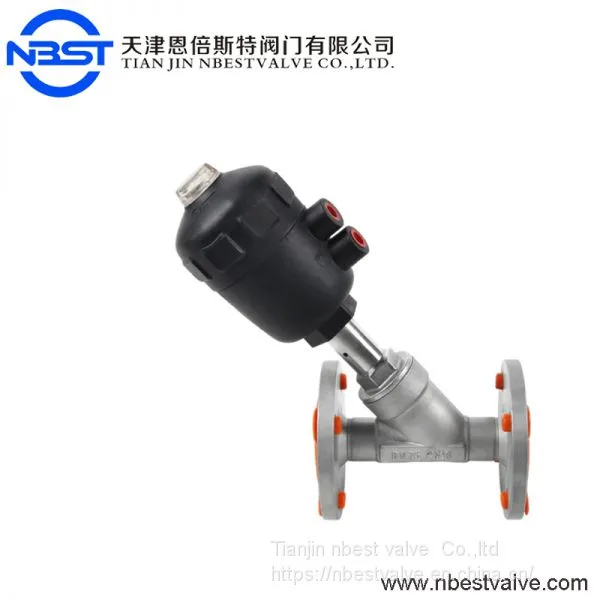

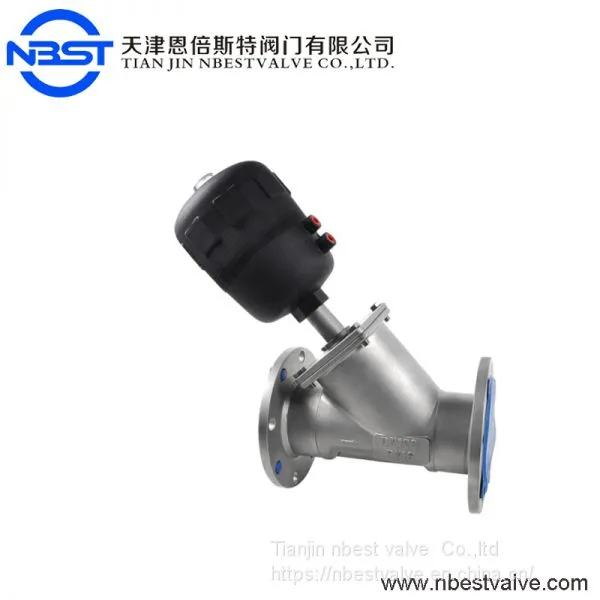

DN32 SS304 body pneumatic angle seat valve
a.Features:
Body material:304,316,316L
Spool material: 304,316,316L
Seat material: PTFE,F46
Nominal size: DN15-DN100mm
Applicable temperature: PTFE:-30℃~180℃
F46: -30℃~220℃
Actuator must be used stainless steel material
Ambient temp.:-30℃~80℃
Nominal pressure: 1.6Mpa
Connection type: Flange
Design standard: GB, ANSI, DIN, ISO
Control type: Single acting, air to open type
Single acting, air to close type
Double acting
Actuator material: Polyamide PA, stainless steel
Optional accessory: Solenoid valve, limit switch box, positioner, etc.
V
Size |
Inch |
Inner diameter |
Kv Value |
The max. pressure differential |
Air supply |
The cylinder bore |
Flow direction |
|
DN10 |
3/8’ |
10 |
3.7 |
0-16bar |
4-7bar |
50 |
Steam, gas, Flow above seat |
|
DN15 |
1/2’ |
15 |
4.2 |
50 |
||||
DN20 |
3/4’ |
20 |
8.0 |
50 |
||||
DN25 |
1’ |
25 |
19.0 |
63 |
||||
DN32 |
1-1/4’ |
32 |
27.5 |
63 |
||||
DN40 |
1-1/2’ |
40 |
42.0 |
63 |
Liquids, gas Water hammer-free Flow below seat |
|||
DN50 |
2’ |
50 |
55.0 |
80 |
||||
DN65 |
2-1/2’ |
65 |
90 |
100 |
||||
DN80 |
3 |
80 |
100 |
|||||
DN100 |
4 |
100 |
125 |
Size |
Inch |

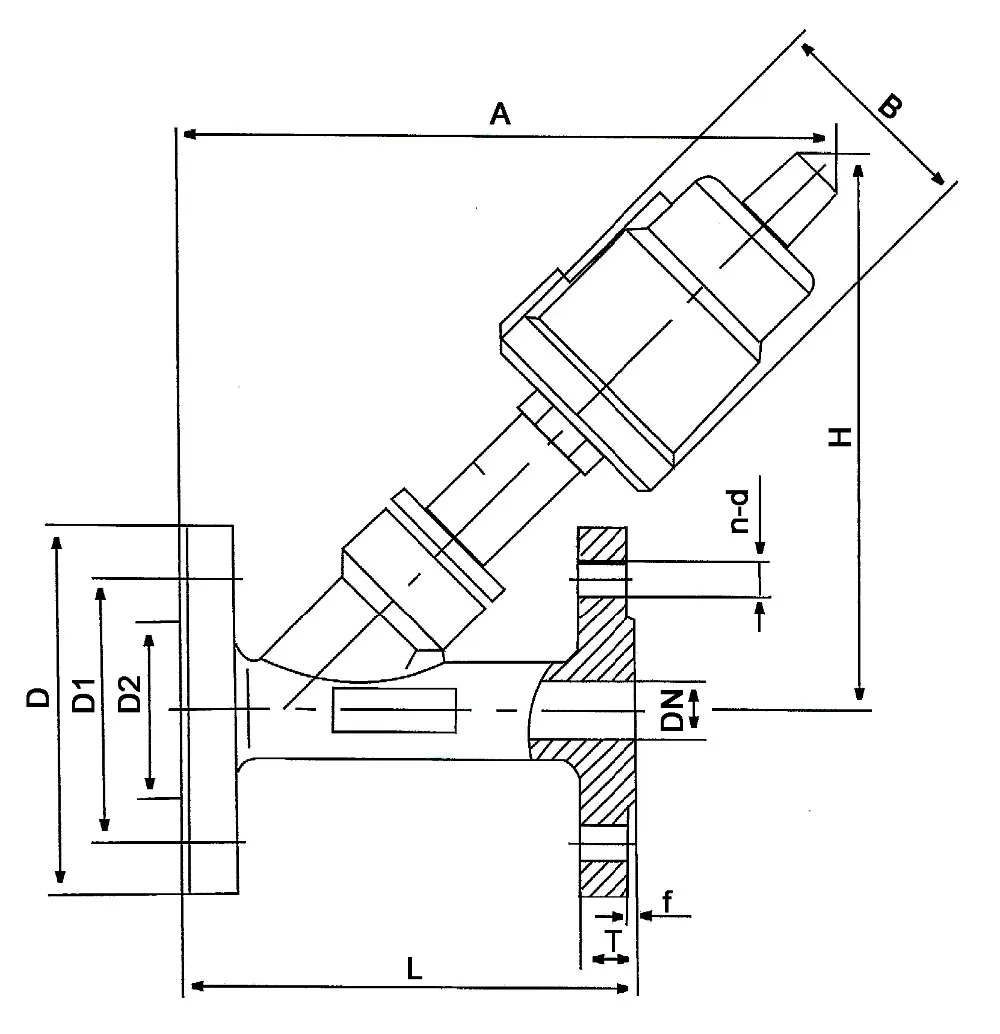

Flanged pneumatic angle seat valve |
Weight |
|||||||||
L |
D |
D1 |
D2 |
A |
B |
H |
C |
f |
N-d |
|||
DN10 |
3/8’ |
2.01 |
||||||||||
DN15 |
1/2’ |
120 |
95 |
65 |
40 |
180 |
64 |
137 |
14 |
2 |
4-14 |
2.10 |
DN20 |
3/4’ |
130 |
105 |
75 |
50 |
185 |
64 |
145 |
14 |
2 |
4-14 |
2.35 |
DN25 |
1’ |
140 |
115 |
85 |
60 |
210 |
80 |
173 |
14 |
2 |
4-14 |
3.5 |
DN32 |
1-1/4’ |
150 |
135 |
100 |
70 |
240 |
80 |
210 |
16 |
2 |
4-18 |
5.5 |
DN40 |
1-1/2’ |
180 |
145 |
110 |
80 |
245 |
80 |
260 |
16 |
2 |
4-18 |
7.1 |
DN50 |
2’ |
195 |
160 |
125 |
92 |
295 |
100 |
300 |
16 |
2 |
4-18 |
11.75 |
DN65 |
2-1/2 |
230 |
185 |
145 |
115 |
320 |
126 |
315 |
18 |
2 |
4-18 |
14.1 |
DN80 |
3 |
250 |
195 |
160 |
130 |
330 |
126 |
330 |
18 |
2 |
8-18 |
20.25 |
DN100 |
4 |
280 |
215 |
180 |
150 |
350 |
156 |
350 |
18 |
2 |
8-18 |
2.35 |
