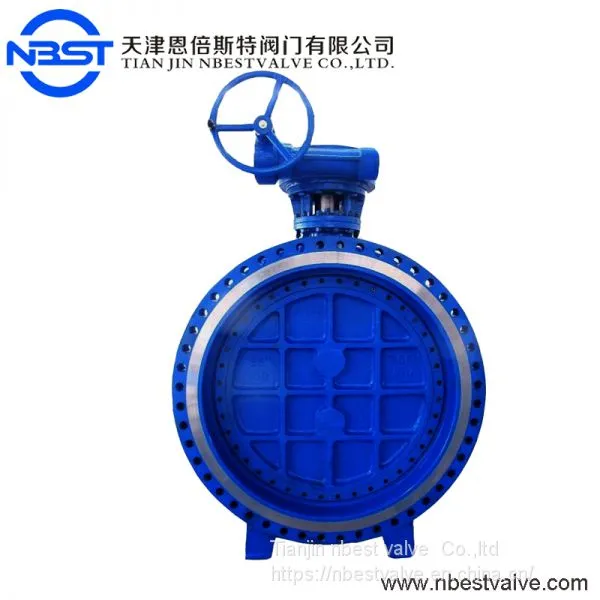

Worm Gear Seawater Butterfly Valve High Performance 150LB A216 WCB

One.Product data:

 API 609 Triple Eccentric Butterfly Valve 150LB A216 WCB

Nominal Diameter DN50~DN4000 or NPS2-NPS160

Material Gray Cast Iron,Ductile Cast Iron,A216 WCB,A217 WC6,A351 CF8/CF8M

Nominal Pressure 150LB,300LB,600LB

Connection Flange/Wafer/Butt Weld

Seat Material Metal Seat

Operation Worm Gear/Pneumatic/Electric

Structure Type Triple offset

Medium Steam,Water,Oil,Gas, Acetic Acid,Nitric Acid and Other corrosion media

Certificate CE&ISO9001:2008,API6D,API609

Application Power Generation, Petroleum and Chemical, Refinery and Water Treatment

Design Standard ASME B16.34

Flange Standard ASME B16.5,ASME B16.47

Face to face dimension API609

Pressure Test Standard API598

Packing Details plastic bags+plywood case

Shipping Port Ningbo/Shanghai/Tianjin,China

Shipment Terms FOB/CIF/CFR/EXW,ETC

Two.Related products

Patent products are the core competitiveness of enterprises. Products including butterfly valves, gate valves, ball valves, check valves, globe valves, Y type strainer, water power controlling valves and pressure regulating valves. With pressure rating ranging from 0.6Mpa to 10Mpa and port size from DN40 to DN3000. These valves can be operated manually, electrically, pneumatically, hydraulically, and elector-hydraulically, with reference to ANSI, API, DIN, BS, JPI, and JIS standards and China's GB standards.

Three.Company profile

Tianjin Nbestvalve Co., Ltd. was established in 2002, headquartered in No.21,No.1 Building, Ronghui Business Zone, Zhongguancun technology Park, Binhai New District, Tianjin, China. With the rapid development of the most dynamic Chinese Bohai Economic Rim, Our company, production, sales and manufacturing test capabilities, with independent import and export rights, is a science, industry and trade as one of the group enterprise.

Four.Aplication Area

a. Domestic sewage treatment.

b. industrial wastewater treatment.

c. industrial irrigation treatment.

Five.Packing and Freight

Six.FAQ

Q: Are you trading company or manufacture?

A: We are factory located in Tianjin, China.

Q: What's your product range?

A: We specialize in product butterfly valves, gate valves, check valves, Y type strainer, water controlling valves,motorized valves,pneumatic valves,hydraulic valves and other pipe accessories.

Q: What's execution standard?

A: ISO/ANSI/DIN/JIS/EN/GOST standard.

Q: What's your strong product?

A: Concentric butterfly valves, grooved butterfly valves, dual plate check valves.

Q: Do you provide sample? Is it free or extra?

A: Yes, we could offer the sample for free charge but do not pay the cost of the freight.

Q: How long is your delivery time?

A: Generally it is 7 days if the good are in stock, or it is 20 days if the goods are not in stock, it is according to the quantity.

Q: What is your terms of payments?

A: Payment ≤10000 USD, 100% in advance. Payment ≥10000USD, 30% T/T or other ways in advance, balance before shipment.
