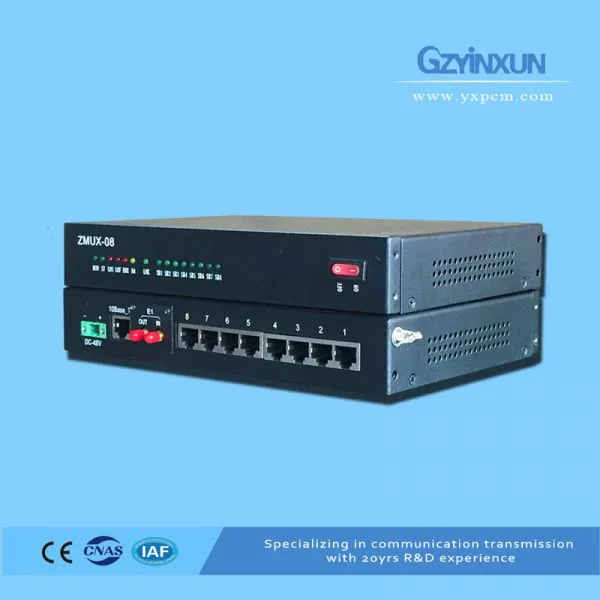

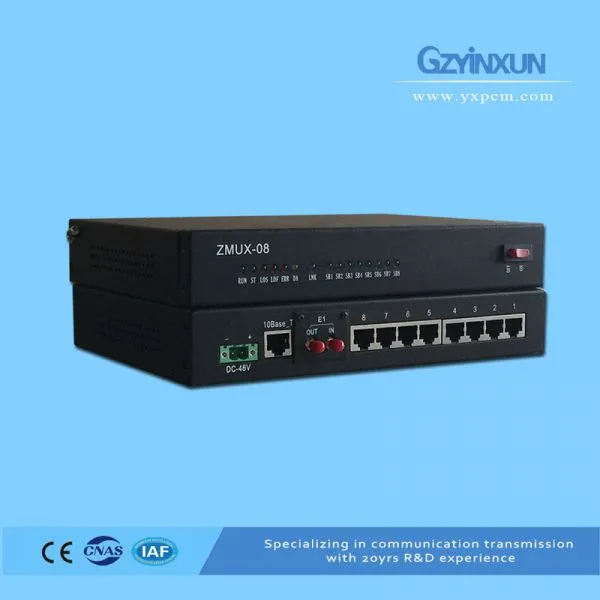

ZMUX-08E is a interface module design, flexible configuration according to client’s requirement. It has 8 cards, each one is a single & individual card. The device is mini size,small body,1U height, easy to install and maintain. It is with indicator,which show the operating status of the equipment.

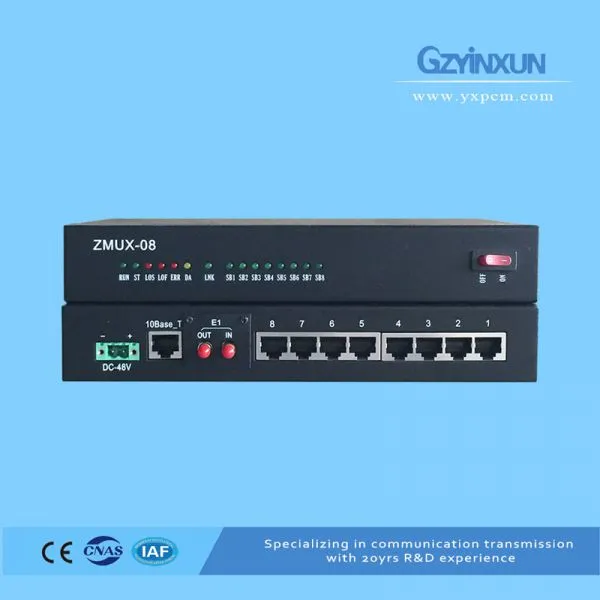

Schematic diagram of ZMUX-08E
| Interface NO. | Interface Name | Instruction |
|---|---|---|
| ① | Link interface | 1 channel E1 (2M) electrical port, 75Ω or 125 Ω optional |
| ② | User interface | 8 channels user interface, designed as modular.It can be inserted according to application . (RS232,RS485,RS422,HOT,FXS,FXO,4W E&M etc) |
| ③ | User interface | 1 channel Ethernet interface (Optional, modular) |
| ④ | indicator | Equipment alarm indicator lights, running lights. |
| ⑤ | Power supply interface | -48V DC power supply plug (green), power switch (red). |
| ⑥ | Switch | The power switch |
* 1-8 service interfaces,1 module corresponding to 1 channel user interface, customize client’s requirements
* support FXO/FXS/HOT/MAG/4WEM/2WEM/ G.703 /RS232/ RS422/ RS485/Ethernet/ V.21 etc.
* 1 channel E1 interface conforms to ITU-T G.703, 75Ω or 125Ω optional.
* flexible configuration and expansion
* alarm function, support self loop testing
* AC220V/DC-48V/AC220V+DC-48V
ZMUX-08E is self-R&D producted by Yinxun, and we have exported a lot to overseas. The device is widely used in 1-2 channel business. It is simple,stable and reliable. We support ODM, OEM, as well as technical cooperation.
