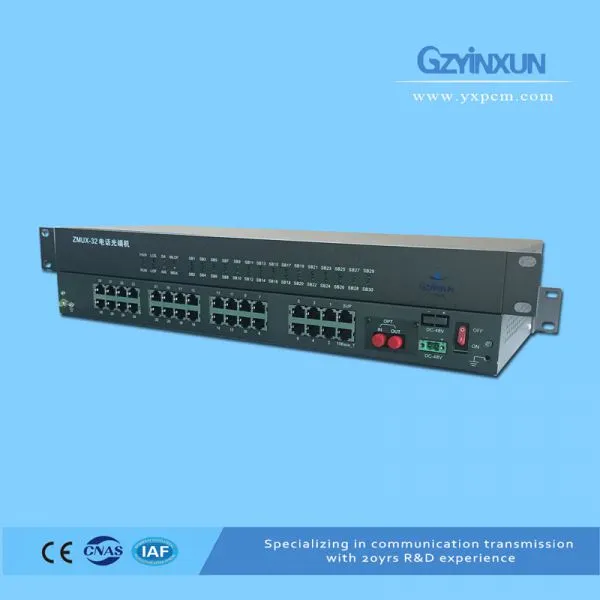

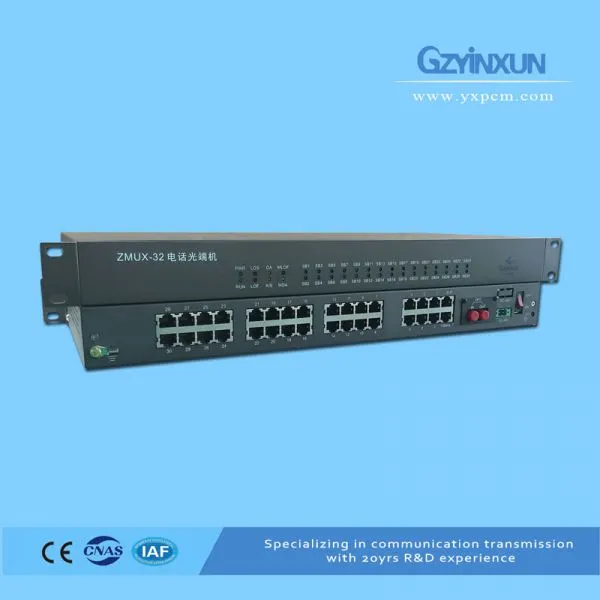

ZMUX-32 is interface modular design, and supports very flexible configuration, according to the customers’ requirement. The business interface module is a single card, to meet the needs of customers. It adopts 1U height standard 19inch rack mountable case, easy to install and maintain. It has indicator light, which can show the operating status of the equipment. The device is widely used in electric power, military, maritime, railway, mining, oilfield, government, group companies, etc and get good feedbacks from clients.
A diagram of ZMUX-32
| Interface NO. | Interface Name | Instruction |
|---|---|---|
| ① | Link interface | 1 channle fiber interface, optional: single or dual fiber, single-mode or multimode, SC or FC, 40km or 80km or 100km. |
| ② | User interface | 30 channels user interface, designed as modular.It can be inserted according to the actual application (Compatible: voice calls, 4W audio, RS232,1 channel 10Base-T Ethernet interface (10M bandwidth). |
| ③ | System indicator | Equipment alarm indicator lights, running lights. |
| ④ | Power supply interface and Switch | -48V DC power supply plug(green),power switch(red). |
| ⑤ | Ground terminal | Equipment grounding |
* 1-30 service interfaces and 1 port Ethernet,1 module corresponding to 1 channel user interface, customize requirements
* support FXO/FXS/HOT/MAG/4WEM/2WEM/ G.703 /RS232/ RS422/ RS485/ V.21/V.22/V.23/V.34/V.35/CAN/ADS-B radar/VHF/Synchronous radar data/Meteorological self-contained data/Transfer data/Weather radar data/Blind drop data etc.
* 1 channel fiber interface,dual fiber/FC/40KM(single fiber / dual fiber / single mode,/multi-mode/SC/FC, 40km/80km/100km optional)
*transmission distance:20KM/40KM/80KM/100KM
* flexible configuration and expansion
*support CRC switch
* support external alarm output function.
* support high impedance recording
* AC220V/DC-48V/AC220V+DC-48V
ZMUX-32 is self-R&D producted by Yinxun, and we have exported a lot to overseas. It is very stable and reliable, international standard. We support ODM, OEM, technical cooperation
