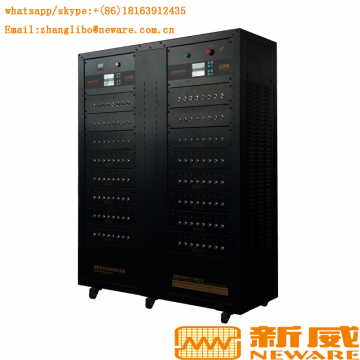

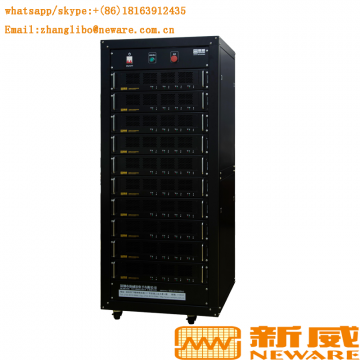

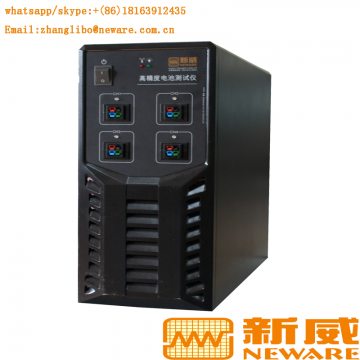

Home > Instruments & Meters > Test Instrument > Battery Tester > Neware Highes Precision With Quard Current Range Tester
US$ 6000 - 10000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Neware
Place of Origin:
China
Model Number:
BTS-9004-5V5A
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
35 days
Related Products
-
Neware High Precision and Programmable Charge&Discharge Battery Tester for Battery Material Research and Punch Cell TestUS$ 8000 - 9000MOQ: 1 Set -
Neware High Precision Charge&Discharge Battery Tester With GSM TestUS$ 6000 - 10000MOQ: 1 Set
-
Neware 0.05% High Precision Cycle Life Tester for Next Generation Battery Material ResearchUS$ 8000 - 9000MOQ: 1 Set
-
Neware 0.02% High Precision With Quard Current Range Swifly Automatically for Pouch ResearchUS$ 6000 - 10000MOQ: 1 Set
-
Neware Pouch/coin Cells Material Analyzer With Pulse TestUS$ 6000 - 10000MOQ: 1 Set
Brand Name
Neware
Place of Origin
China
Model Number
BTS-9004-5V5A
Neware High Precision Battery Testing Equipment for Battery Materials Research And Pouch Cell Test
Technical Specification:
| Description | Specification | |
| AC Input | AC 220V +10% / -20%, 50Hz; | |
| Resolution | AD:16bit;DA:16bit | |
| Impedance input | ≥ 500MΩ | |
| Input power | 250 w | |
| Channel Feature | Independent pairs of closed loops for constant current source and constant voltage source | |
| Channel control mode | Independent control | |
| Voltage | Measuring Range | Charge:0.7V~5V;Discharge:0.7V~5V |
| Discharge Min Voltage | 0.7 V(0.5M wire length) | |
| Accuracy | ± 0.02% of FS | |
| Stability | ±0.005% of FS | |
| Current | Measuring Range | Range1: 0.1uA---150uA |
| Range2:140uA---5mA | ||
| Range3:4.5mA---150mA | ||
| Range4: 140mA---5A | ||
| Accuracy | ± 0.02% of FS | |
| Range1: ± 30nA | ||
| Range2:± 1uA | ||
| Range3:± 30uA | ||
| Range4: ± 1mA | ||
| Stability | ±0.005% of FS | |
| Power | Max Output Power Per Channel | 25W |
| Stability | ± 0.01% of FS | |
| Time | Rise Time | <= 100μS (10% to 90% or 90% to 10%); |
| Step Time Range | >=10ms | |
| Data acquisition | Intervals | Time△t:>=1ms |
| Voltage△U:>= 1mV | ||
| Current△I:>= 100nA | ||
| Frequency | 1000Hz(Continuous charging and discharging mode) /Individual pulse recording (GSM pulse mode) | |
| Charge | Charge Mode | CC, CCCV, CV, CP, CR |
| End Conditions | Voltage, Current, △t, Capacity, Energy, Power | |
| Discharge | Discharge Mode | CC, CP, CR, Pulse |
| End Conditions | Voltage, Current, △t, Capacity | |
| Pulse | Charge | CC |
| Discharge | CC | |
| Min. pulse width | 400μs | |
| Pulses counts | Up to 16 changes in each pulse | |
| End conditions | Voltage, △t | |
| DCIR | Can be calculated by software | |
| Cycle | Max cycles | 1~65535 |
| Max steps in each cycle | 255 | |
| Max cycle nest | 4 | |
| Protection | Safety protection | Power-off data protection |
| Off-line operation mode | ||
| User-defined protection conditions, such as upper and lower limited current/voltage, delay time, temperature, etc.; | ||
| Data acquisition method | Kelvin connection | |
| Database | MySQL | |
| Communication | TCP/IP(100M Ethernet) | |
| Data export | EXCEL2003,2010,TXT | |
| Communication Interface | Ethernet port | |
| Channels | 4 | |
| Dimensions | W*D*H:443*615*125(mm) | |
| Clamps | 204 Air-plug, Polymer or alligator available | |
| Operating system | Windows 7 64Bit | |
Application:
GSM test,pulse test,capacity test,cycle life test,DCIR test,charge&discharge test,Electrochemistry Research and so on.
Warraty: 1 year
Delivery: 7days after deposit
