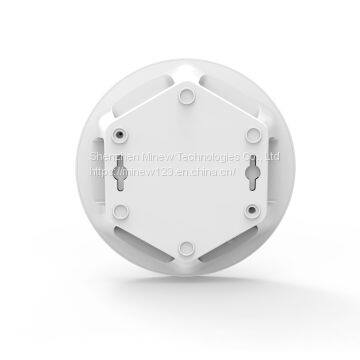

G1 is a Bluetooth 5.0 low energy (BLE) to Wi-Fi connectivity gateway without the uses of smartphones or apps. The G1 gateway collects the data from iBeacon, Eddystone, BLE sensor and other BLE devices,
and then sends to the local TCP server or remote cloud server by HTTP / MQTT / mbed (ARM) protocol over Wi-Fi / Ethernet / Cellular.The user is easy to configure the G1 gateway via a very simple web UI.
● Input: DC 5.0V, 1A, micro-USB
● Supports 802.3af PoE standard
● Supports firmware upgrade Over-the-Air
● Operating temperature: -25℃ to 65℃
● Reads multiple BLE devices in the same time
● Supports TCP/HTTP/MQTT/mbed(ARM)
● Built-in RTC and NTP support
● RGB LED string as the status indicator
● Based on OpenWrt 15.05
● Up to 150 Mbps PHY data rate
● With 3dBi flexible FPC antenna
● 100 meters range in open space
● 1T1R 2.4GHz frequency band
● IEEE 802.11b/g/n
● Web based UI for configuration
● Connects to the local server or remote cloud
● Bluetooth 5.0 hardware nRF52832
● With a power amplifier
● With 3dBi flexible FPC antenna
● 300 meters range in open space
● Rx sensitivity -108dBm
● Bi-directional (reads data / sends command)
Detect and collect the data of bluetooth device in ranges,
Including all popuar protocols : iBeacon, Eddystone as well as custom sensor format. G1 bluetooth&wifi gateway can work perfectly with our Minew beacon device
Send all the data to the local TCP server or remote cloud server by HTTP / MQTT / mbed (ARM) protocol
Quickly locate assets, keep track of patients and staff, while monitoring any array of sensors
Collect, analyse, and share valuable insights about the movements and trends of Assets and Personnel within your organisation, office, or commercial premises. Save money and increase productivity through better space utilisation powered by Minew products
Improve the safety of your construction site by easily monitoring, in real time, when and where contractors check in/out of your project site. Increase response times, improve evacuation times, and drive down costs through smarter asset and personnel management
Deploy, manage, and monitor your industrial or engineering project faster using G1 Gateway. Using G1 gateware you will be able to deploy, scan, and communicate your BLE data with ultimate easy and versatility, giving you full control on how, when, and where to send your BLE data
