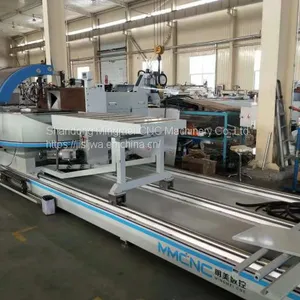

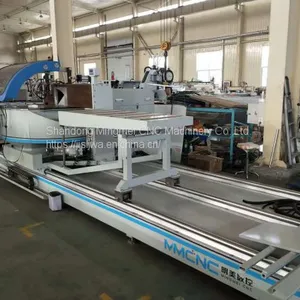

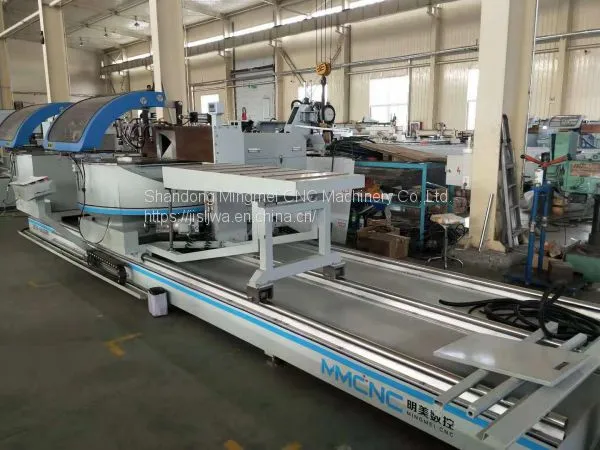

Arbitrary Angle Double-head Cutting Saw CNC
SKZXR-600*5300
Euipment Feature
1.It is mainly used for processing of extra-wide aluminum profile,also can be used to process aluminum profile vertical end-face material -discharging. Adopt servo motor to drive reducer ,implement saw blade rotating positioning at any angle between 45°-90°.
2.It is new designed to meet the development of modern aluminum curtain wall,aluminum template processing industry and radiator industry.
3. Adopt servo motor to drive reducer,implement saw blade rotating positioning at any angle between 45°~90°.
4. Two cutting heads can swing positioning at any angle between 45°~90°
5.separately,moveable head feeding material continuously,fixed cutting head cutting circularly;but also can work simultaneously ,can cut needed length and profile two ends angle at one time.
6.Hard alloy teeth cutting blade,high cutting speed、high produce efficiency 、high process accuracy.
Technical Parameter
Power supply 3 Phase four wire 380v 50HZ
Cutting head motor Power 2*3kw
Rotate speed 2800r/min

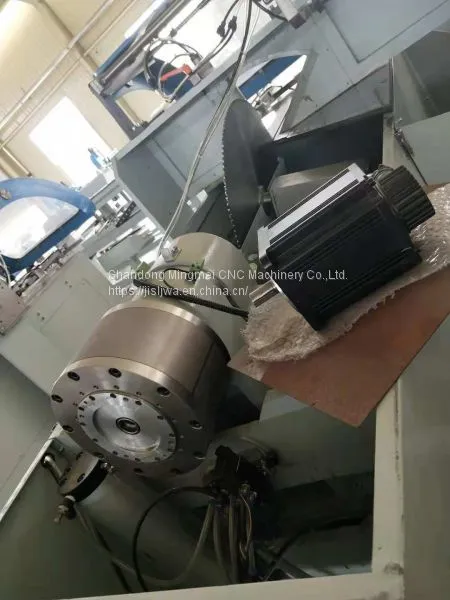

Saw blade swing angle servo motor power 2*0.9 kw
Cutting head horizontal move servo motor power 1.5kw

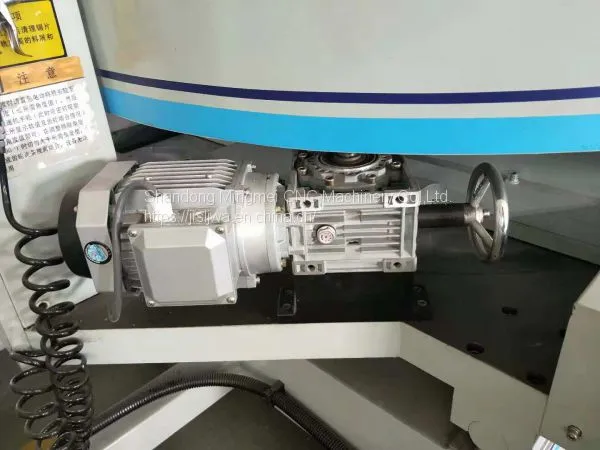

Cutting head turn angle motor power 2*0.55kw
Working air pressure 0.5-0.8 mpa
Saw cutting length max 5300mm
Saw cutting width*height max 500*180mm 90°
Saw cutting height Max 210mm 90°
Saw cutting angle blade 45°~90°arbitrary angle
Cutting head 45°~90°arbitrary angle
Cutting feed speed stepless speed regulation 0-3m/min
Blade specification φ600x4.4x φ30mm Z=120
Overall size 7500*2450*1700mm
Weight about 5000kg
