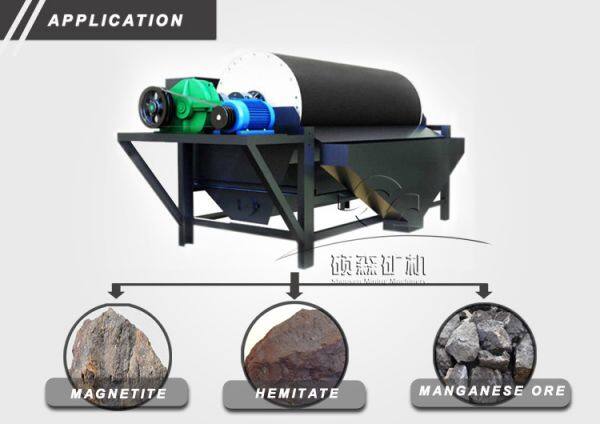

Application of Magnetic separator
Magnetic separator is a continuous automatic iron removal magnetic separation equipment from dry power. It s inner adopts unique magnetic circuit design, it make the high-performance permanent magnet king NdFeB materials as the magnetic source, strong magnetic field, big attraction force, high iron removal rate, has the advantages of three maintenance, energy conservation, safe and reliable operation, feed quantity can be adjusted, used for different particles requirements. The magnetic separator is widely used in abrasives, refractories, nonmetal beneficiation, carbon black, grain, feed, chemicals and other industries.
Technical Parameters of Magnetic separator
|
Model
|
Drum diameter mm |
Drum length mm |
Rotary speed (r/min) |
Feeding Granularity(mm) |
Capacity (t/h) |
Power (Kw) |
CTB6012 |
600 |
1200 |
2-0 |
10-20 |
1.5 |
|
CTB6018 |
600 |
1800 |
2-0 |
15-30 |
2.2 |
|
CTB7518 |
750 |
1800 |
2-0 |
20-45 |
2.2 |
|
CTB9018 |
900 |
1800 |
3-0 |
40-60 |
3 |
|
CTB9021 |
900 |
2100 |
3-0 |
45-60 |
3 |
|
CTB9024 |
900 |
2400 |
3-0 |
45-70 |
4 |
|
CTB1018 |
1050 |
1800 |
3-0 |
50-75 |
5.5 |
|
CTB1021 |
1050 |
2100 |
3-0 |
50-100 |
5.5 |
|
CTB1024 |
1050 |
2400 |
3-0 |
60-120 |
5.5 |
|
CTB1218 |
1200 |
1800 |
3-0 |
80-140 |
5.5 |
|
CTB1224 |
1200 |
2400 |
3-0 |
85-180 |
7.5 |
|
CTB1230 |
1200 |
3000 |
3-0 |
100-180 |
7.5 |
|
CTB1530 |
1500 |
3000 |
3-0 |
170-280 |
11 |
If you want to know more about our equipments details,please contact us
