Product Description

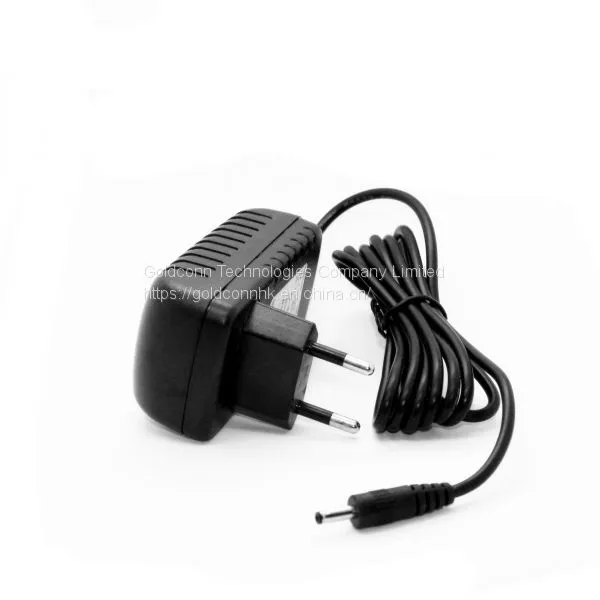

2V 1A CE FCC GS certified US standard AC/DC adapter
Input & Output |
Voltage/Frequency Range |
100~240VAC 50/60Hz |
Input Current |
≤0.3A |
|
Rated Output |
5V~15V;1A~3A;45W(Max) |
|
Line/Load Regulation |
±2% / ±5%> |
|
Ripple&Noise(Max) |
≤>200mV |
|
Reliability |
Withtand Voltage |
I/P-O/P:3KVAC,60s, 5mA> |
Leakage Current |
0.25mA / 240VAC> |
|
Isolation Resistance |
I/P-O/P:100M Ohms / 500VDC / 25 / 70% RH> |
|
MTBF |
30000hrs full load,based on MIL-HDBK-217F(25℃>) (>30000hrs , MIL-HDBK-217F(25℃>) |
|
Temperature Rise |
80~100% load, 4hours |
|
Protection |
Over Load |
>105% rated output power |
Over Current |
110%-150% rated output current |
|
Short Circuit |
Recover automatically after fault condition is removed |
|
Safety |
Safety Standard |
UL60950-1, CSA22.2,IEC/EN60950 IEC/EN60065> |
EMI |
Compliance to FCC part15 class B, EN55022, EN61204-3 class B> |
|
EMS Immunity |
Compliance to EN61000-4-2,3,4,5,6,8,11, ENV50204> |
|
Harmonic Current |
Compliance to EN61000-3-2,3> |
|
EnViroment |
RoHS |
Compliance to CPSIA(H.R.4040 |
No Load power consumption |
||
Efficiency |
IV or V> |
|
Package |
Dimensions |
93×47×54mm (L*W*H) |
Packing |
PE bag or white box> |
|
Environment |
Working Temp |
0 ~ +50 (℃>)> |
Working Humidity |
20% ~ 90% RH non-condensing> |
|
Storage Temp |
-20~85(℃>),10 ~ 95% RH |
