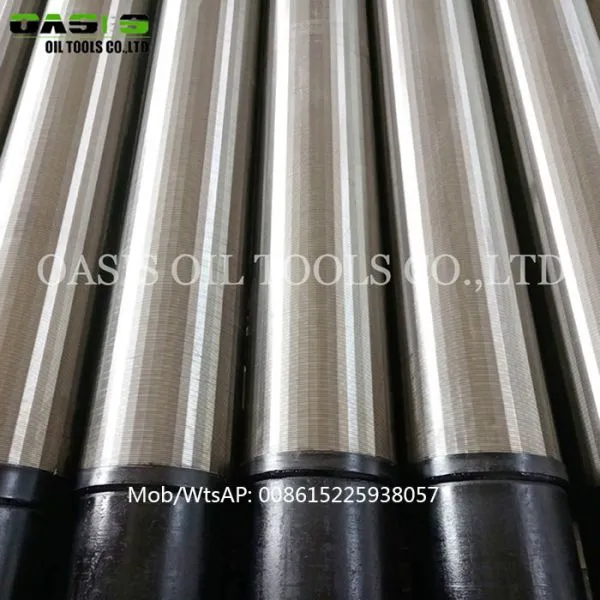

Help Center8'' 12'' Wedge Wire Wrapped Well Screens and API Perforated Base Pipe
Related Products
-
304 Material Pipe Based Wire Wrapped Screens Square Slot StrainerUS$ 125 - 285MOQ: 10 Pieces -
API 5CT Perforated Casing Pipe and Tubing With Stc ConnectionUS$ 125 - 285MOQ: 10 Pieces
-
API 5CT J55 K55 N80 Perforated Casing Pipe and Tubing With Stc ConnectionUS$ 125 - 285MOQ: 10 Pieces
-
Water Well Screen With Base Pipe, All-welded Wedge Wire Screeen and Supporting RodUS$ 53.36 - 88.65MOQ: 10 Pieces
-
Welded Double Layer Pipe Based Well Screens With Johnson Screen JacketUS$ 53.36 - 88.65MOQ: 10 Pieces
Perforated Pipe
1.Standard:ASTM, GB, JIS, DIN, EN, AISI
2.Material grades: TP304 TP304L TP316 TP316L J55 K55 N80 etc,
3.Outer diameter:4mm-914.4mm
4.Connection:STC, BTC, LTC, BSP,Flange,etc.
5.Thickness:0.6mm - 60mm
6.Length:5.8-11.8 m or as customers' request R1(4.88-7.62m), R2(7.62-10.36m), R3(10.36-14.63m)
7.Hole size: 5-20mm
8.Surface:Picking and passivated, Polishing
9.Test:UT, ET, HT, RT, ect, and others according to the standard, or as the requests of the customers
Perforated pipes for sale with API 5CT standard used for water and oil filter:
1).perforated casing pipe filter
2).different diameter range
3).competitive price
4).high quality and service
5).customized
Features of Perforated Pipes:
1).Our perforated pipes use API J5/K55/N80 casing and tubing.With strong overall stengh,the peforaled pipes are not easy to deform.
2).The holes are uniform and smooth without burrs.
3).The whole pipe is anticorrosion treated to prolong the service life.
4).Easy to operate and to be connected with larger inner diameter.
5).Hole diameter and quantity can be customized.
Packing:
1: The perforated pipe was wraped by plastic/bubble bag..
2: Ship package is container
Specifications of ASTM A312 Stainless Steel 316L Perforated Well Casing/Perforated Tube Pipe:
| Pipe size(inch) | Holes per (feet) | Size of hole(inch) | Perforated Area per feet |
| 3/4” | 78 | 3/16” | 2.15 |
| 1” | 54 | 5/16” | 4.14 |
| 1-1/4” | 66 | 5/16” | 5.06 5.06 5.06 |
| 1-1/2” | 78 | 5/16” | 5.06 |
| 2-1/16” | 78 | 5/16” | 5.98 |
| 2-3/8” | 90 | 3/8” | 9.94 |
| 2-7/8” | 102 | 3/8” | 11.26 |
| 3-1/2” | 126 | 3/8” | 13.91 |
| 4” | 138 | 3/8” | 15.24 |
Besides, we can design and manufacture according to your specific requirement:
Contact:.
