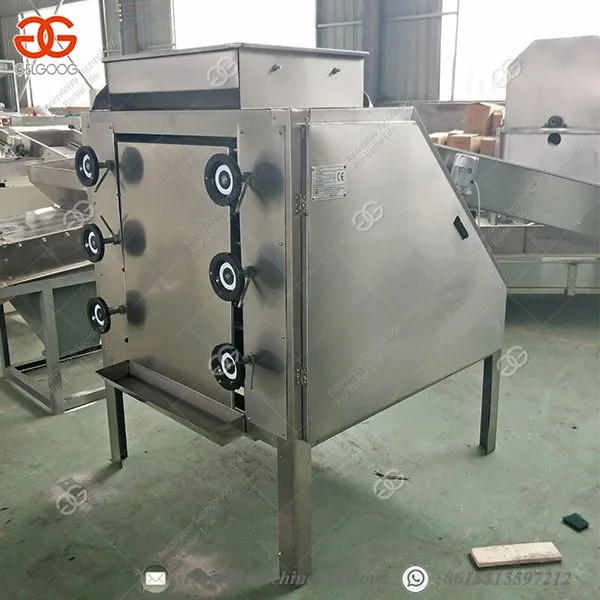

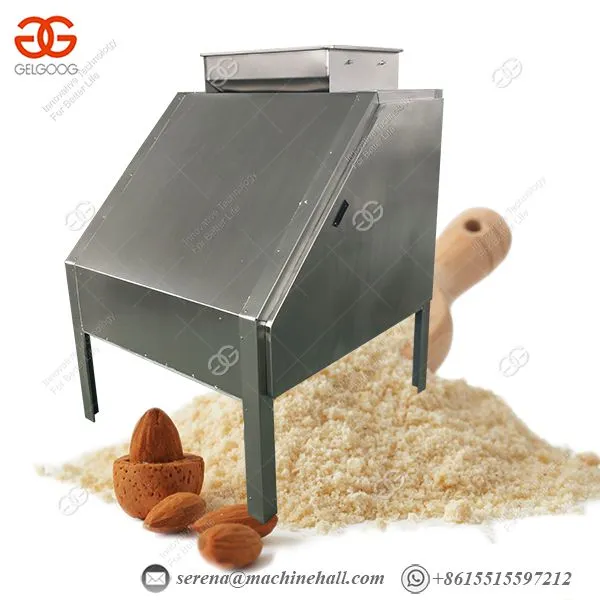

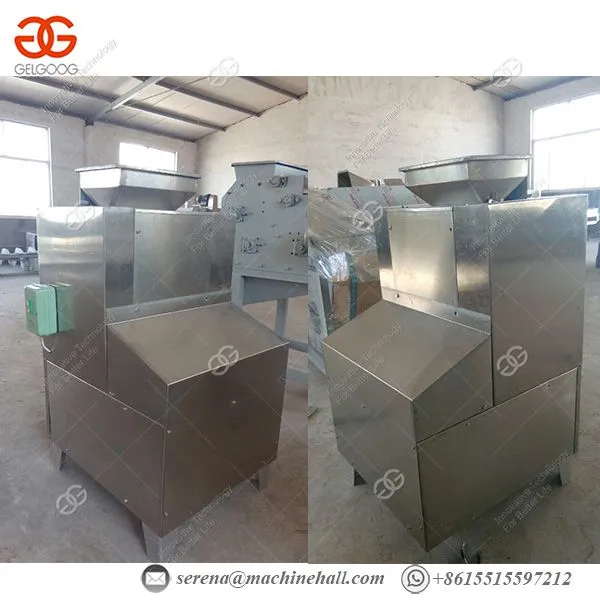

Cashew Grinding Machine Almonds , Hazelnuts Stainless Steel

wooden packing as export standard

Specification:

This machine is suitable for crushing oily materials (such as soybeans, peanuts, almonds, walnuts, hazelnuts, sesame, rapeseed, cocoa beans, etc.). It is a new product which has been improved many times on the old products of our company. It runs smoothly and has no noise. It can continuously crush peanut and sesame, with large output, absolutely no oil and non-sticking machine. Sesame powder is uniform and delicate, and there is no need to worry about oxidation in stock because of the amount of crushing can not keep up. It is especially suitable for large-scale crushing of peanut and sesame. The machine has filled a gap in the domestic sesame crushing market, and now achieves the advanced level at home and abroad.

Description:

This machine is designed on the basis of referring to similar products abroad and according to domestic conditions. The design concept of six rollers is more innovative and scientific. Its characteristics are as follows: This machine is mainly aimed at the requirements of food industry for materials, according to customer needs, rolls can be used agate, 95 porcelain, ordinary ceramics, high manganese steel, stainless steel and so on.

Usage: This machine is suitable for crushing greasy materials: sesame, peanut, almond, walnut, hazelnut, soybean, coffee bean, etc.

Advantage:

1. It has the characteristics of easy operation, high yield and oil-free. There are many models for users to choose. If the roller is removed, the final product is peanut granules.

2. fineness can reach 40-60 meters and is not greasy. If only the hob is used, the 3-6mm particles can be machined by the separating roller.

3. Special tool design for peanut grinder to make abrasive rapid prototyping.

4. multi function. Not only can we make peanut flour, but also we can make peanuts.

5. Simple operation, easy to use, high yield, nuts can be powdered and non greasy.

6. Made of stainless steel, hygienic and durable, easy to clean and maintain.

Working Principle:

Adjustment of discharging granularity: Wedge or gasket adjusting device is installed between two rollers, wedge adjusting bolt is installed. When adjusting bolt pulls wedge upward, wedge lifts movable roll wheel from fixed wheel, that is, the gap between two rollers becomes larger, discharging granularity becomes larger. When wedge is downward, movable roll wheel is under the action of compressing spring. The gap between two wheels becomes smaller and the particle size of discharge decreases. Gasket device adjusts the size of discharged material by increasing or decreasing the number or thickness of gaskets. When gaskets are increased, the gap between two rollers becomes larger, and when gaskets are reduced, the gap between two rollers becomes smaller, and the size of discharged material becomes smaller.
