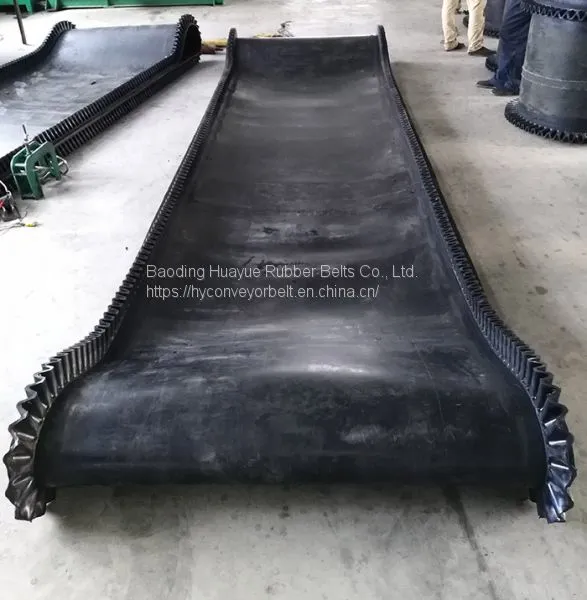

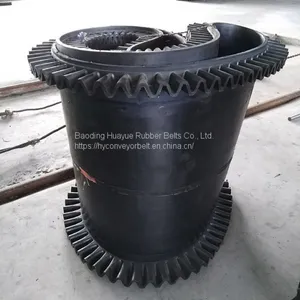

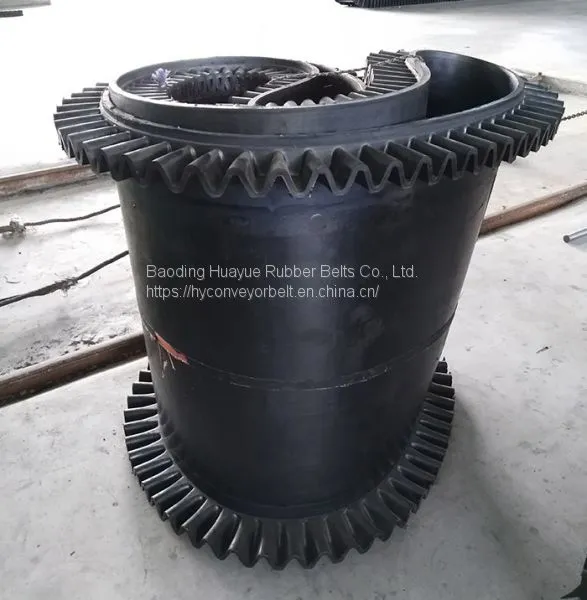

Sidewall Conveyor Belt, Sidewall Rubber Conveyor Belt, Steep Angle Sidewall Conveyor Belt Manufacturer
1. Applications
There are no cleats on sidewall conveyor belt which is suitable for horizontal, short-distance transportation. (no cleats at the moment)
2. Structure
It consists of two parts:
-Base belt: high tensile strength, high abrasion resistant , good transverse stiffness and good lengthways flexibility.
-Sidewall: high tensile strength, hot vulcanization with base belt, height up to 40-80mm, fabric reinforcement built in sidewall.
3. Sidewall conveyor belt specification
Belt width (mm) |
Sidewall height (mm) |
Cleat height (mm) |
Effective belt width (mm) |
400 |
60 |
- |
|
80 |
70 |
||
100 |
90 |
||
120 |
100 |
||
500 |
60 |
250 |
|
80 |
70 |
||
100 |
90 |
||
120 |
110 |
||
160 |
140 |
||
650 |
60 |
250, 300, 350 |
|
80 |
70 |
||
100 |
90 |
||
120 |
110 |
||
160 |
140 |
||
200 |
180 |
||
800 |
60 |
350, 410, 460 |
|
80 |
70 |
||
100 |
90 |
||
120 |
110 |
||
160 |
140 |
||
200 |
180 |
||
240 |
220 |
||
1000 |
60 |
460, 550, 640, 690, |
|
80 |
70 |
||
100 |
90 |
||
120 |
110 |
||
160 |
140 |
||
200 |
180 |
||
240 |
220 |
||
300 |
270 |
||
1200 |
60 |
460, 550, 640, 690 |
|
80 |
70 |
||
100 |
90 |
||
120 |
110 |
||
160 |
140 |
||
200 |
180 |
||
240 |
220 |
||
300 |
270 |
Huayue started business by producing rubber belts since 1982. It has been one of Solid Woven Convey or Belts manufacturers and is the major factory of fabric conveyor belt and Steel Cord Conveyor Belt in China.
