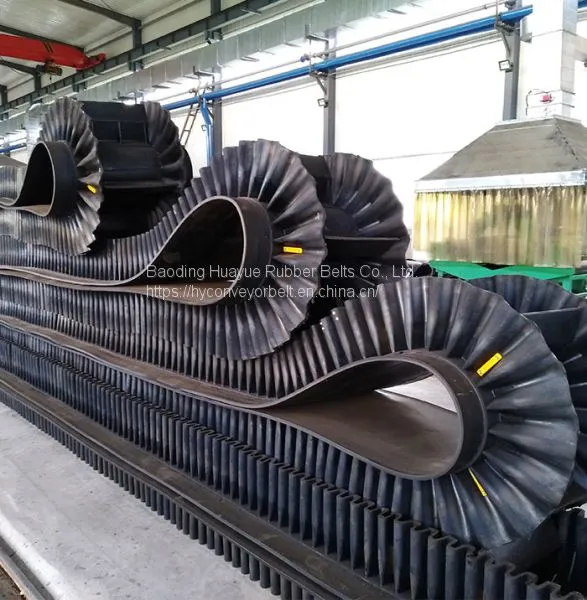

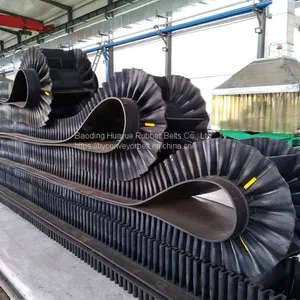

Steep Angle Sidewall Conveyor Belt, Nylon Conveyor Belt, Rubber Conveyor Belts Manufacturer
1. Applications
Steep Angle Sidewall Conveyor Belt is normally used for transportation at angle up to 90 degree. It also used together with belt conveyor for horizontal & short-distance transportation. (no cleats the moment)
The belt is twice vulcanized through base belt (trough degree≤0.03), sidewall, cleat (no cleat needed when horizontal transportation).
2. Structure

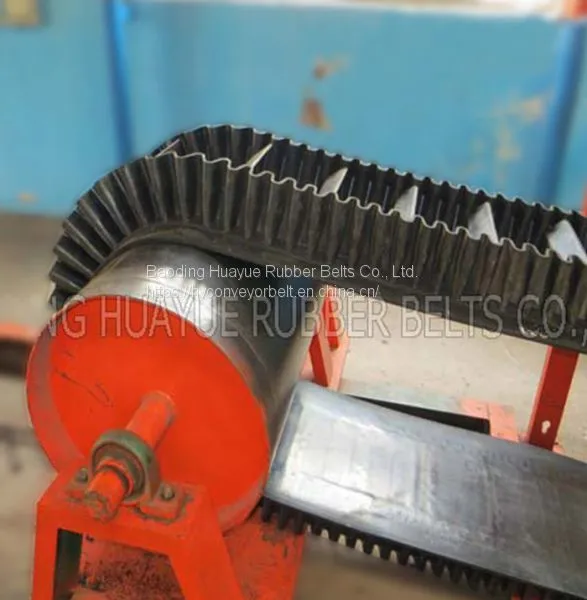

Sidewall conveyor belt consists of base belt, sidewalls and cleats. There are usually transverse steel wire reinforcement inside top & bottom covers of the base belt.
3. Sidewall conveyor belt specification
Belt width (mm) | Sidewall height (mm) | Cleat height (mm) | Effective belt width (mm) |
400 | 60 | - | |
80 | 70 | ||
100 | 90 | ||
120 | 100 | ||
500 | 60 | 250 | |
80 | 70 | ||
100 | 90 | ||
120 | 110 | ||
160 | 140 | ||
650 | 60 | 250, 300, 350 | |
80 | 70 | ||
100 | 90 | ||
120 | 110 | ||
160 | 140 | ||
200 | 180 | ||
800 | 60 | 350, 410, 460 | |
80 | 70 | ||
100 | 90 | ||
120 | 110 | ||
160 | 140 | ||
200 | 180 | ||
240 | 220 | ||
1000 | 60 | 460, 550, 640, 690, | |
80 | 70 | ||
100 | 90 | ||
120 | 110 | ||
160 | 140 | ||
200 | 180 | ||
240 | 220 | ||
300 | 270 | ||
1200 | 60 | 460, 550, 640, 690 | |
80 | 70 | ||
100 | 90 | ||
120 | 110 | ||
160 | 140 | ||
200 | 180 | ||
240 | 220 | ||
300 | 270 |
Rubber Belt, Fabric Conveyor Belt, Steel Cord Conveyor Belt, Solid Woven Conveyor Belt Manufacturer.
