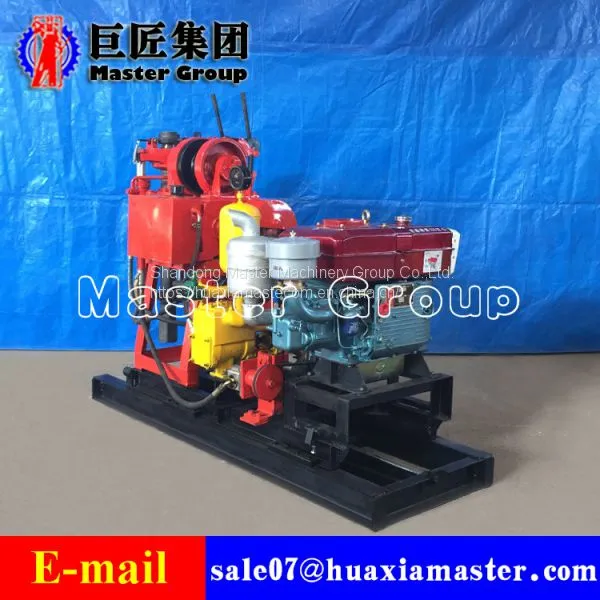

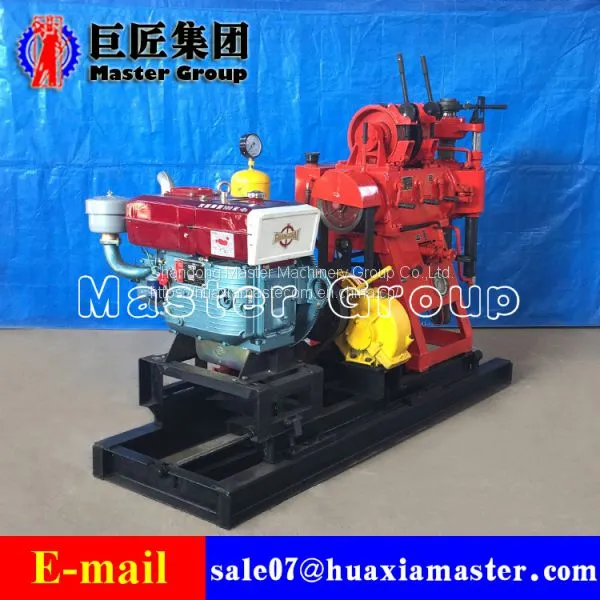

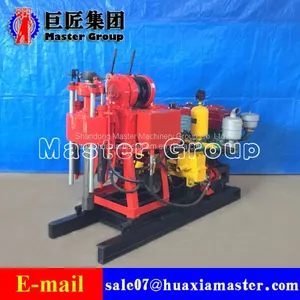

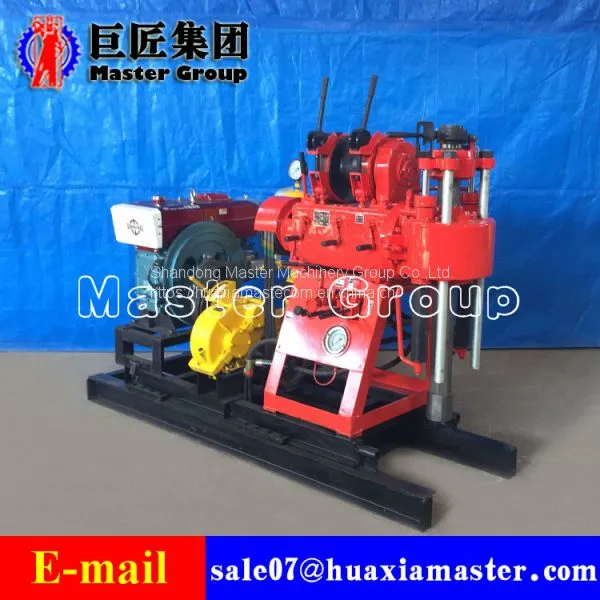

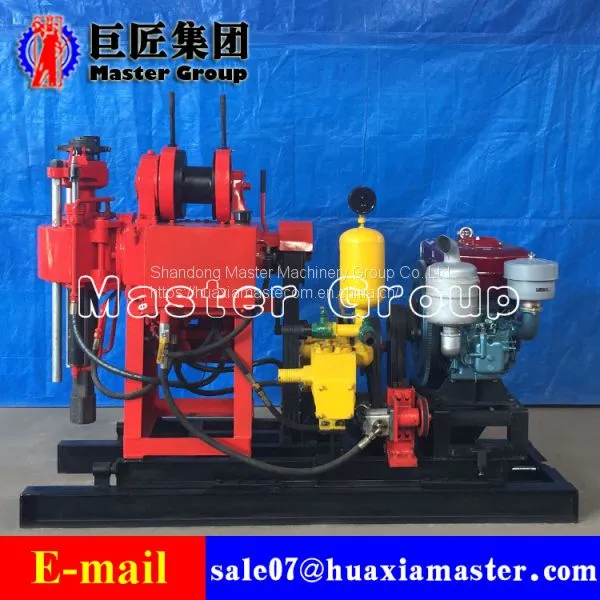

Help CenterXY-200 Hydraulic Core Drilling Rig Geophysical Exploration
Related Products
-
XY-3 Hydraulic Core Drilling Rig Core Drilling Machine PriceUS$ 4200 - 4700MOQ: 1 Set -
XYX-3 Wheeled Hydraulic Core Drilling Rig Wheels Portable Drilling MachineUS$ 4200 - 4700MOQ: 1 Set
-
XY-44A Hydraulic Drilling Rig Hydraulic Motor for Drilling RigUS$ 4200 - 4700MOQ: 1 Set
-
Hydraulic Water Well Drilling Rig XY-8 Hydraulic Drilling RigUS$ 4200 - 4700MOQ: 1 Set
-
KY-150 Hydraulic Drilling Rig For Metal Mine ExploitationUS$ 4200 - 4700MOQ: 1 Set
1. Applications of XY-200 core drilling rig
Geological survey, geophysical exploration, road and high-rise building foundation exploration, wells, blasting holes and other drilling projects.
2. Parameters of XY-200 core drilling machine
Maximum opening diameter |
400mm |
Maximum borehole depth |
200m |
Diameter of the end hole |
75mm |
Borehole dip angle |
90-75° |
Machine overall size |
2.75*0.95*1.60m |
Drill pipe diameter |
50mm |
Weight of drill rig diameter of drill pipe (without power) |
760kg |
A vertical scroll of painting | |
Shaft rotation speed |
71/142/310/20r/min |
Vertical axis stroke |
450mm |
Windlass | |
Maximum lifting weight of single rope |
2008kb |
Drum lifting speed |
17/35/75/160 rm/s |
Wire rope diameter: |
13mm |
Wire rope capacity |
35mm |
Width of sluice |
70mm |
Mud pump | |
Type: horizontal single cylinder double action |
flow：180L/min |
Maximum pressure |
1.5mpa |
Working pressure |
0.7mpa |
Inlet size |
50mm |
Outlet pipe diameter |
45mm |
Power | |
Diesel oil |
22hp |
Rated speed |
2200r/min |
Electric machinery |
15kw |
Rated speed |
1460r/min |
