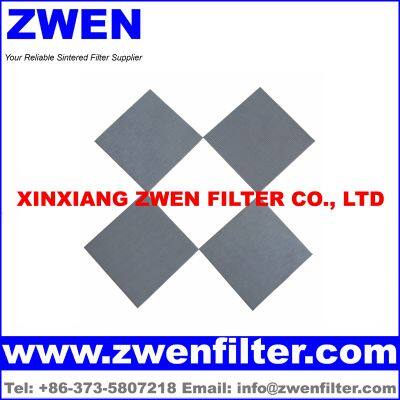

Sintered Mesh

Sintered Mesh Technical Parameter

Raw Material: SS 316L, SS 304

Filter Rating Range: 0.5 Micron ~ 2000 Microns

Filter Efficiency: > 99.99 %

Number of Layers: 2 Layers ~ 20 Layers

Operation Temperature: ≤ 816 ℃

Length: ≤ 500 mm

Width: ≤ 500 mm

Thickness: 0.5 mm,1 mm,1.5 mm,2 mm,3 mm,5 mm or others

Sintered Mesh Feature

1. Sintered mesh is good for backwash

2. Sintered mesh has uniform pore size distribution

3. Sintered mesh has high mechanical strength

4. High temperature resistance

5. High filter efficiency

6. High corrosion resistance

7. Long service life

8. Easy to be welded, fabricated

9. Easy to be cutted into different shapes, such as circular, sheet

10. Easy to be made into different style, such as tube style, conical style

Application

Polymers filtration, high temperature liquid filtration, high temperature gases filtration, steam filtration, catalysts filtration, water filtration, beverages filtration

ZWEN Quality Guarantee

1. We can provide raw material test report

2. We can provide filter efficiency test report

3. We will pay 2 times price for clients if SGS test report shows bad quality (we only accept SGS test report)
