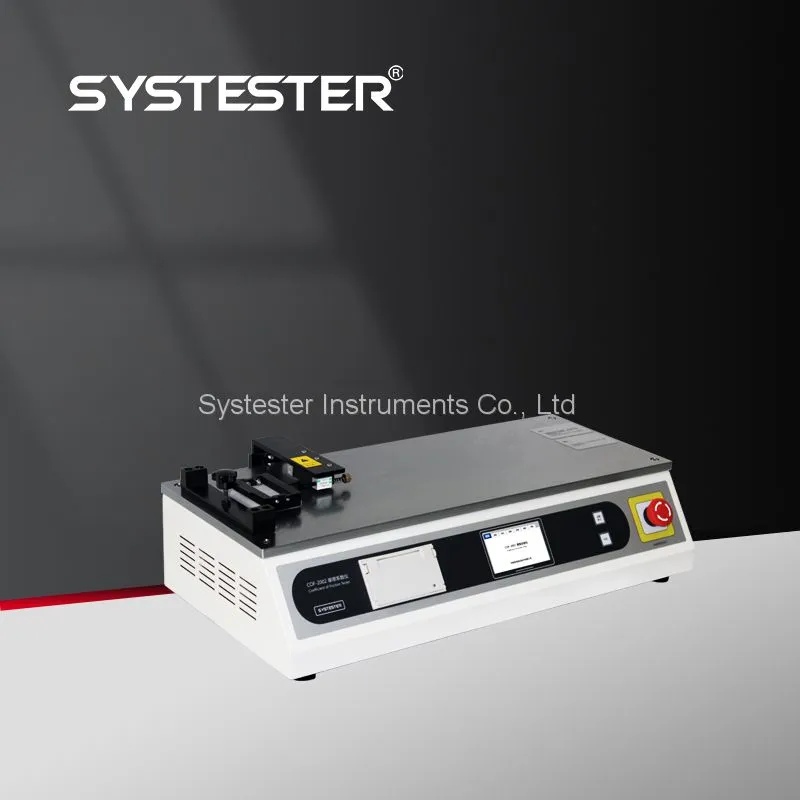

Coefficient Friction Tester COF Testing Equipment

Application

Applies to plastic films, laminated films, extrusion films, foils, sheets, rubber, paper, paperboard, wood, brake pad, tyres, windshield wiper, conveyor belt, hare, metal, carbon rod, catheter, artificial skin etc testing of static coefficient and dynamic coefficient, especially used in food & pharmaceutical industries, quality inspection departments as well as research and development institutions.

Features

1: Own unique technology and 2 counts of software copyright registration.

2: GB test mode. (ISO test mode)

3: Highly accurate load cell, ac-servo drive.

4: Test speed can be set freely in the range.

5: Touch screen operation.

6: Real color TFT LCD display.

7: Wide range sample thickness test available.

8: Sled mass freely input.

9: Micro-printer built-in.

10: Overload, limit position protection.

11: Low power consumption and silence running.

12: DB9 RS232 communication port.

13: COFlex professional computer software support.

14: Group test, auto multiple curves display and auto statistic calculation.

15: DSM system is optional(Laboratory Management Information System), easy to manage test data.

Technical Indexes

1: Load cell range: 5N, 10N, 20N, 30N (Optional)

2: Accuracy: 0.05%FS MAX.

3: Max travel distance: 400mm.

4: Displacement accuracy: better than 0.1mm.

5: Sled mass: 200g (Personal customization available)

6: Sled area: 63mm X 63mm. (Personal customization available)

7: Test speed: 1 ~ 300mm/min.

8: Sample thickness: 30mm. (optional)

9: Power supply: AC 220V 50Hz. (optional)

10: Power consumption: 25W.

11: Dimension: 650mm(L) 340mm(B)  210mm(H)

12: Net weight: 42kg.
