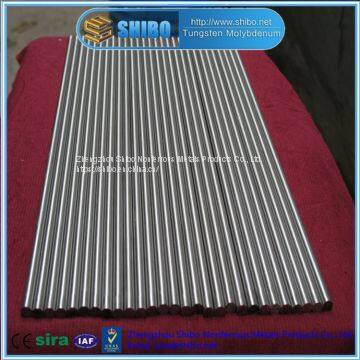

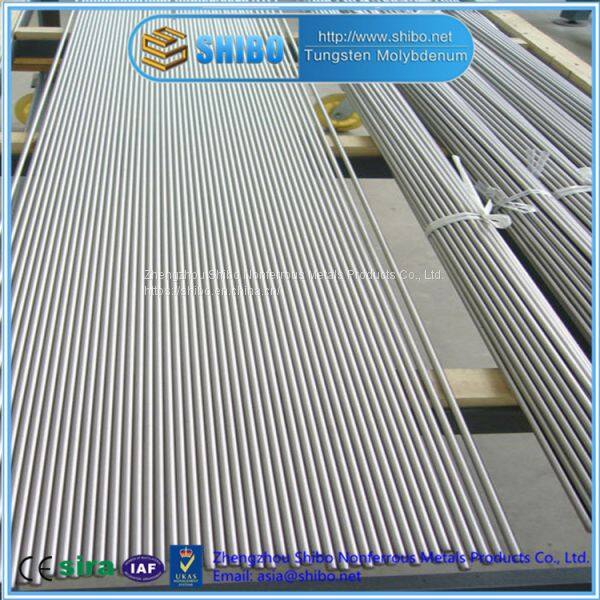

High Quality TZM Molybdenum Rod, TZM Alloy Bar
1. Composition: Ti 0.4-0.55%, Zr 0.06-0.08%, Mo 99.2% to 99.5%, C 0.01-0.04%
2. Density: 10.2g/cm3
Dimension: By users' drawing
Appearance: It’s black brown, and will turn to a silver metallic luster after alkali-washing
Application: Used in high-temperature vacuum and hydrogen-atmosphere furnace construction.
Chemical Composition:
Important Element Content (%) |
Other Element Content (%) |
||||||
C |
Ti |
Zr |
Fe |
Si |
Ni |
O2 |
N2 |
0.01-0.04 |
0.40-0.55 |
0.07-0.12 |
0.02 |
0.01 |
0.01 |
0.003 |
0.002 |
TZM offers twice the strength of pure molybdenum at temperatures over 1300°C. The re-crystallization temperature of TZM is approximately 250°C higher than molybdenum and it offers better weld ability.
TZM Molybdenum is an alloy of 0.50% Titanium, 0.08% Zirconium and 0.02% Carbon with the balance Molybdenum. TZM Molybdenum is manufactured by either P/M or Arc Cast technologies and is of great utility due to its high strength/high temperature applications, especially above 2000'F.
TZM Molybdenum has a higher re-crystallization temperature, higher strength, hardness and good ductility at room and elevated temperatures than unalloyed Molybdenum. TZM offers twice the strength of pure molybdenum at temperatures over 1300'C. The re-crystallization temperature of TZM is approximately 250'C higher than molybdenum and it offers better weld ability. In addition, TZM exhibits good thermal conductivity, low vapor pressure, and good corrosion resistance and is machinable.
TZM Molybdenum costs approximately 25% more than pure molybdenum and costs only about 5-10% more to machine. For high strength applications such as rocket nozzles, furnace structural components, and forging dies, it can be well worth the cost differential.
TZM is available in sheet and rod form in basically the same size range as molybdenum with the exception of thin foil. We’re is experienced in the fabrication of TZM products.
About Us
We're professional manufacturer of molybdenum and tungsten products, MoSi2 and SiC heating element, laboratory furnace. Our products are exported to USA, Europe, Middle East and Southeast Asia, etc. We're a factory with ISO quality system certification. We can produce as per customer's request and provide products with good quality and best price!
Our products include:
Molybdenum Product |
Molybdenum Sheet/Plate/Rod/Bar/Electrode/Wire |
Molybdenum Crucible/Tube/Boat/Disc/Nut | |
Molybdenum Special Shape Product | |
Tungsten Product |
Tungsten Sheet/Plate/Rod/Bar/Wire |
Tungsten Crucible/Tungsten heat shield | |
Tungsten Special Shape Product | |
Alloy Product |
TZM Alloy/Mo-La Alloy |
Tungsten Copper Alloy | |
MoSi2 heating element |
U, L, W, Special shape |
SiC heating element |
U, W, ED, Dumbbell, SC, SCR shape |
Laboratory furnace |
Muffle furnace, Tube furnace Atmosphere furnace, Vacuum Furnace |
Accessories |
Holders, Straps, Alumina tube |
Why choose Shibo?
1. More than 20 years’ manufacturing experience, leading factory
2. Reasonable factory direct wholesale prices
3. Steady and top quality, timely delivery, reliable after-sale service
Guaranteed purity:
We produce molybdenum products all by ourselves – from the metal oxide right through to the finished products. As our input material, we only use the purest molybdenum oxide. This ensures that you can benefit from a very high level of material purity.
